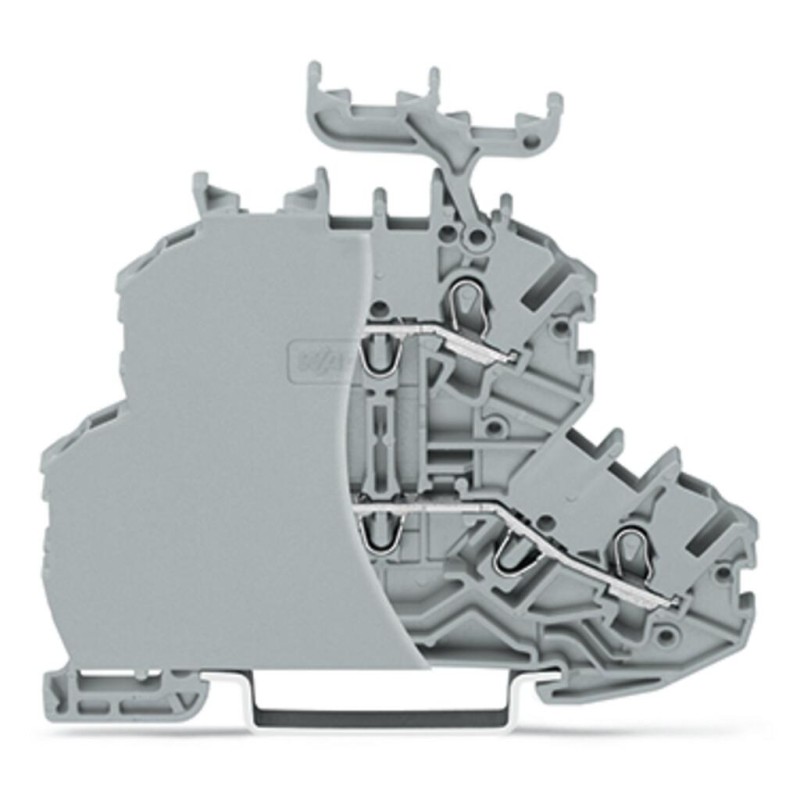

2000-2231/099-000 Double-deck terminal block;Through/through terminal block;with end plate;gray

Name: 2000-2231/099-000 Double-deck terminal block;Through/through terminal block;with end plate;gray
Brand: Wago
Availability: OutOfStock

New

Pre-Order

Date Available: 19/08/2026

Article: 2000-2231/099-000

Brand: Wago

0.00 грн.

Found it cheaper?

Short description

800 V thanks to integrated end plate ...

Description 2000-2231/099-000 Double-deck terminal block;Through/through terminal block;with end plate;gray

800 V thanks to integrated end plate

Main attributes 2000-2231/099-000 Double-deck terminal block;Through/through terminal block;with end plate;gray

Connection 1

Actuation type Operating tool

Connectable conductor materials Copper

Connection technology Push-in CAGE CLAMP^®

Fine-stranded conductor 0.14 … 1.5 mm² / 24 … 16 AWG

Fine-stranded conductor; with ferrule; push-in termination 0.5 … 0.75 mm² / 20 … 18 AWG

Fine-stranded conductor; with insulated ferrule 0.14 … 0.75 mm² / 24 … 18 AWG

Nominal cross-section 1 mm²

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Number of connection points 2

Solid conductor 0.14 … 1.5 mm² / 24 … 16 AWG

Solid conductor; push-in termination 0.5 … 1.5 mm² / 20 … 16 AWG

Strip length 9 … 11 mm

Wiring direction Front-entry wiring

Connection 2

Number of connection points 2 2

Connection data

Clamping units 4

Number of jumper slots 4

Number of levels 2

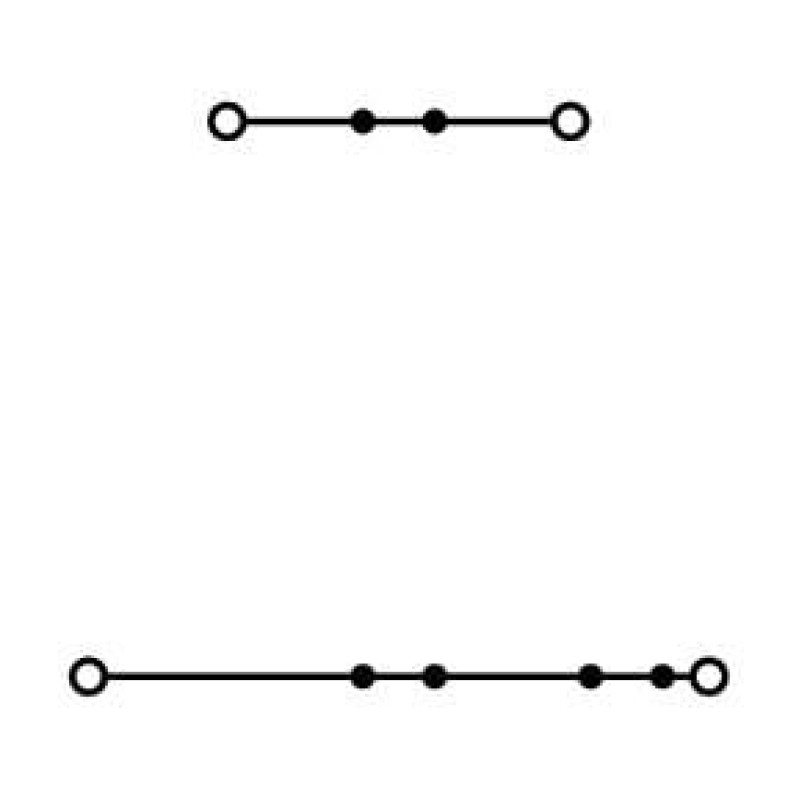

Total number of potentials 2

Environmental requirements

Continuous operating temperature -60 … +105 °C

Processing temperature -35 … +85 °C

Environmental Testing (Environmental Conditions)

Acceleration 5g (highest test level used for all axes)

Extended test scope: Monitoring for contact faults/interruptions Passed

Extended test scope: Voltage drop measurement before and after each axis Passed

Frequency f₁= 5 Hz to f₂= 150 Hz

Function test with noise-like vibration Test passed according to Section 8 of the standard

Monitoring for contact faults/interruptions Passed

Number of shocks per axis 3 pos. und 3 neg.

Shock duration 30 ms

Shock form Half sine

Shock test Test passed according to Section 10 of the standard

Simulated service life test through increased levels of noise-like vibration Test passed according to Section 9 of the standard

Spectrum/Installation location Service life test, Category 1, Class A/B

Test directions X, Y and Z axes

Test duration per axis 5 h

Test procedure (Railway applications – Roll DIN EN 61373 (VDE 0115-0106):2011-04

Test specification Railway applications – Rolling stock – Electronic equipment DIN EN 50155 (VDE 0115-200):2022-06

Vibration and shock stress for rolling stock equipment Passed

Voltage drop measurement before and after each axis Passed

Material data

Color gray

Fire load 0.239 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 9.8 g

Mechanical data

Marking level Center/side marking

Mounting type DIN-35 rail

Potential marking L/L

Physical data

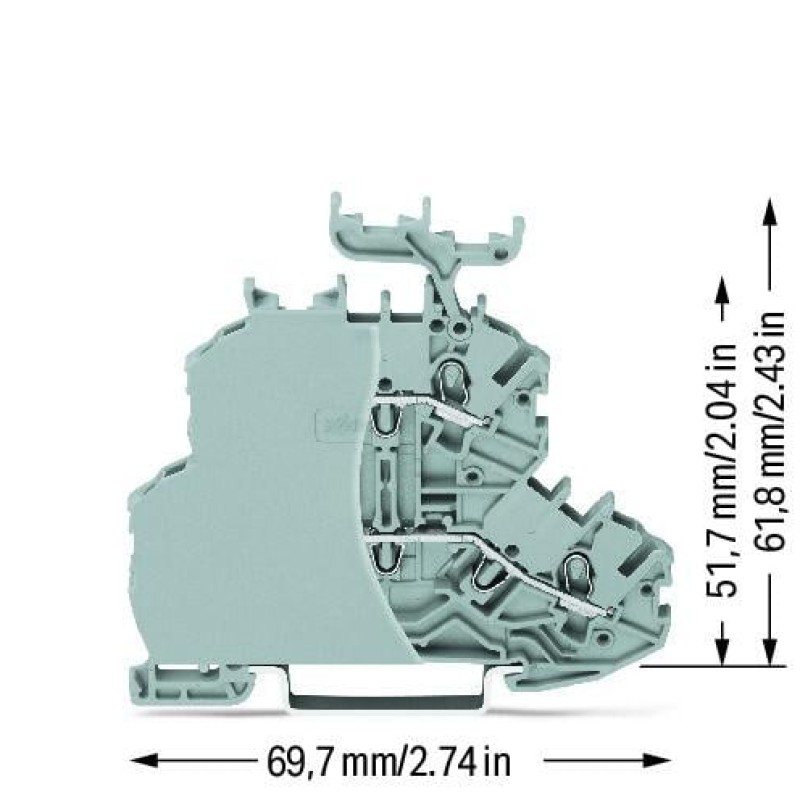

Depth from upper-edge of DIN-rail 61.8 mm

Height 69.7 mm

Width 4.2 mm
