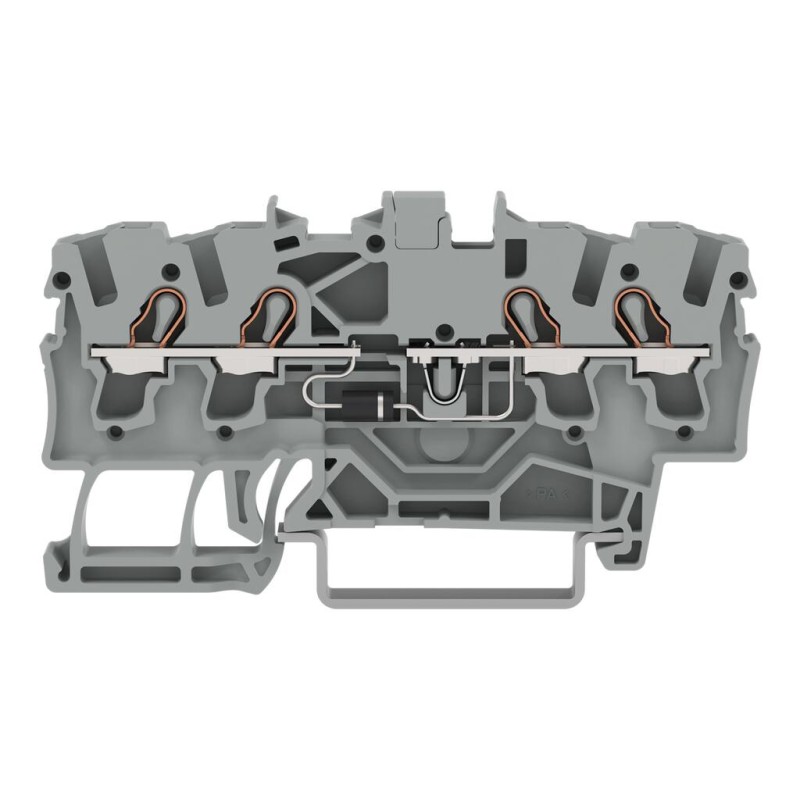

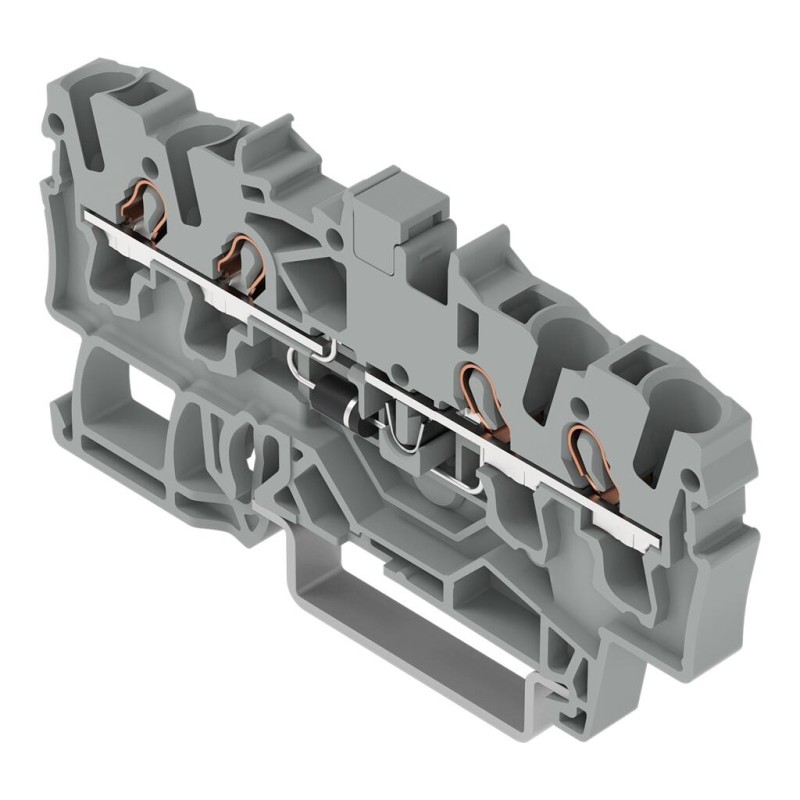

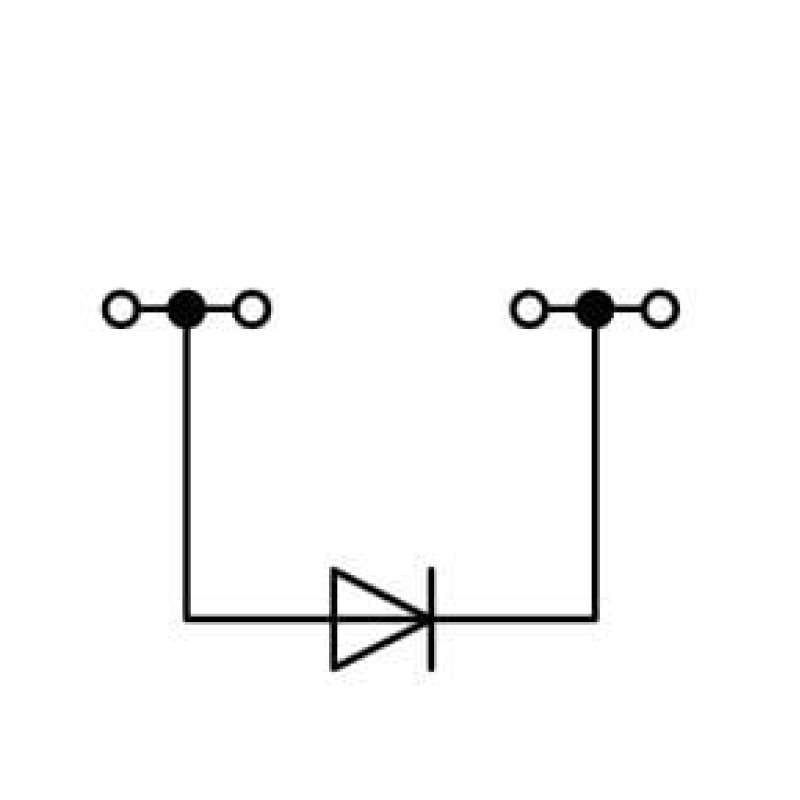

2002-1411/1000-410 Component terminal block;4-conductor;with diode 1N4007;gray

Name: 2002-1411/1000-410 Component terminal block;4-conductor;with diode 1N4007;gray
Brand: Wago
Price: 167.59 UAH
Availability: InStock

New

In stock

Article: 2002-1411/1000-410

Brand: Wago

167.59 грн.

Found it cheaper?

Short description

Description 2002-1411/1000-410 Component terminal block;4-conductor;with diode 1N4007;gray

Our component terminal block with diode (item number 2002-1411/1000-410) is the ideal way to connect conductors quickly and securely. Conductors should only be connected to this component terminal block with diode if their strip length is between 10 and 12 mm . This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. This component terminal block with diode is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm².

Main attributes 2002-1411/1000-410 Component terminal block;4-conductor;with diode 1N4007;gray

Connection 1

Actuation type Operating tool

Connectable conductor materials Copper

Connection technology Push-in CAGE CLAMP^®

Fine-stranded conductor 0.25 … 4 mm² / 22 … 12 AWG

Fine-stranded conductor; with ferrule; push-in termination 1 … 2.5 mm² / 18 … 14 AWG

Fine-stranded conductor; with insulated ferrule 0.25 … 2.5 mm² / 22 … 14 AWG

Nominal cross-section 2.5 mm²

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Solid conductor 0.25 … 4 mm² / 22 … 12 AWG

Solid conductor; push-in termination 0.75 … 4 mm² / 18 … 12 AWG

Strip length 10 … 12 mm

Wiring direction Front-entry wiring

Connection data

Clamping units 4

Number of jumper slots 1

Number of levels 1

Total number of potentials 1

Environmental requirements

Continuous operating temperature -60 … +105 °C

Processing temperature -35 … +85 °C

Environmental Testing (Environmental Conditions)

Acceleration 5g (highest test level used for all axes)

Extended test scope: Monitoring for contact faults/interruptions Passed

Extended test scope: Voltage drop measurement before and after each axis Passed

Frequency f₁= 5 Hz to f₂= 150 Hz

Function test with noise-like vibration Test passed according to Section 8 of the standard

Monitoring for contact faults/interruptions Passed

Number of shocks per axis 3 pos. und 3 neg.

Shock duration 30 ms

Shock form Half sine

Shock test Test passed according to Section 10 of the standard

Simulated service life test through increased levels of noise-like vibration Test passed according to Section 9 of the standard

Spectrum/Installation location Service life test, Category 1, Class A/B

Test directions X, Y and Z axes

Test duration per axis 5 h

Test procedure (Railway applications – Roll DIN EN 61373 (VDE 0115-0106):2011-04

Test specification Railway applications – Rolling stock – Electronic equipment DIN EN 50155 (VDE 0115-200):2022-06

Vibration and shock stress for rolling stock equipment Passed

Voltage drop measurement before and after each axis Passed

Material data

Color gray

Fire load 0.172 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 7.7 g

Mechanical data

Marking level Center/side marking

Mounting type DIN-35 rail

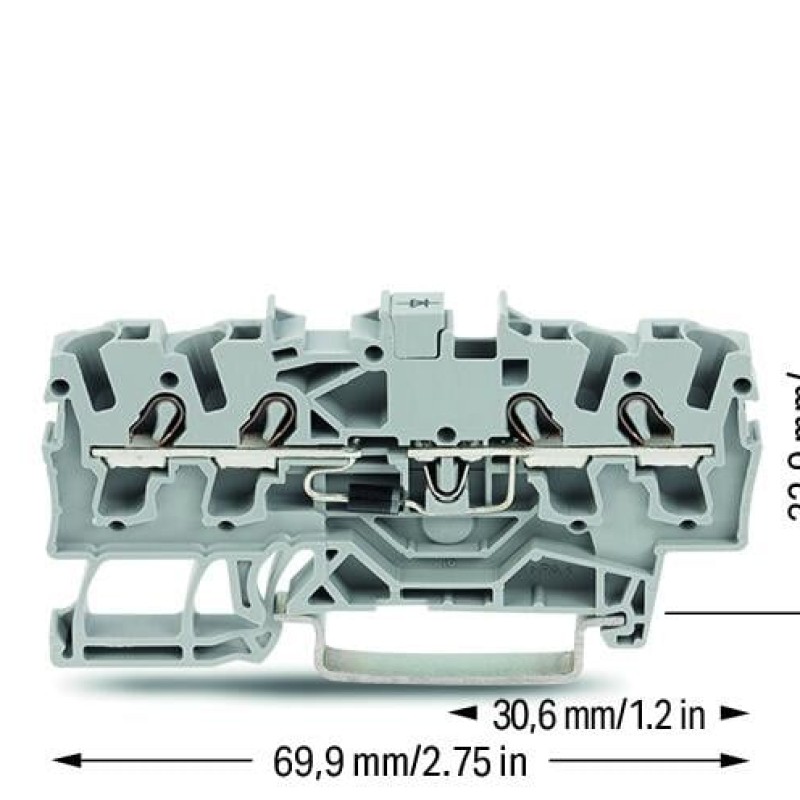

Physical data

Depth from upper-edge of DIN-rail 32.9 mm

Height 69.9 mm

Width 5.2 mm
