Short description

Description 2002-1707 3-conductor ground terminal block;2.5 mm²;suitable for Ex e II applications;green-yellow

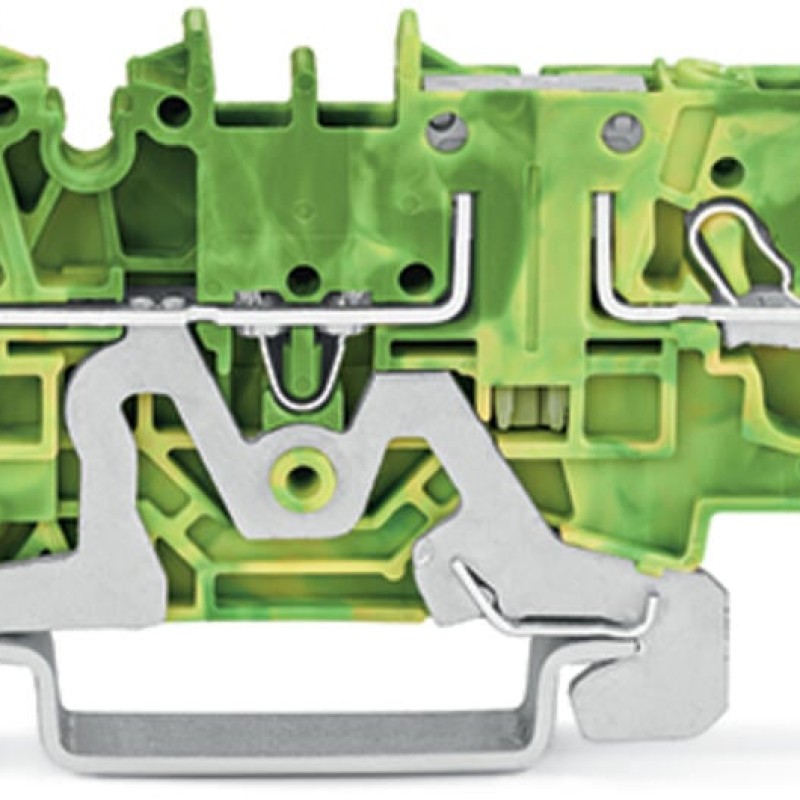

Connect conductors quickly and easily with this ground terminal block (item number 2002-1707). Conductors should only be connected to this ground terminal block if their strip length is between 10 and 12 mm . This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Depending on the type of conductor, this ground terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm².

This product is designed for specific Ex applications (please refer to the product datasheet).

Main attributes 2002-1707 3-conductor ground terminal block;2.5 mm²;suitable for Ex e II applications;green-yellow

Connection 1

Actuation type Operating tool

Connectable conductor materials Copper

Connection technology Push-in CAGE CLAMP^®

Fine-stranded conductor 0.25 … 4 mm² / 22 … 12 AWG

Fine-stranded conductor; with ferrule; push-in termination 1 … 2.5 mm² / 18 … 14 AWG

Fine-stranded conductor; with insulated ferrule 0.25 … 2.5 mm² / 22 … 14 AWG

Nominal cross-section 2.5 mm²

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Solid conductor 0.25 … 4 mm² / 22 … 12 AWG

Solid conductor; push-in termination 0.75 … 4 mm² / 18 … 12 AWG

Strip length 10 … 12 mm

Wiring direction Front-entry wiring

Connection data

Clamping units 3

Number of jumper slots 2

Number of levels 1

Total number of potentials 1

Environmental requirements

Continuous operating temperature -60 … +105 °C

Processing temperature -35 … +85 °C

Environmental Testing (Environmental Conditions)

Acceleration 5g (highest test level used for all axes)

Extended test scope: Monitoring for contact faults/interruptions Passed

Extended test scope: Voltage drop measurement before and after each axis Passed

Frequency f₁= 5 Hz to f₂= 150 Hz

Function test with noise-like vibration Test passed according to Section 8 of the standard

Monitoring for contact faults/interruptions Passed

Number of shocks per axis 3 pos. und 3 neg.

Shock duration 30 ms

Shock form Half sine

Shock test Test passed according to Section 10 of the standard

Simulated service life test through increased levels of noise-like vibration Test passed according to Section 9 of the standard

Spectrum/Installation location Service life test, Category 1, Class A/B

Test directions X, Y and Z axes

Test duration per axis 5 h

Test procedure (Railway applications – Roll DIN EN 61373 (VDE 0115-0106):2011-04

Test specification Railway applications – Rolling stock – Electronic equipment DIN EN 50155 (VDE 0115-200):2022-06

Vibration and shock stress for rolling stock equipment Passed

Voltage drop measurement before and after each axis Passed

Material data

Color green-yellow

Fire load 0.164 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 11.4 g

Mechanical data

Marking level Center/side marking

Mounting type DIN-35 rail

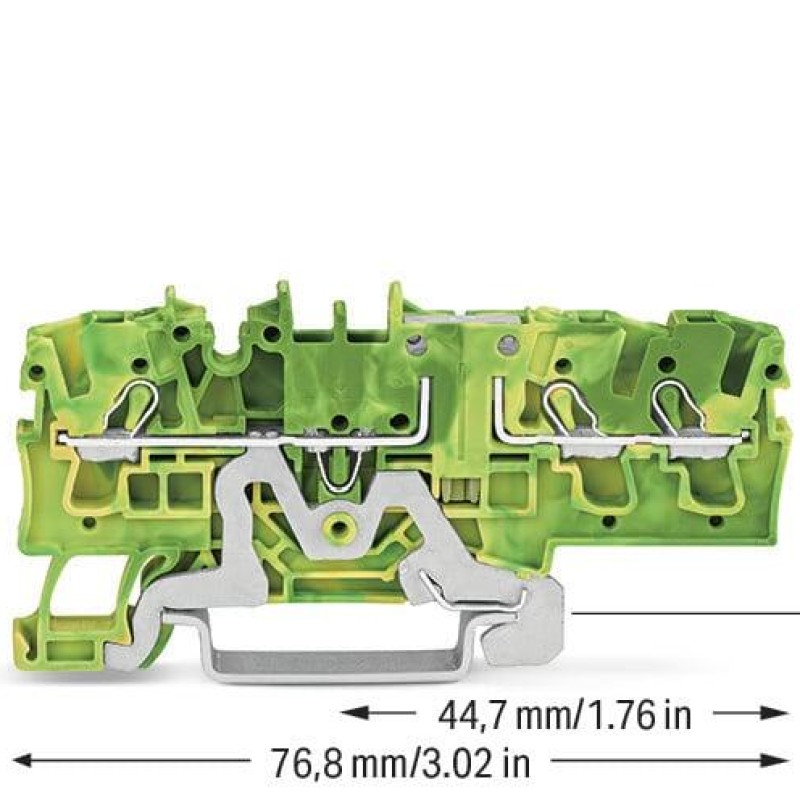

Physical data

Depth from upper-edge of DIN-rail 32.9 mm

Height 76.8 mm

Width 5.2 mm
