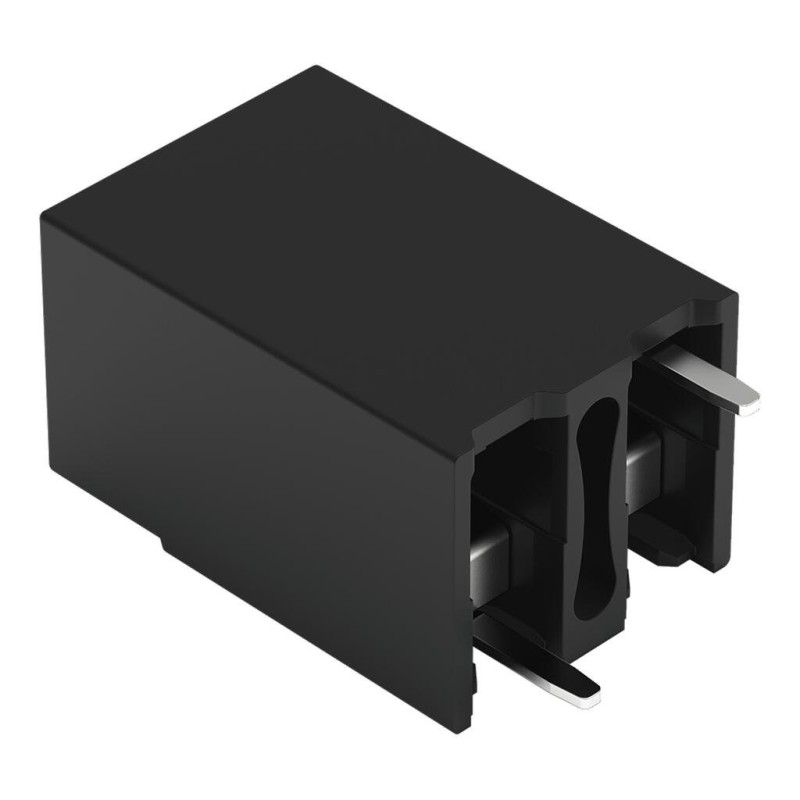

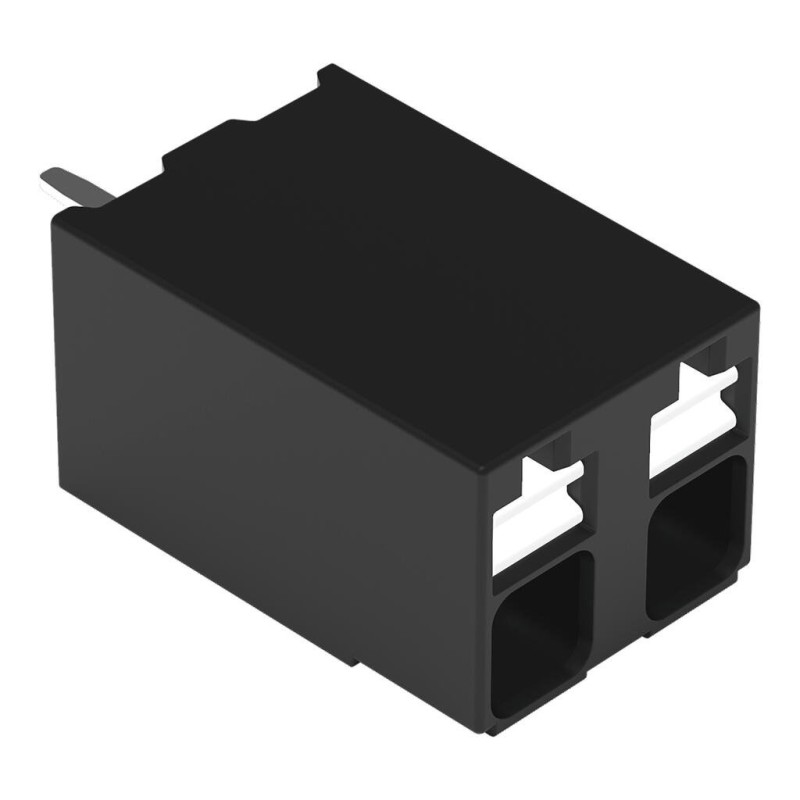

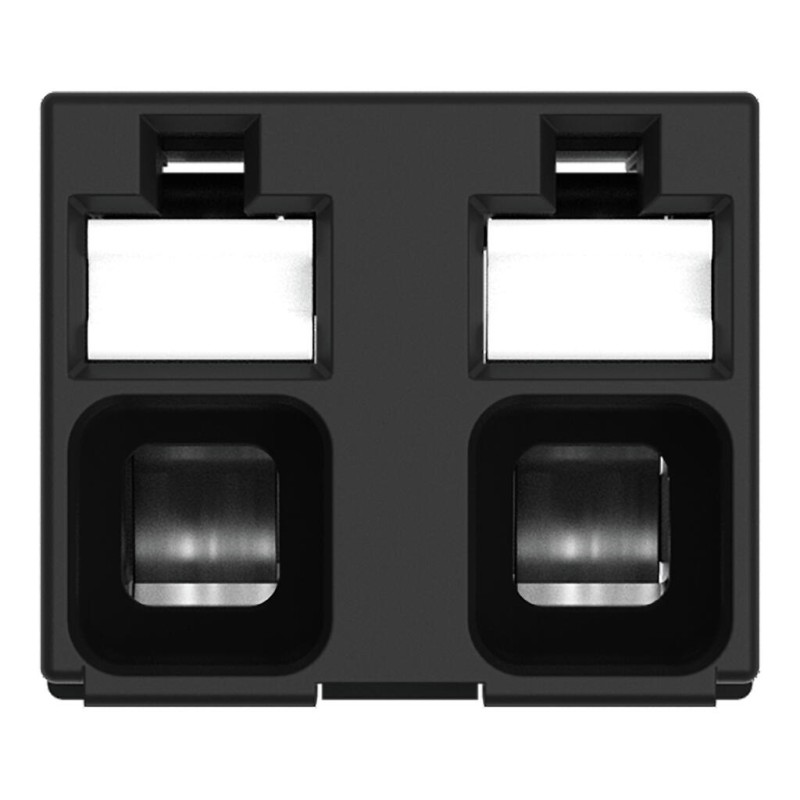

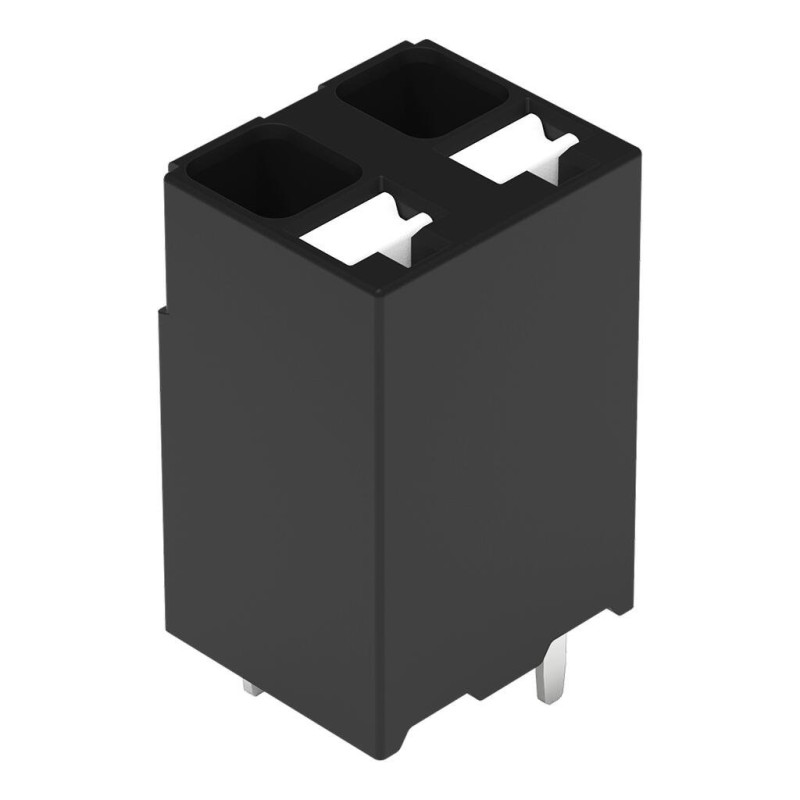

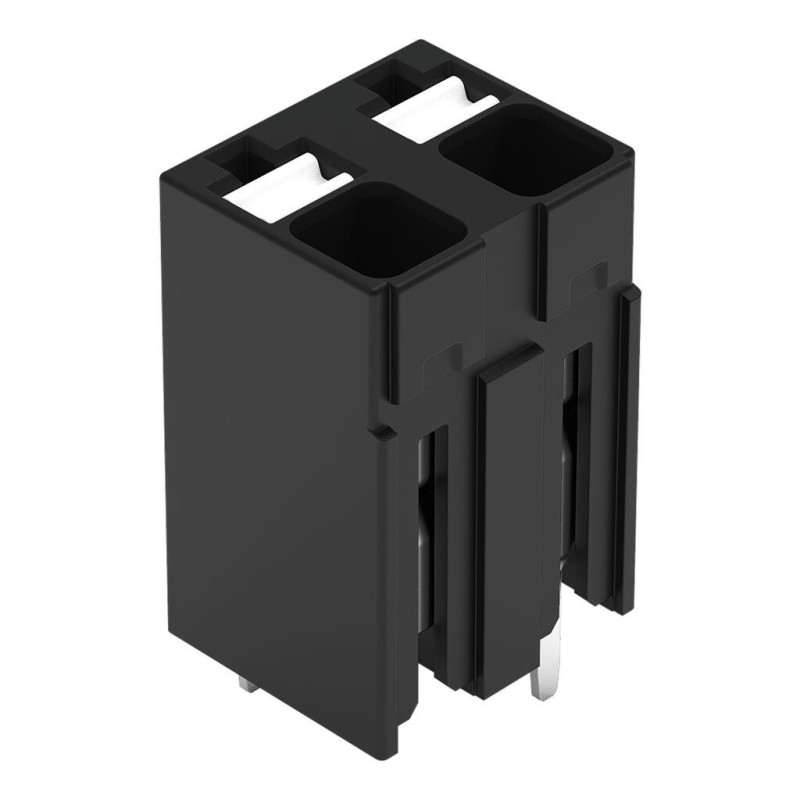

Description 2086-3122/300-000 THR PCB terminal block;push-button;1.5 mm²;black
- Ideal for compact device connection, panel feedthrough and tight spaces
- Push-in CAGE CLAMP® termination of solid and ferruled fine-stranded conductors
- SMD and THR variants available
- Push-button moves in direction of conductor connection
- Conductor connection and mating direction parallel or perpendicular to the PCB
- Optionally available with in-line or staggered pins (3.5 and 5 mm pin spacing)
Main attributes 2086-3122/300-000 THR PCB terminal block;push-button;1.5 mm²;black
Connection 1
Actuation type
Push-button
Conductor connection direction to PCB
90 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.14 … 1.5 mm² / 26 … 14 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 0.75 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Pole number
2
Solid conductor
0.14 … 1.5 mm² / 28 … 16 AWG
Strip length
8 … 9 mm
Connection data
Clamping units
2
Number of connection types
1
Number of levels
1
Total number of potentials
2
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Limit temperature range
-60 … +105 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
black
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.036 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyphthalamide (PPA GF)
Material group
I
MSL per J-STD 020D
1
Weight
1.1 g
PCB contact
Number of solder pins per potential
1
PCB contact
THR
Solder pin arrangement
over the entire terminal strip (staggered)

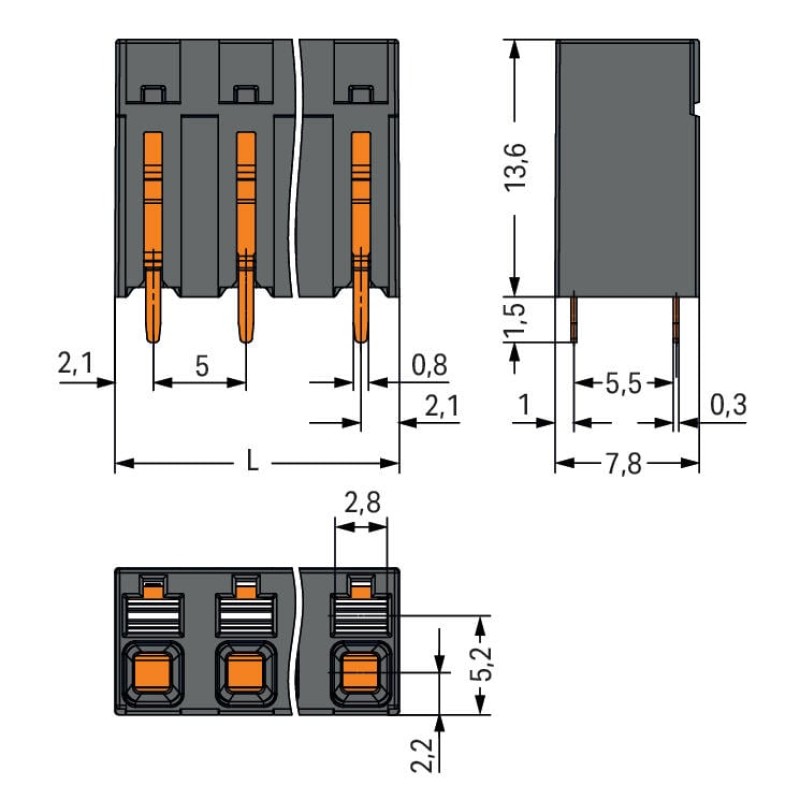

Physical data
Depth
7.8 mm
Height
15.1 mm
Height from the surface
13.6 mm
Pin spacing
5 mm
Plated through-hole diameter (THR)
1 (+0.1) mm
Solder pin dimensions
0.3 x 0.8 mm
Solder pin length
1.5 mm
Width
9.2 mm
