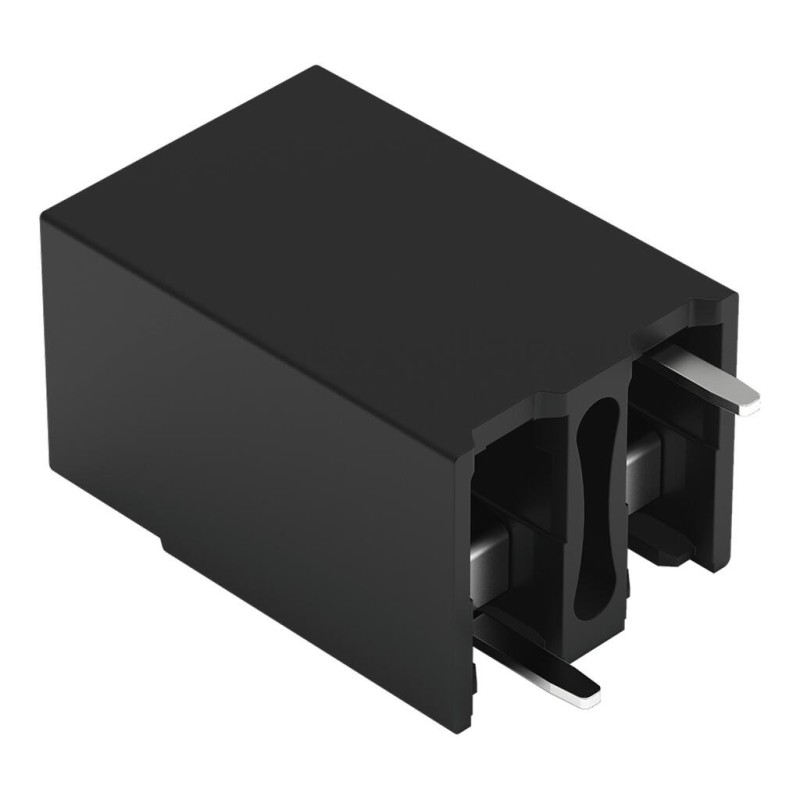

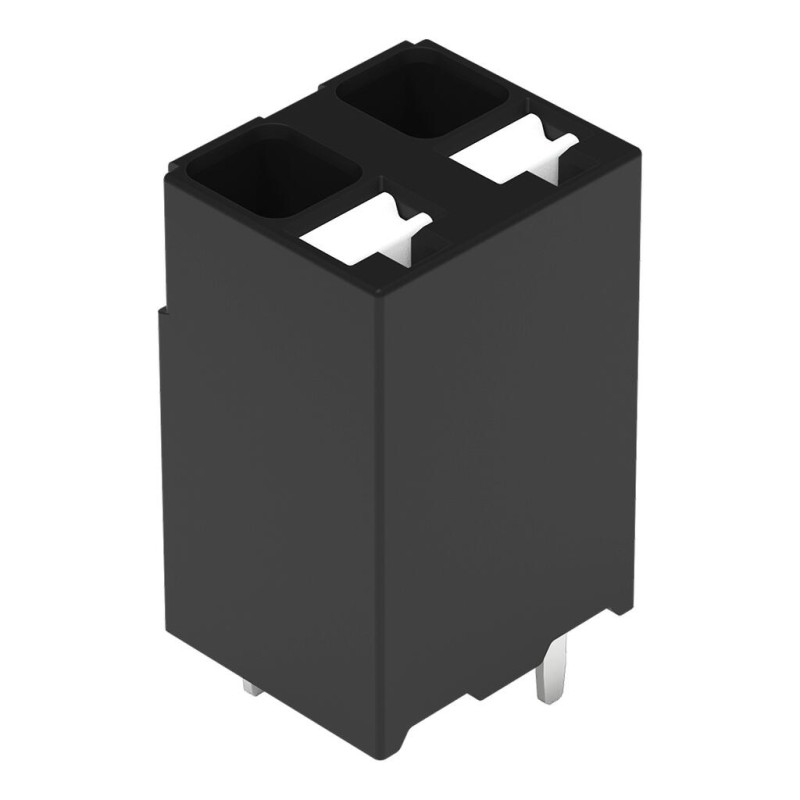

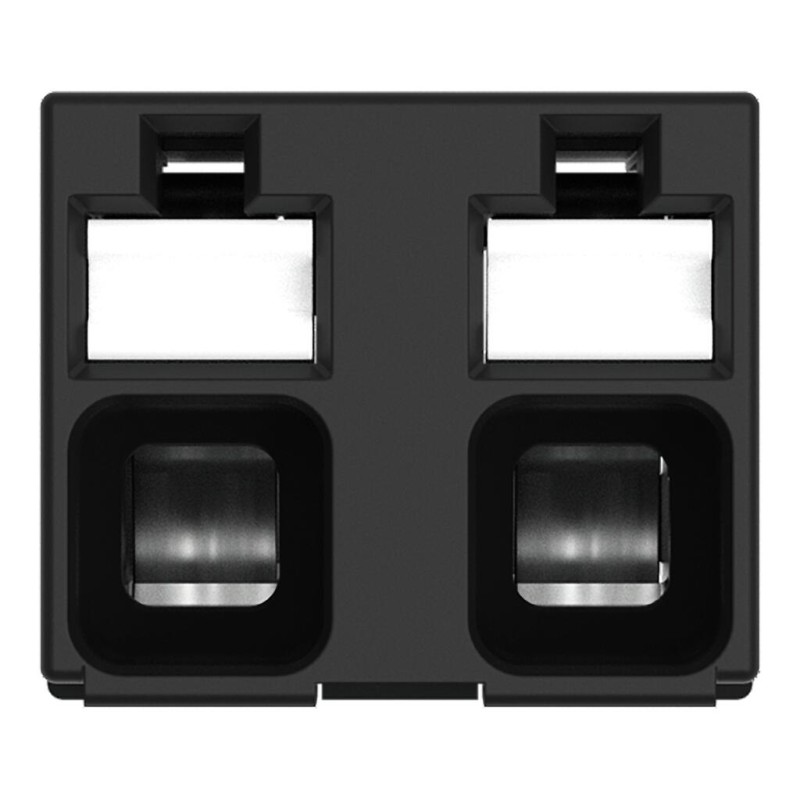

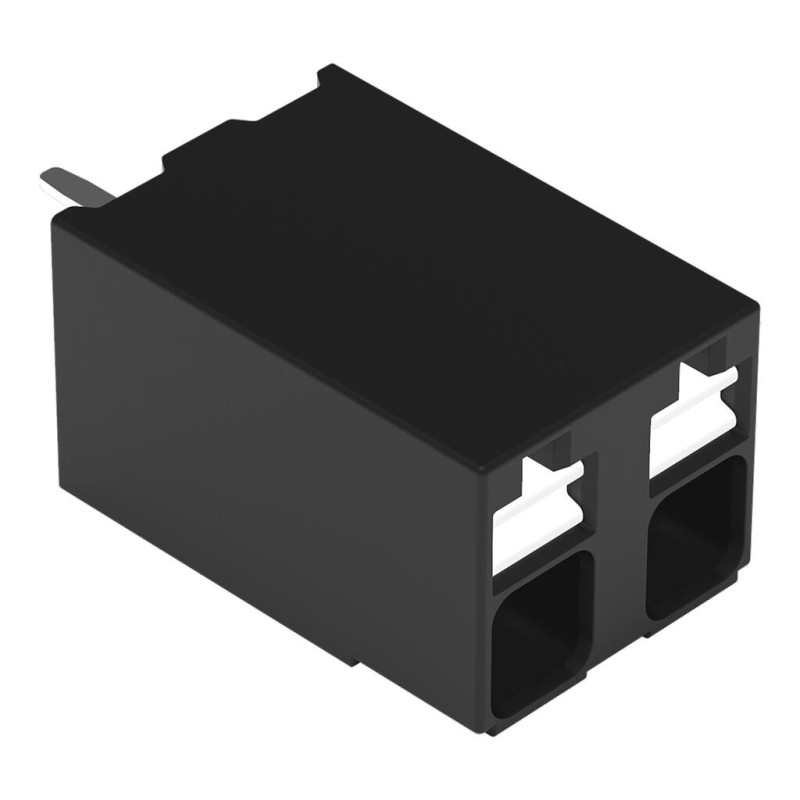

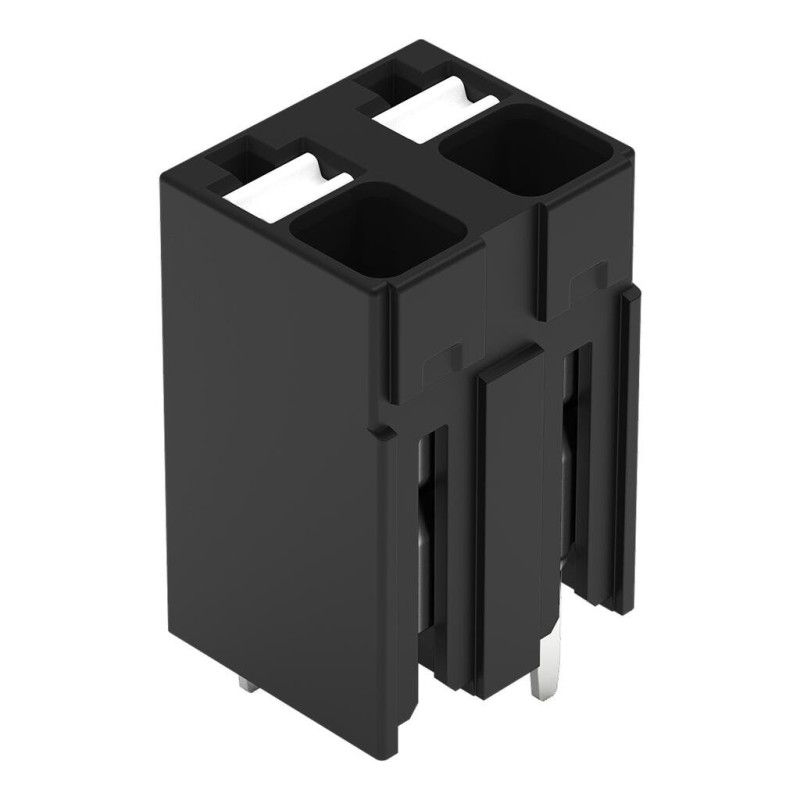

Description 2086-3122/997-604 THR PCB terminal block;push-button;1.5 mm²;black
- Ideal for compact device connection, panel feedthrough and tight spaces
- Push-in CAGE CLAMP® termination of solid and ferruled fine-stranded conductors
- SMD and THR variants available
- Push-button moves in direction of conductor connection
- Conductor connection and mating direction parallel or perpendicular to the PCB
- Optionally available with in-line or staggered pins (3.5 and 5 mm pin spacing)
Main attributes 2086-3122/997-604 THR PCB terminal block;push-button;1.5 mm²;black
Connection 1
Actuation type
Push-button
Conductor connection direction to PCB
90 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.14 … 1.5 mm² / 26 … 14 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 0.75 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Pole number
2
Solid conductor
0.14 … 1.5 mm² / 28 … 16 AWG
Strip length
8 … 9 mm
Connection data
Clamping units
2
Number of connection types
1
Number of levels
1
Total number of potentials
2
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Limit temperature range
-60 … +105 °C
Processing temperature
-35 … +60 °C
Environmental Testing (Environmental Conditions)
Acceleration
5g (highest test level used for all axes)
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Frequency
f1 = 5 Hz to f2 = 150 Hz
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Monitoring for contact faults/interruptions
Passed
Number of shocks per axis
3 pos. und 3 neg.
Shock duration
30 ms
Shock form
Half sine
Shock test
Test passed according to Section 10 of the standard
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Spectrum/Installation location
Service life test, Category 1, Class A/B
Test directions
X, Y and Z axes
Test duration per axis
5 h
Test procedure (Railway applications – Roll
DIN EN 61373 (VDE 0115-0106):2011-04
Test specification Railway applications – Rolling stock – Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Vibration and shock stress for rolling stock equipment
Passed
Voltage drop measurement before and after each axis
Passed
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
black
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.036 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyphthalamide (PPA GF)
Material group
I
MSL per J-STD 020D
1
Weight
1.2 g
PCB contact
Number of solder pins per potential
1
PCB contact
THR
Solder pin arrangement
over the entire terminal strip (staggered)

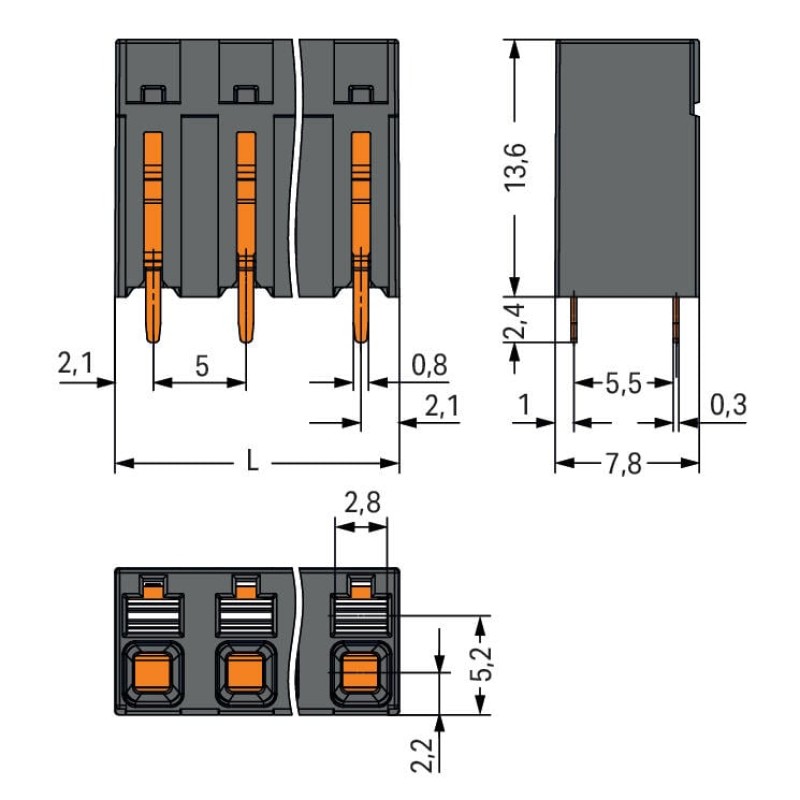

Physical data
Depth
7.8 mm
Height
16 mm
Height from the surface
13.6 mm
Pin spacing
5 mm
Plated through-hole diameter (THR)
1 (+0.1) mm
Reel diameter of tape-and-reel packaging
380 mm
Solder pin dimensions
0.3 x 0.8 mm
Solder pin length
2.4 mm
Tape width
24 mm
Width
9.2 mm
