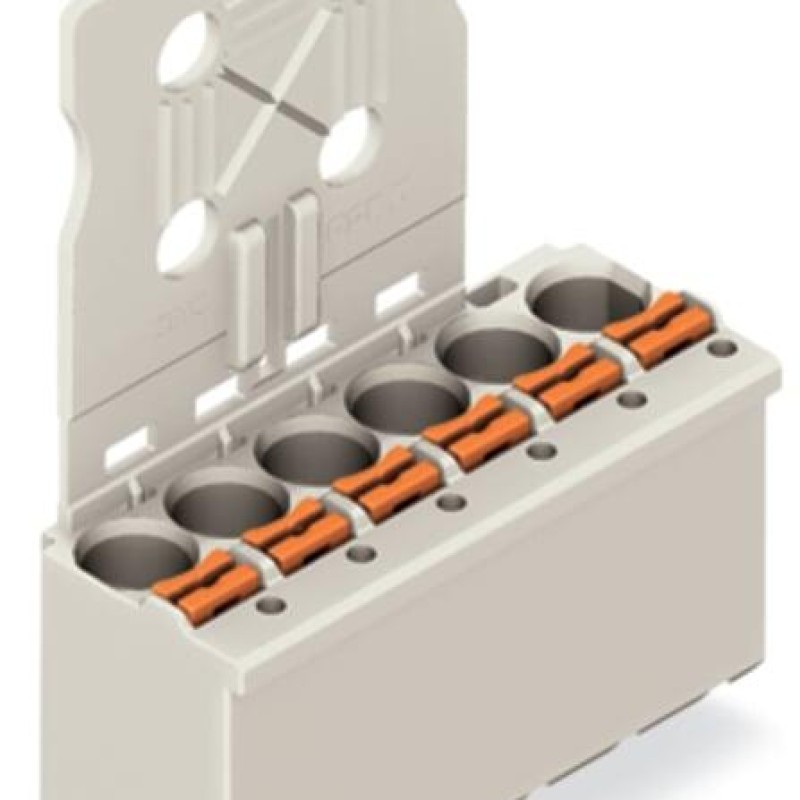

Description 2092-1158/000-5000 1-conductor THT female connector straight; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 8-pole; 1.4 mm Ø solder pin; Gripping plate; direct marking; 2,50 mm²; light gray
- Universal connection for all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require special tools
- Ability to wire while mated or unmated
- Integrated test ports for testing parallel to conductor entry
- Custom-installed solder pins
Main attributes 2092-1158/000-5000 1-conductor THT female connector straight; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 8-pole; 1.4 mm Ø solder pin; Gripping plate; direct marking; 2,50 mm²; light gray
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation type
Push-button
Conductor connection direction to PCB
90 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.2 … 2.5 mm² / 24 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
8
Solid conductor
0.2 … 2.5 mm² / 24 … 12 AWG
Strip length
9 … 10 mm
Connection data
Clamping units
8
Number of connection types
1
Number of levels
1
Total number of potentials
8
Environmental requirements
Limit temperature range
-60 … +100 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
light gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.035 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyphthalamide (PPA GF)
Material group
I
Weight
9.4 g
Mechanical data
Anti-rotation protection
Yes

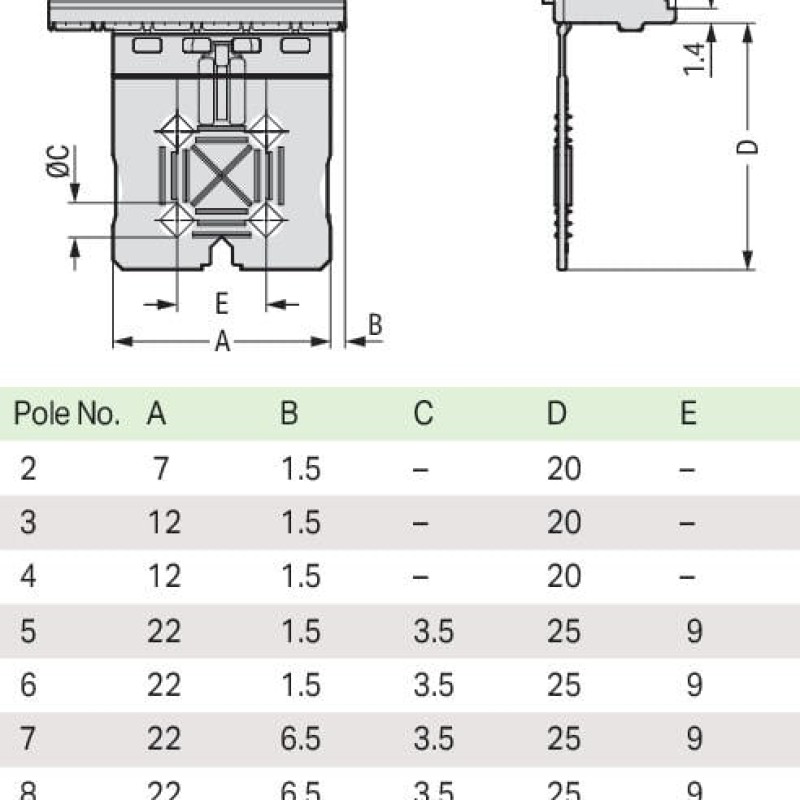

Design
With gripping plate
Marking type
Numbers
Variable coding
No
PCB contact
PCB contact
THT

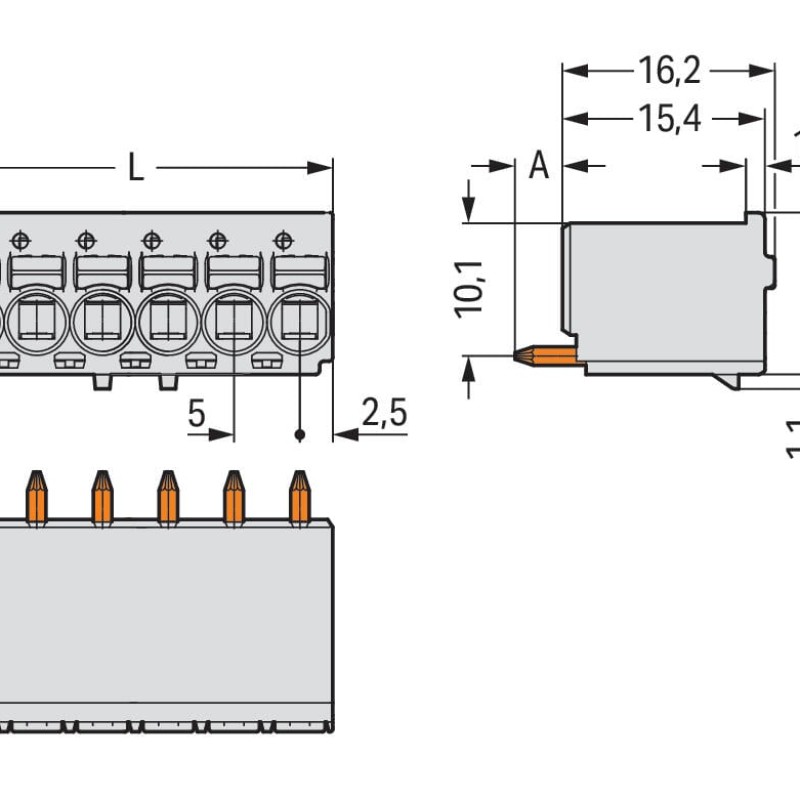

Physical data
Depth
13.4 mm
Drilled hole diameter with tolerance
1.6 (+0.1) mm
Height
39 mm
Pin spacing
5 mm
Solder pin diameter
1.4 mm
Solder pin length
3.6 mm
Width
40 mm
Plug-in connection
Connector (connection type)
for PCB
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
none
Mating direction to the PCB
90 °
Mismating protection
No
Plugging without loss of pin spacing
Yes
