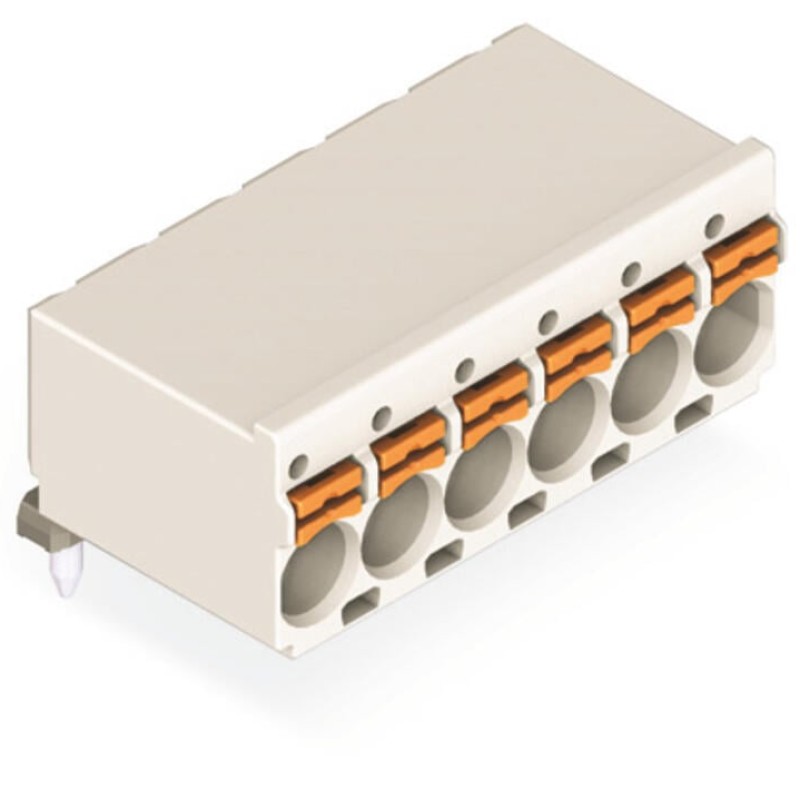

Description 2092-1374/200-000 1-conductor THR female connector angled;push-button;Push-in CAGE CLAMP®;light gray
- Universal connection for all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require specialty tools
- Ability to wire while mated or unmated
- Integrated test ports for testing parallel to conductor entry
- Factory-installed, straight or angled solder pins allow horizontal or vertical mounting to the PCB
Main attributes 2092-1374/200-000 1-conductor THR female connector angled;push-button;Push-in CAGE CLAMP®;light gray
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation type
Push-button
Conductor connection direction to PCB
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.2 … 2.5 mm² / 24 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
4
Solid conductor
0.2 … 2.5 mm² / 24 … 12 AWG
Strip length
9 … 10 mm
Connection data
Clamping units
4
Number of connection types
1
Number of levels
1
Total number of potentials
4
Environmental requirements
Limit temperature range
-60 … +100 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
light gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.085 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyphthalamide (PPA GF)
Material group
I
MSL per J-STD 020D
1
Weight
5 g
Mechanical data
Anti-rotation protection
Yes
Variable coding
No
PCB contact
PCB contact
THR

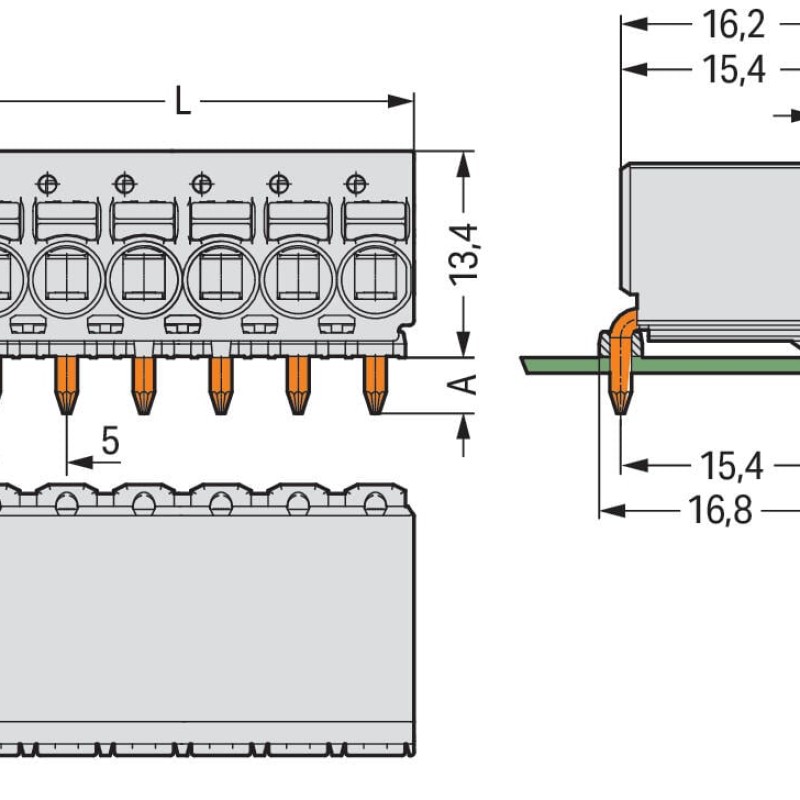

Physical data
Depth
15.4 mm
Height
13.4 mm
Pin spacing
5 mm
Plated through-hole diameter (THR)
1.6 (+0.1) mm
Solder pin diameter
1.4 mm
Solder pin length
2.4 mm
Width
20.0 mm
Plug-in connection
Connector (connection type)
for PCB
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
none
Mating direction to the PCB
0 °
Mismating protection
No
Plugging without loss of pin spacing
Yes
