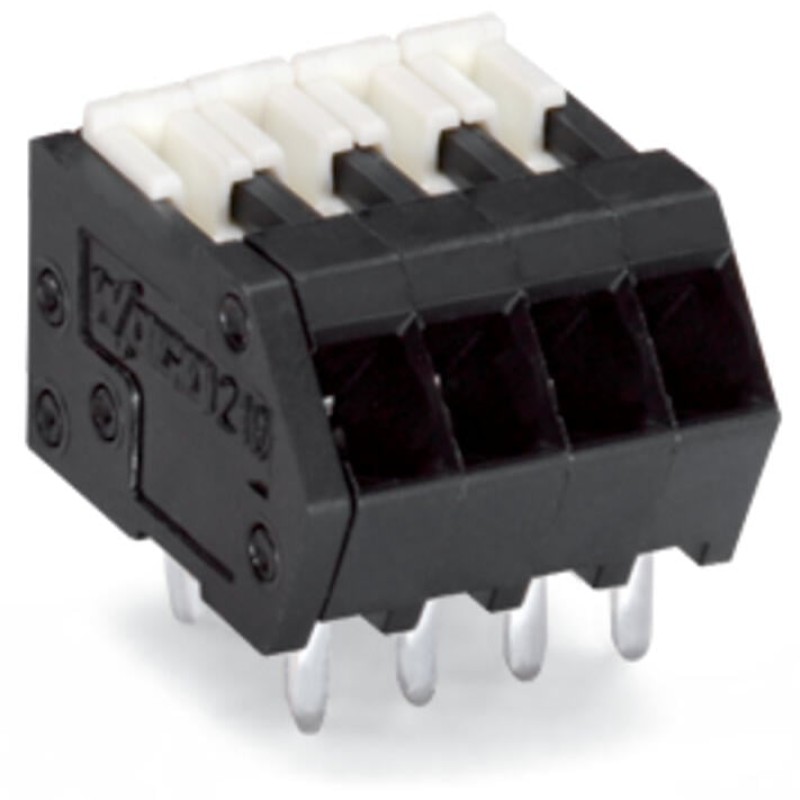

Description 218-103/000-604 THR PCB terminal block;Locking slides;0.5 mm²;black
- Terminal strips are just 8.1 mm tall and feature an innovative, locking slide-actuated CAGE CLAMP® .
- Several clamping units can be held open simultaneously.
- Easily terminate stranded conductors in tight spaces (e.g., bus connectors).
- THR soldering provides integration into SMT assembly and soldering processes.
Main attributes 218-103/000-604 THR PCB terminal block;Locking slides;0.5 mm²;black
Connection 1
Actuation type
Slider
Conductor connection direction to PCB
40 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 0.5 mm² / 28 … 20 AWG
Fine-stranded conductor; with insulated ferrule
0.25 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 mm²
Note (conductor cross-section)
Terminating 0.75 mm²/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
Pole number
3
Solid conductor
0.08 … 0.5 mm² / 28 … 20 AWG
Strip length
5 … 6 mm
Connection data
Clamping units
3
Number of connection types
1
Number of levels
1
Total number of potentials
3
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
black
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.015 MJ
Flammability class per UL94
V2
Insulation material (main housing)
Polyamide (PA46)
Material group
IIIa
MSL per J-STD 020D
1
Weight
1 g
PCB contact
Number of solder pins per potential
2
PCB contact
THR
Solder pin arrangement
over the entire terminal strip (in-line)

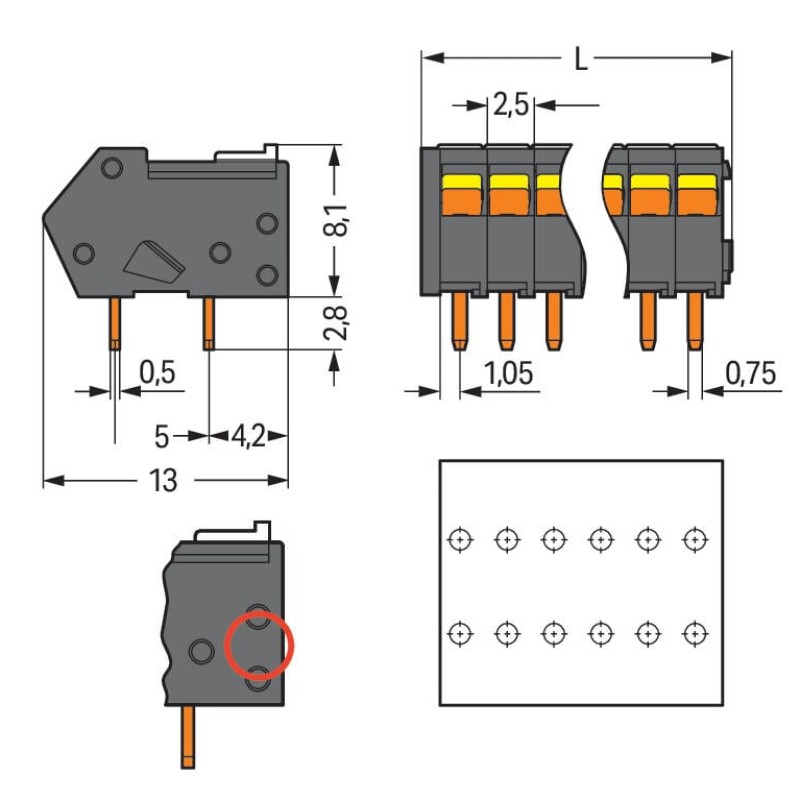

Physical data
Depth
13 mm
Height
10.9 mm
Height from the surface
8.1 mm
Pin spacing
2.5 mm
Plated through-hole diameter (THR)
1.1 (+0.1) mm
Solder pin dimensions
0.5 x 0.75 mm
Solder pin length
2.8 mm
Width
9 mm
