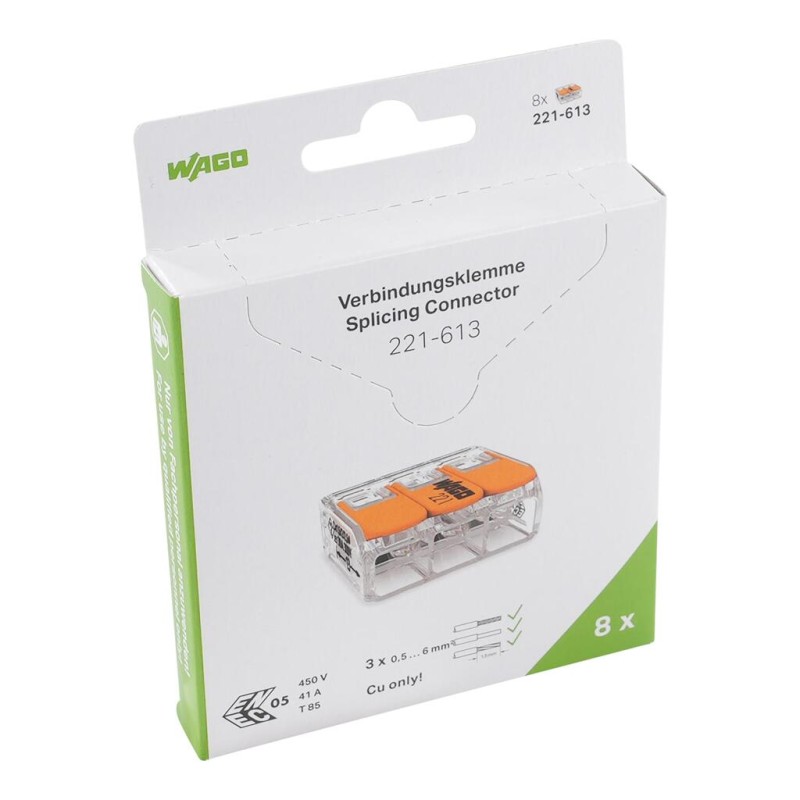

Description 221-613/995-008 Splicing connector with levers;for all conductor types;max. 6 mm²;transparent
Your benefits:- Ease of use – pull the lever up, insert a conductor and push the lever back down
- Available as 2-, 3- and 5-wire connectors
- Easily terminate conductors from 0.5 to 6 mm²
- Connection of all conductor types
- Time savings for installers and device manufacturers
- Quickly install devices with higher power consumption
- Safely install long cable runs with larger conductor cross sections
- Mounting carrier for installation conforms to standards
- Custom carriers are possible
Main attributes 221-613/995-008 Splicing connector with levers;for all conductor types;max. 6 mm²;transparent
Connection 1
Actuation type
Lever
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.5 … 6 mm² / 20 … 10 AWG
Nominal cross-section
6 mm² / 10 AWG
Solid conductor
0.5 … 6 mm² / 20 … 10 AWG
Stranded conductor
0.5 … 6 mm² / 20 … 10 AWG
Strip length
12 … 14 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
3
Total number of potentials
1
Environmental requirements
Ambient temperature (operation)
+85 °C
Continuous operating temperature
105 °C
Temperature marking per EN 60998
T85
Material data
Actuator color
orange
Color
transparent
Cover color
transparent
Fire load
0.094 MJ
Flammability class per UL94
V2
Insulation material (main housing)
Polycarbonate (PC)
Material group
IIIa
Weight
4.3 g
Physical data
Depth
21.1 mm
Height
10.1 mm
Width
22.9 mm
