New
Pre-Order
Date Available: 28/06/2026
Article: 2231-103/031-000
Brand: Wago
120.23 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

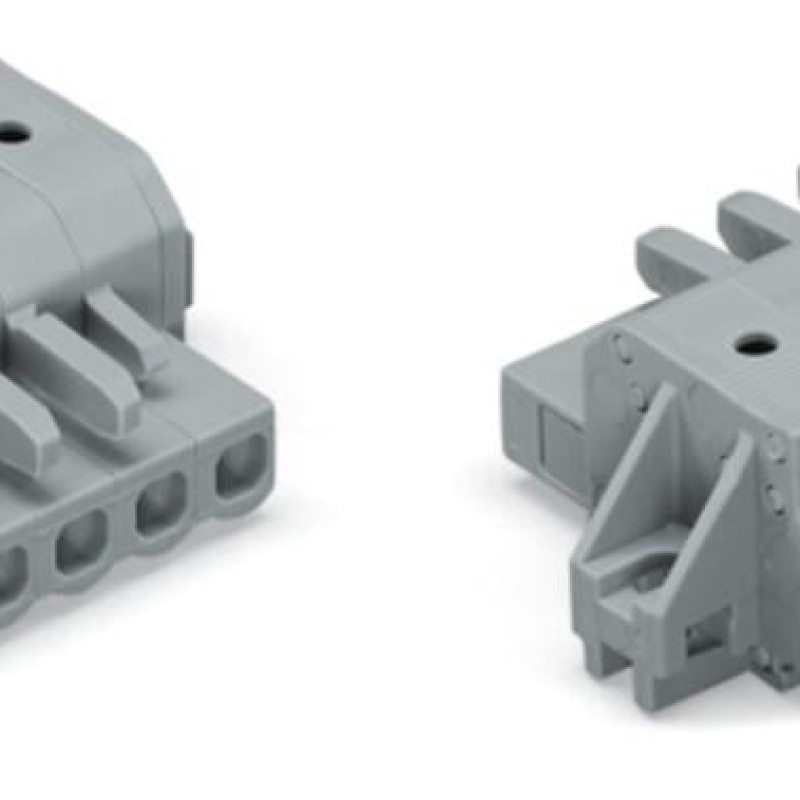

Description 2231-103/031-000 1-conductor female connector;push-button;Push-in CAGE CLAMP®;gray
- Universal connection for all conductor types
- Easy-to-use design does not require specialty tools
- Ability to wire while mated
- Push-in termination of solid and ferruled conductors
- Integrated test ports for testing parallel to the conductor entry
- Coding option available
Main attributes 2231-103/031-000 1-conductor female connector;push-button;Push-in CAGE CLAMP®;gray
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation type
Push-button
Conductor entry direction to mating direction
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.2 … 2.5 mm² / 24 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
3
Solid conductor
0.2 … 2.5 mm² / 24 … 12 AWG
Strip length
10 … 11 mm
Connection data
Clamping units
3
Number of connection types
1
Number of levels
1
Total number of potentials
3
Environmental requirements
Limit temperature range
-60 … +100 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.192 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
5.6 g
Mechanical data
Anti-rotation protection
Yes
Mounting type
Panel mounting
Variable coding
Yes

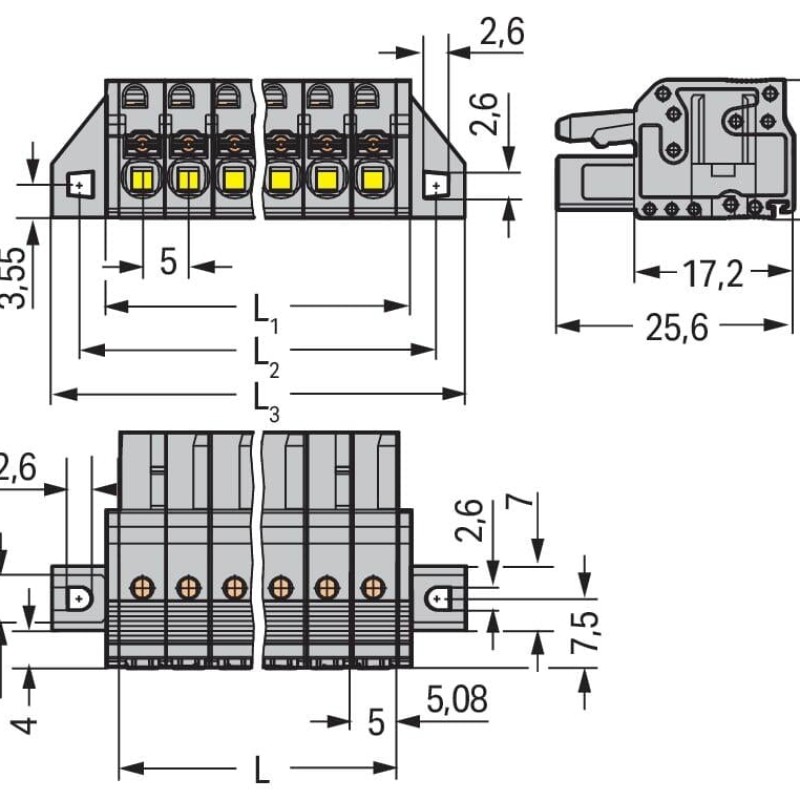

Physical data
Depth
25.6 mm
Height
15 mm
Pin spacing
5 mm
Width
29.8 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
none
Mismating protection
No
Plugging without loss of pin spacing
No
