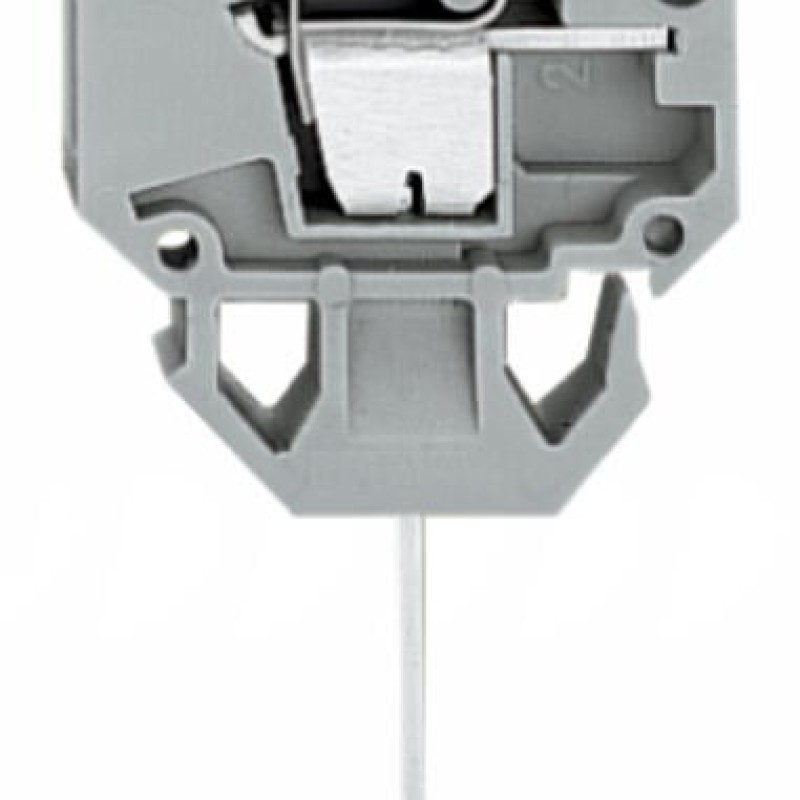

Description 226-102 Feedthrough terminal block;Conductor/wire-wrap connection;Plate thickness: 1.5 mm;gray
- Modular through terminal blocks with screwdriver-actuated CAGE CLAMP®
- Tool-free insertion into sheet metal cutout
- Conductor entry parallel to enclosure wall saves space
Main attributes 226-102 Feedthrough terminal block;Conductor/wire-wrap connection;Plate thickness: 1.5 mm;gray
Connection 1
Actuation type
Operating tool
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 4 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Number of connection points
1
Pole number
1
Solid conductor
0.08 … 4 mm² / 28 … 12 AWG
Strip length
9 … 10 mm
Connection 2
Connection technology 2
Wire-wrap pin
Number of connection points 2
1
Connection data
Clamping units
1
Number of connection types
2
Number of levels
1
Total number of potentials
1
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.12 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
3.4 g

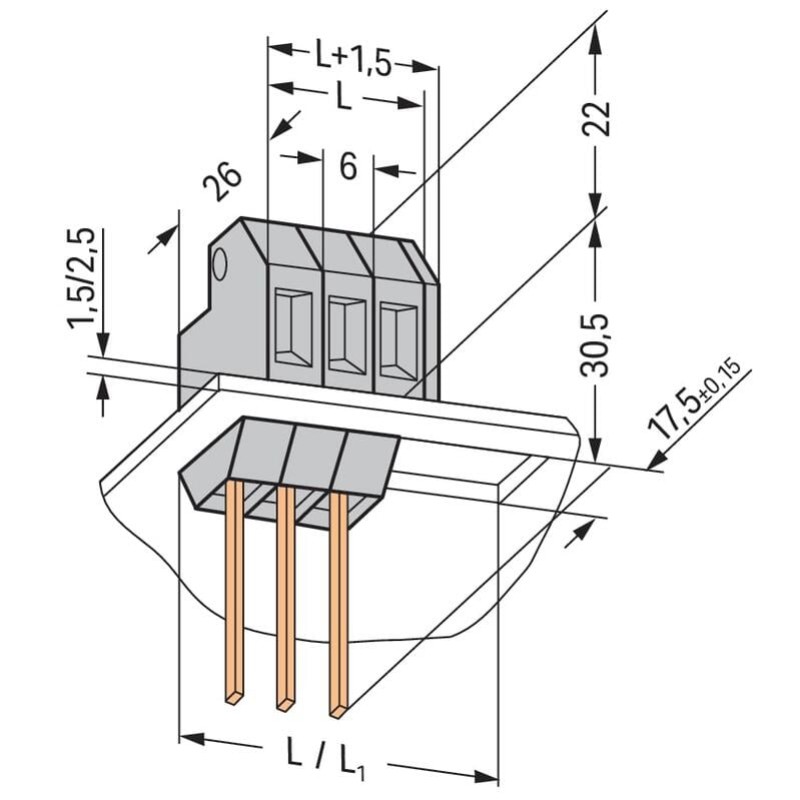

Mechanical data
Housing sheet thickness
1.5 … 1.5 mm
Mounting type
Snap-in foot
Physical data
Depth
26 mm
Height
52.5 mm
Height from the surface
22 mm
Pin spacing
6 mm
Width
6 mm
