Article: 231-115/125-000
Brand: Wago
584.74 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

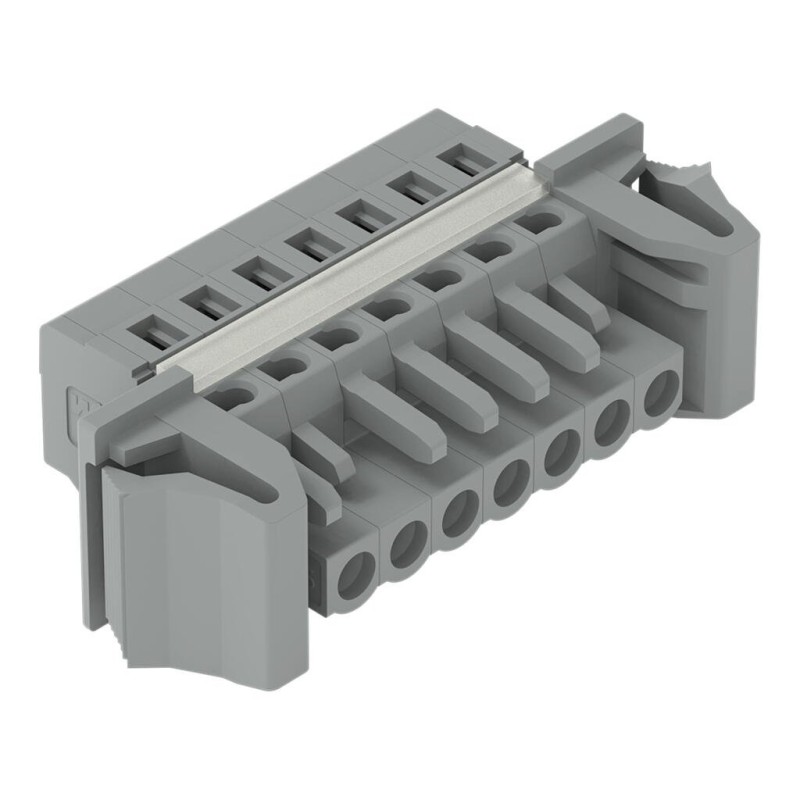

Description 231-115/125-000 1-conductor female connector;CAGE CLAMP®;2.5 mm²;gray
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
- Integrated test ports
- With coding fingers
Main attributes 231-115/125-000 1-conductor female connector;CAGE CLAMP®;2.5 mm²;gray
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation direction 2
Operation perpendicular to conductor entry
Actuation type
Operating tool
Conductor entry direction to mating direction
0 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
15
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
8 … 9 mm
Connection data
Clamping units
15
Number of connection types
1
Number of levels
1
Total number of potentials
15
Environmental requirements
Limit temperature range
-60 … +85 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.642 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
30.7 g
Mechanical data
Anti-rotation protection
Yes

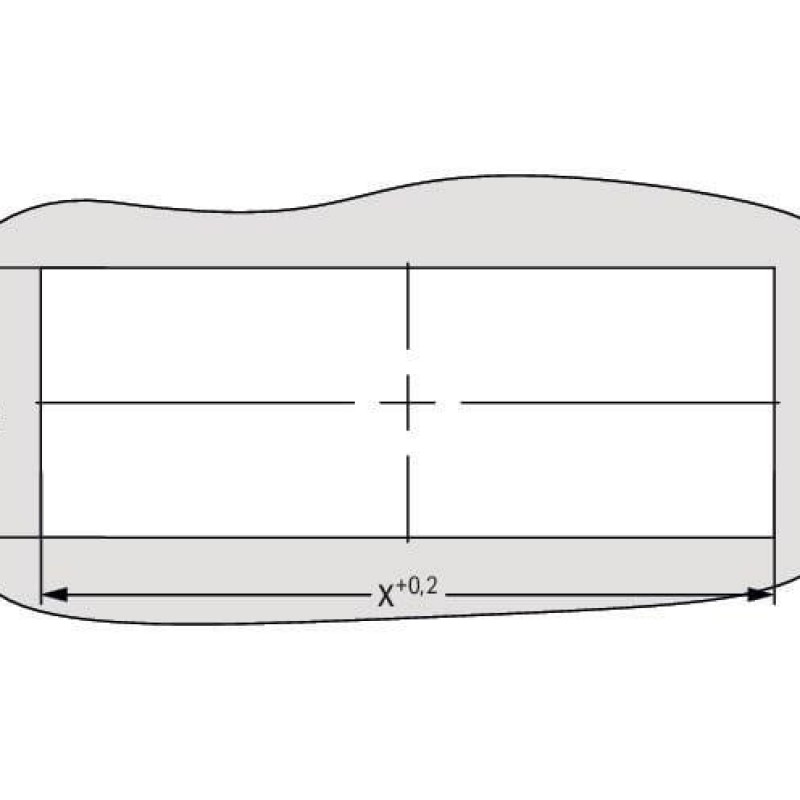

Housing sheet thickness
0.5 … 3 mm
Mounting type
Snap-in flange
Variable coding
Yes

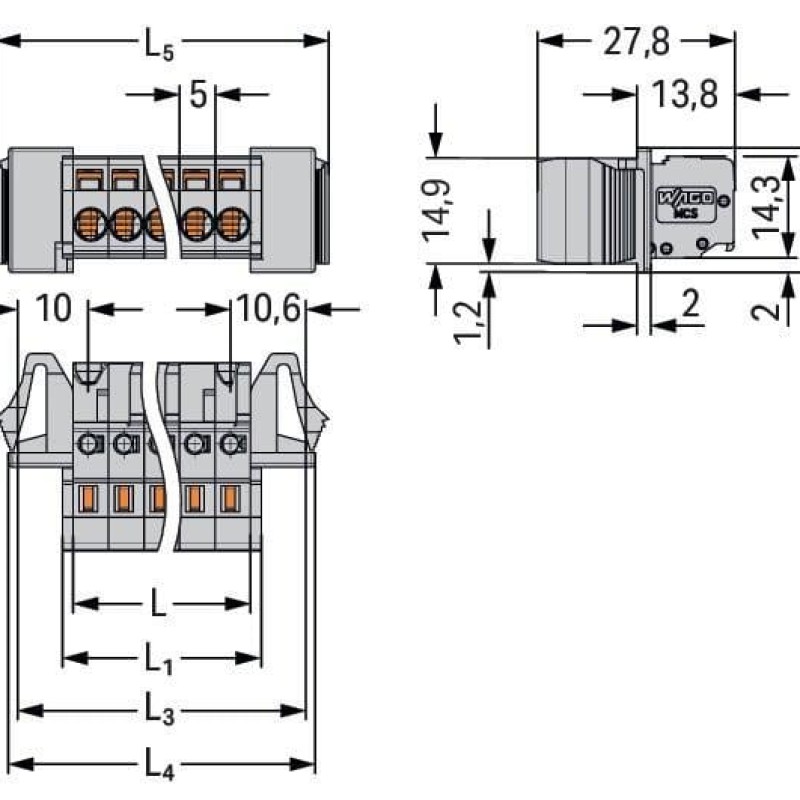

Physical data
Depth
26.45 mm
Height
14.3 mm
Pin spacing
5 mm
Width
97 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Female connector/socket
Mismating protection
No
Plugging without loss of pin spacing
No
