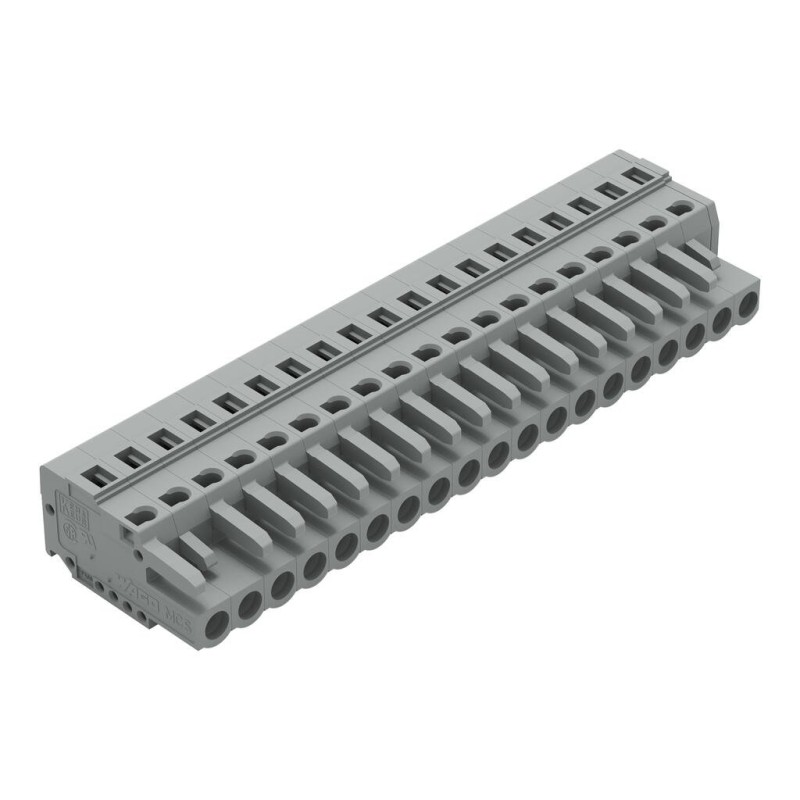

Description 231-119/026-000 1-conductor female connector;CAGE CLAMP®;2.5 mm²;gray
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
- Integrated test ports
- With coding fingers
Main attributes 231-119/026-000 1-conductor female connector;CAGE CLAMP®;2.5 mm²;gray
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation direction 2
Operation perpendicular to conductor entry
Actuation type
Operating tool
Conductor entry direction to mating direction
0 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
19
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
8 … 9 mm
Connection data
Clamping units
19
Number of connection types
1
Number of levels
1
Total number of potentials
19
Environmental requirements

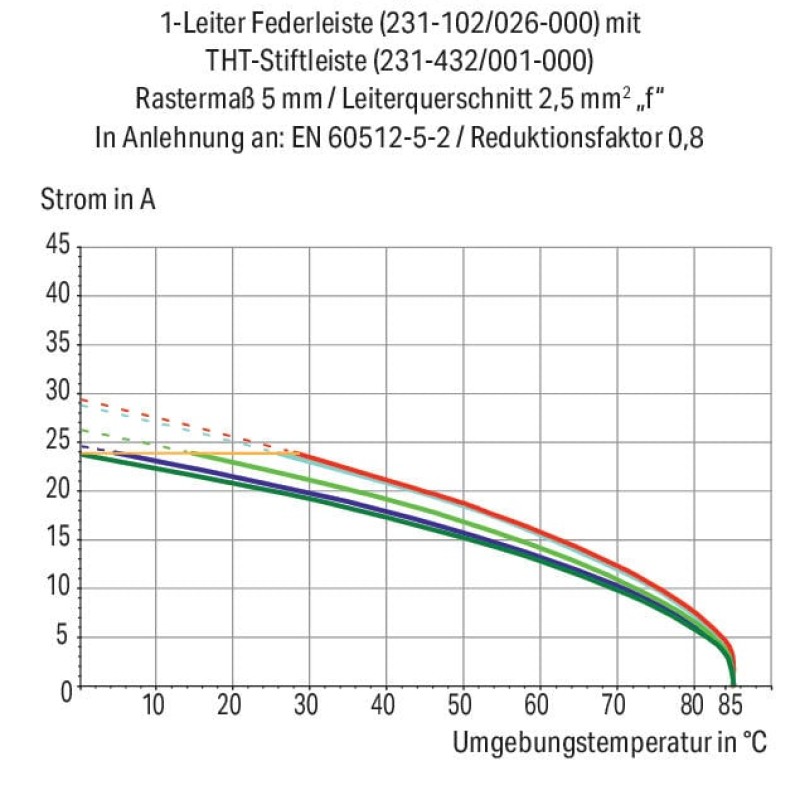

Limit temperature range
-60 … +85 °C
Processing temperature
-35 … +60 °C
Environmental Testing (Environmental Conditions)
Acceleration
5g (highest test level used for all axes)
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Frequency
f1 = 5 Hz to f2 = 150 Hz
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Monitoring for contact faults/interruptions
Passed
Number of shocks per axis
3 pos. und 3 neg.
Shock duration
30 ms
Shock form
Half sine
Shock test
Test passed according to Section 10 of the standard
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Spectrum/Installation location
Service life test, Category 1, Class A/B
Test directions
X, Y and Z axes
Test duration per axis
5 h
Test procedure (Railway applications – Roll
DIN EN 61373 (VDE 0115-0106):2011-04
Test specification Railway applications – Rolling stock – Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Vibration and shock stress for rolling stock equipment
Passed
Voltage drop measurement before and after each axis
Passed
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.641 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
33.3 g
Mechanical data
Anti-rotation protection
Yes
Variable coding
Yes

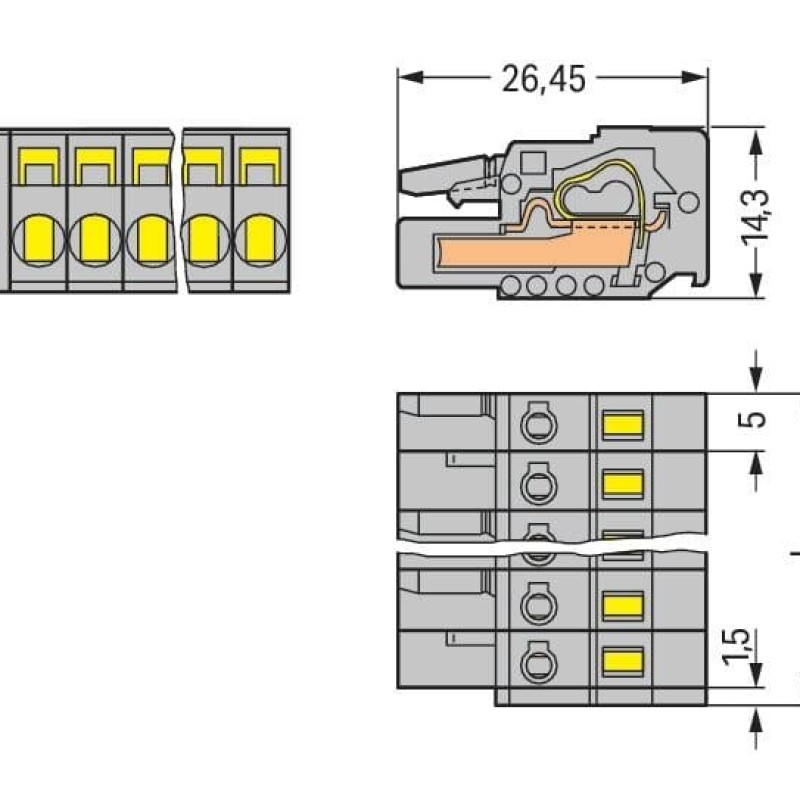

Physical data
Depth
26.45 mm
Height
14.3 mm
Pin spacing
5 mm
Width
96.5 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
none
Mismating protection
No
Plugging without loss of pin spacing
No
