Article: 231-2113/037-000
Brand: Wago
645.30 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

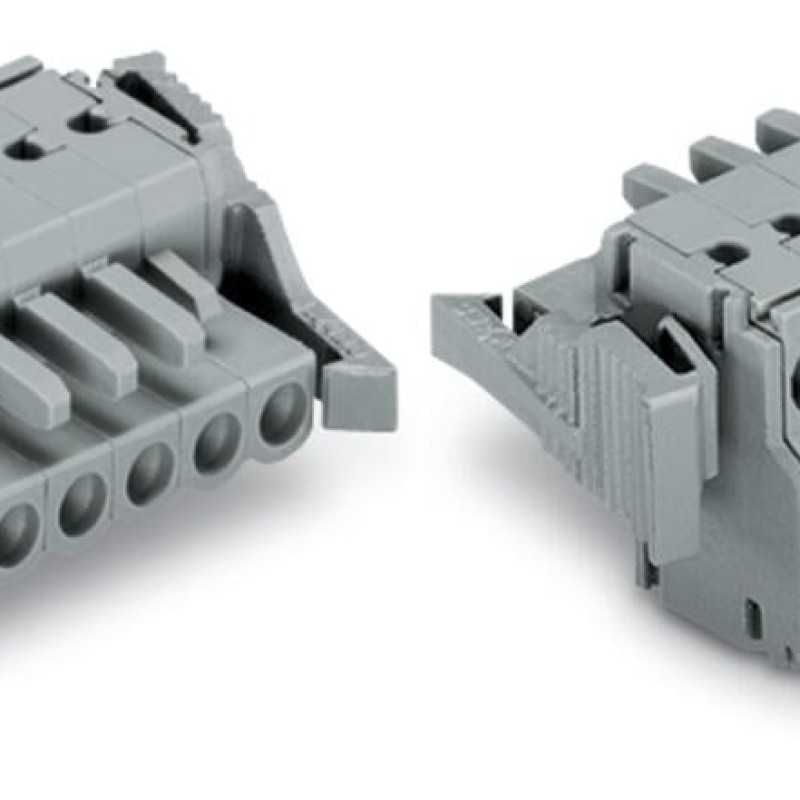

Description 231-2113/037-000 2-conductor female connector;Push-in CAGE CLAMP®;2.5 mm²;gray
- Universal connection for all conductor types
- Two conductor entries per pole
- For looping through power or data buses
- Bus connection is retained, even when unmated
- Push-in termination of solid and ferruled conductors
- With coding fingers
Main attributes 231-2113/037-000 2-conductor female connector;Push-in CAGE CLAMP®;2.5 mm²;gray
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation type
Operating tool
Conductor entry direction to mating direction
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.2 … 2.5 mm² / 24 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
13
Solid conductor
0.2 … 2.5 mm² / 24 … 12 AWG
Strip length
9 … 10 mm
Connection data
Clamping units
26
Number of connection types
1
Number of levels
1
Total number of potentials
13
Environmental requirements
Limit temperature range
-60 … +85 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.634 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
30.7 g
Mechanical data
Anti-rotation protection
Yes
Variable coding
Yes

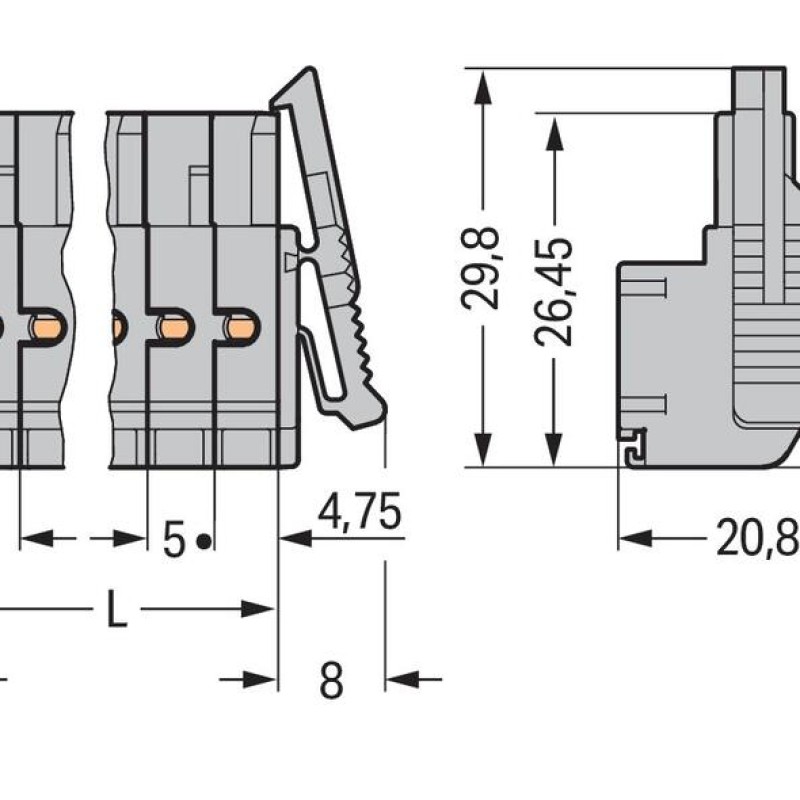

Physical data
Depth
29.8 mm
Height
20.8 mm
Pin spacing
5 mm
Width
81.55 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
locking lever
Mismating protection
No
Plugging without loss of pin spacing
No
