Description 231-268/001-000/105-604/997-409 THR male header;1.2 x 1.2 mm solder pin;straight;black
- THR male headers for reflow soldering in SMT applications

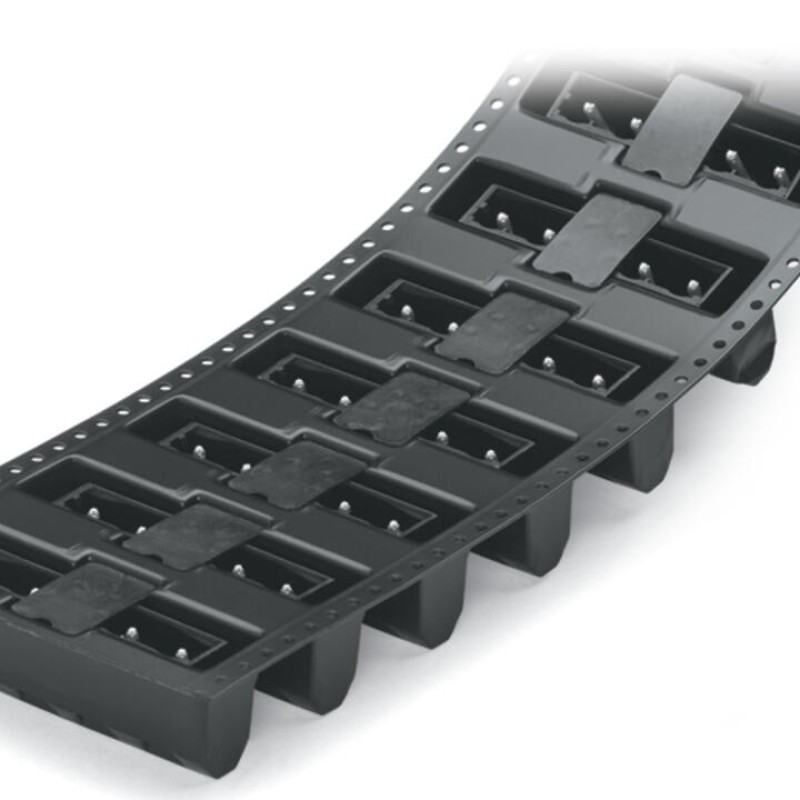

- Available in tape-and-reel packaging for automated pick-and-place PCB assembly

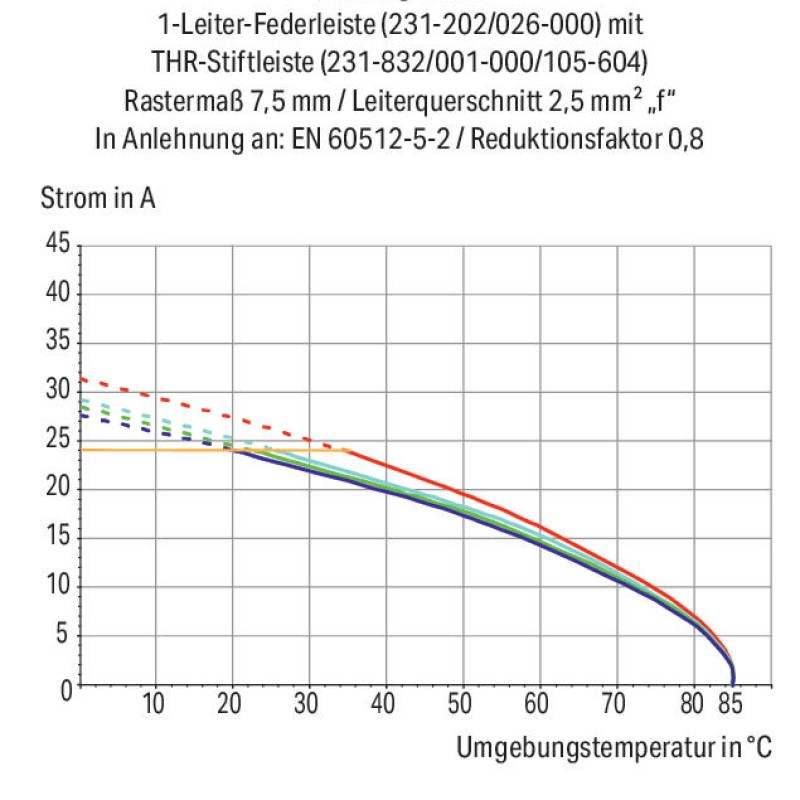

- 1.2 x 1.2 mm solder pins allow nominal current up to 16 A, enhancing stability of shorter headers
- Also available in bulk packaging for manual placement
- Male headers may be mounted horizontally or vertically
- With coding fingers
Main attributes 231-268/001-000/105-604/997-409 THR male header;1.2 x 1.2 mm solder pin;straight;black
Connection 1
Pole number
8
Connection data
Number of connection types
1
Number of levels
1
Total number of potentials
8
Environmental requirements
Limit temperature range
-60 … +100 °C
Processing temperature
-35 … +60 °C
Material data
Color
black
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.083 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyphthalamide (PPA GF)
Material group
I
MSL per J-STD 020D
1
Weight
3.8 g
Mechanical data
Anti-rotation protection
Yes
Variable coding
Yes
PCB contact
Number of solder pins per potential
1
PCB contact
THR
Solder pin arrangement
over the entire male connector (in-line)

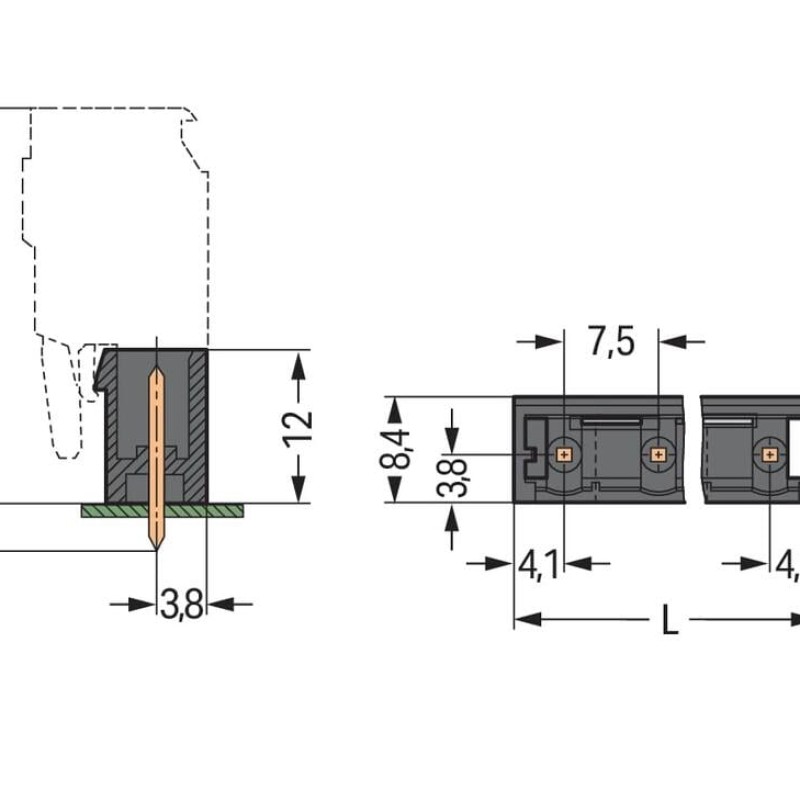

Physical data
Depth
8.4 mm
Height
14.4 mm
Height from the surface
12 mm
Pin spacing
7.5 mm
Plated through-hole diameter (THR)
1.7 (+0.1) mm

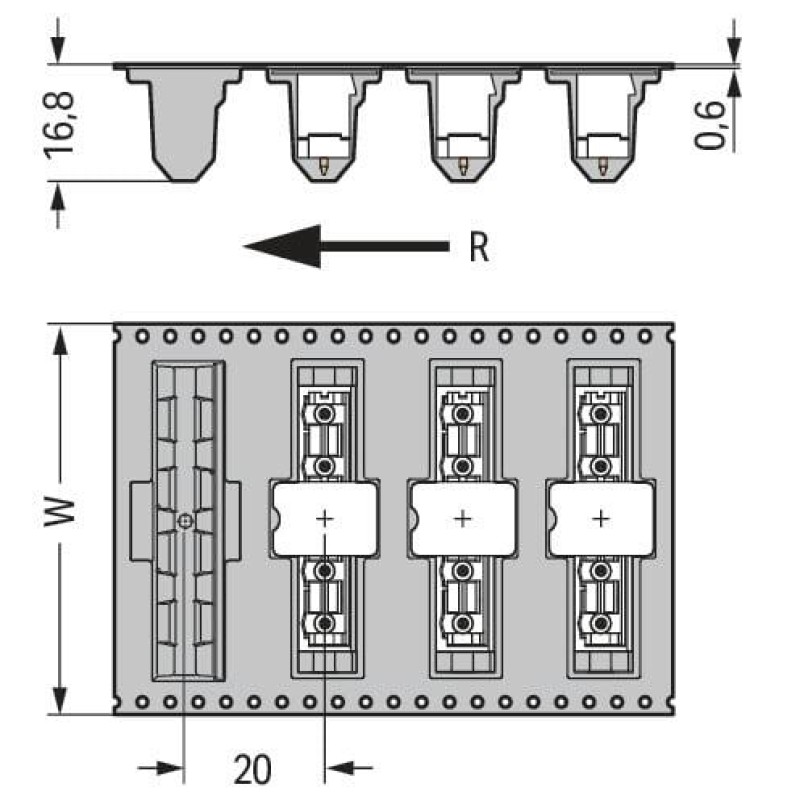

Reel diameter of tape-and-reel packaging
330 mm
Solder pin dimensions
1.2 x 1.2 mm
Solder pin length
2.4 mm
Tape width
88 mm
Width
60.7 mm
Plug-in connection
Connector (connection type)
for PCB
Contact type (pluggable connector)
Male connector/plug
Locking of plug-in connection
none
Mating direction to the PCB
90 °
Mismating protection
No
Plugging without loss of pin spacing
No
