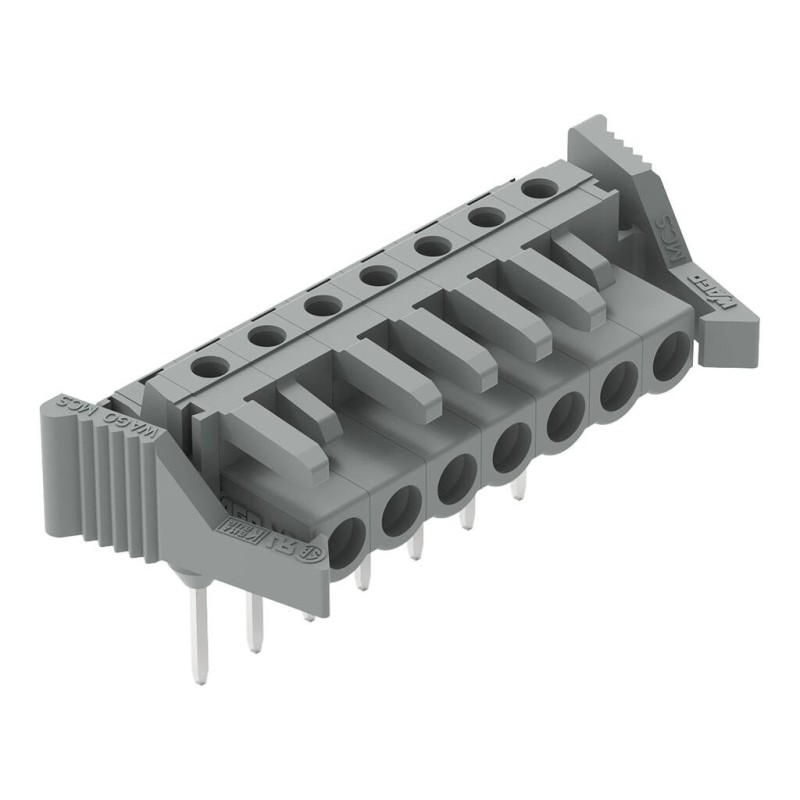

Description 232-237/005-000/039-000 Female connector for rail-mount terminal blocks; 0.6 x 1 mm pins; angled; Locking lever; Pin spacing 5 mm; 7-pole; gray
- Pluggable connectors for rail-mount terminal blocks equipped with CAGE CLAMP® connection
- Female connectors with long contact pins connect to the termination ports of 280 Series Rail-Mount Terminal Blocks
- Female connectors are touch-proof when unmated, providing a pluggable, live output
- With coding fingers
Main attributes 232-237/005-000/039-000 Female connector for rail-mount terminal blocks; 0.6 x 1 mm pins; angled; Locking lever; Pin spacing 5 mm; 7-pole; gray
Connection 1
Pole number
7
Connection data
Number of connection types
1
Number of levels
1
Total number of potentials
7
Environmental requirements
Limit temperature range
-60 … +85 °C
Processing temperature
-35 … +60 °C
Material data
Color
gray
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.37 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
8.2 g
Mechanical data
Anti-rotation protection
Yes
Variable coding
Yes

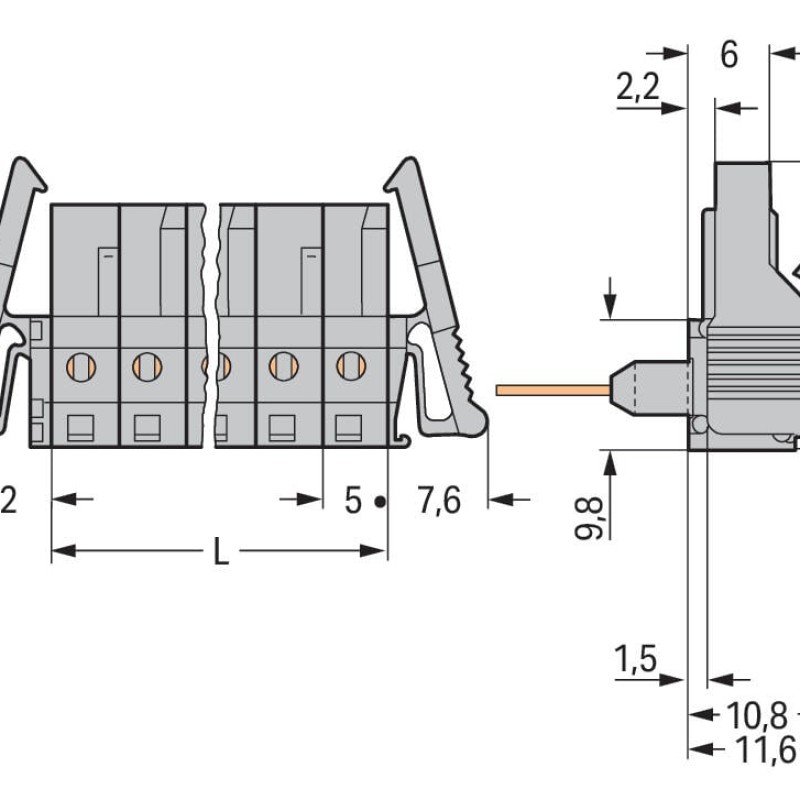

Physical data
Depth
11.6 mm
Height
26.1 mm
Height from the surface
11.6 mm
Pin spacing
5 mm
Width
50.8 mm
Plug-in connection
Connector (connection type)
for front-entry rail-mount terminal block
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
locking lever
Mating direction to the rail-mount terminal block
0 °
Mismating protection
No
Plugging without loss of pin spacing
No
