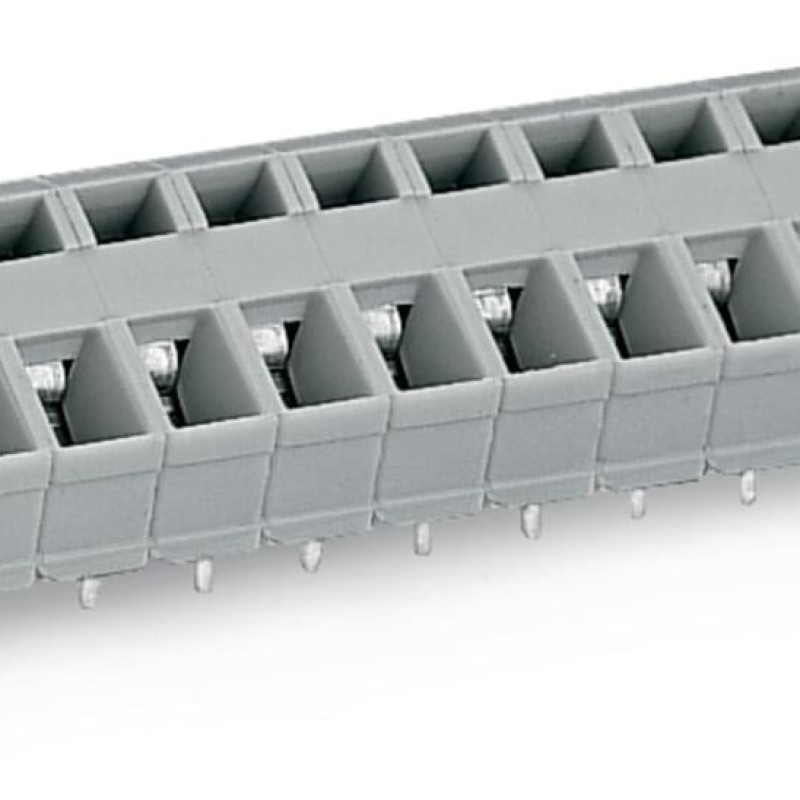

Description 236-105 PCB terminal block;2.5 mm²;Pin spacing 5/5.08 mm;gray
- PCB terminal strips with CAGE CLAMP® connection, screwdriver actuation parallel or perpendicular to conductor entry
- Versions with Ex approval
- Mixed-color PCB terminal strips from factory
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
Main attributes 236-105 PCB terminal block;2.5 mm²;Pin spacing 5/5.08 mm;gray
Connection 1
Actuation type
Operating tool
Conductor connection direction to PCB
45 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Note (conductor cross-section)
12 AWG: THHN, THWN
Pole number
5
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
5 … 6 mm
Connection data
Clamping units
5
Number of connection types
1
Number of levels
1
Total number of potentials
5
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.069 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
4.4 g
PCB contact
Number of solder pins per potential
1
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)

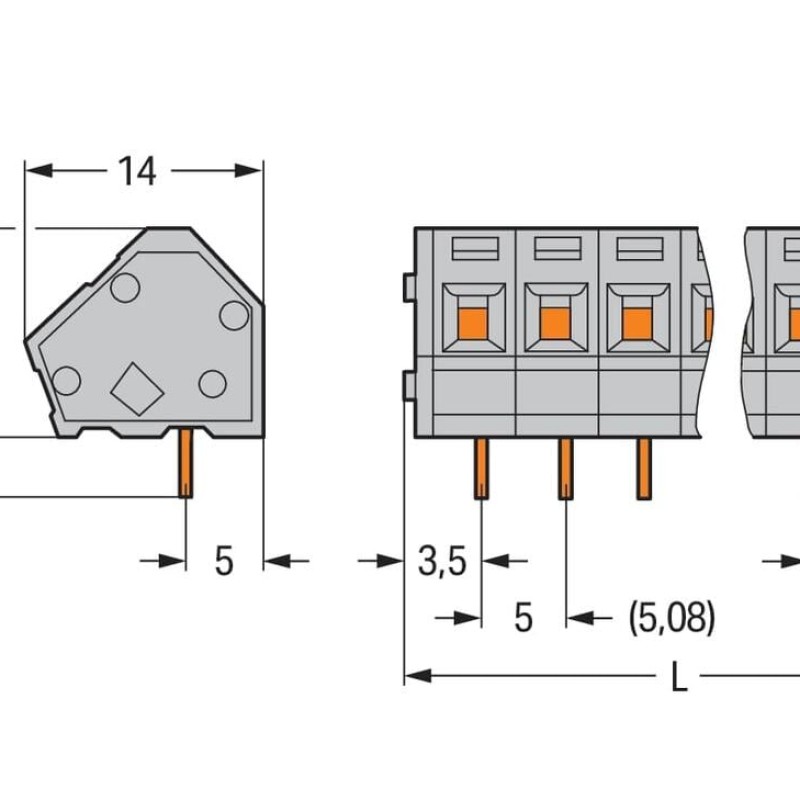

Physical data
Depth
14 mm
Drilled hole diameter with tolerance
1.1 (+0.1) mm
Height
17 mm
Height from the surface
13 mm
Pin spacing
5/5.08 mm
Solder pin dimensions
0.7 x 0.7 mm
Solder pin length
4 mm
Width
27.3 mm
