Article: 243-804
Brand: Wago
Sales in multiples of packaging: 100pcs.
11.65 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

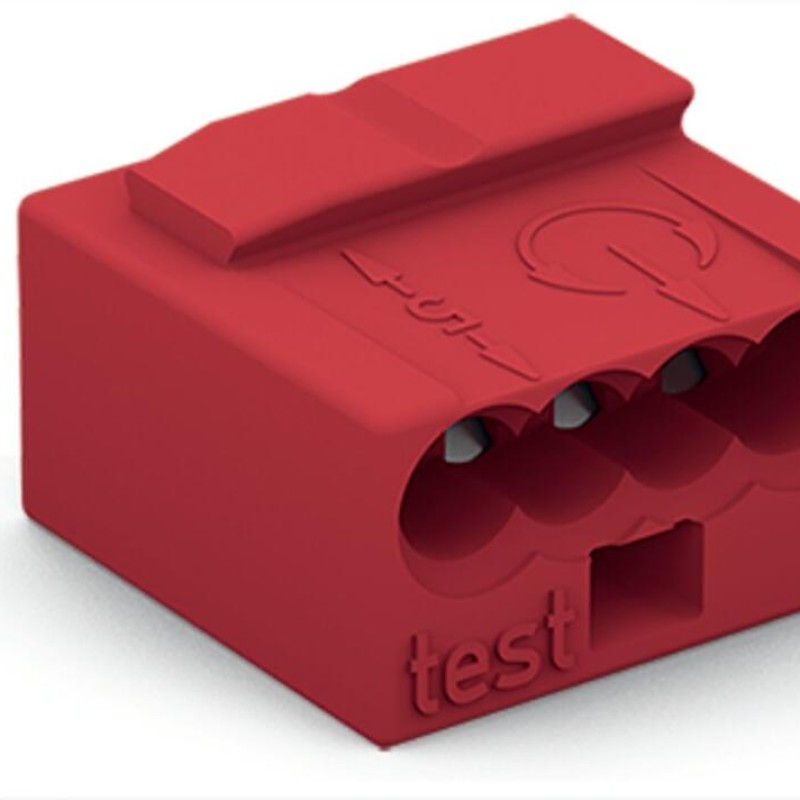

Description 243-804 MICRO PUSH WIRE® connector for junction boxes;for solid conductors;max. 0.8 mm Ø;red

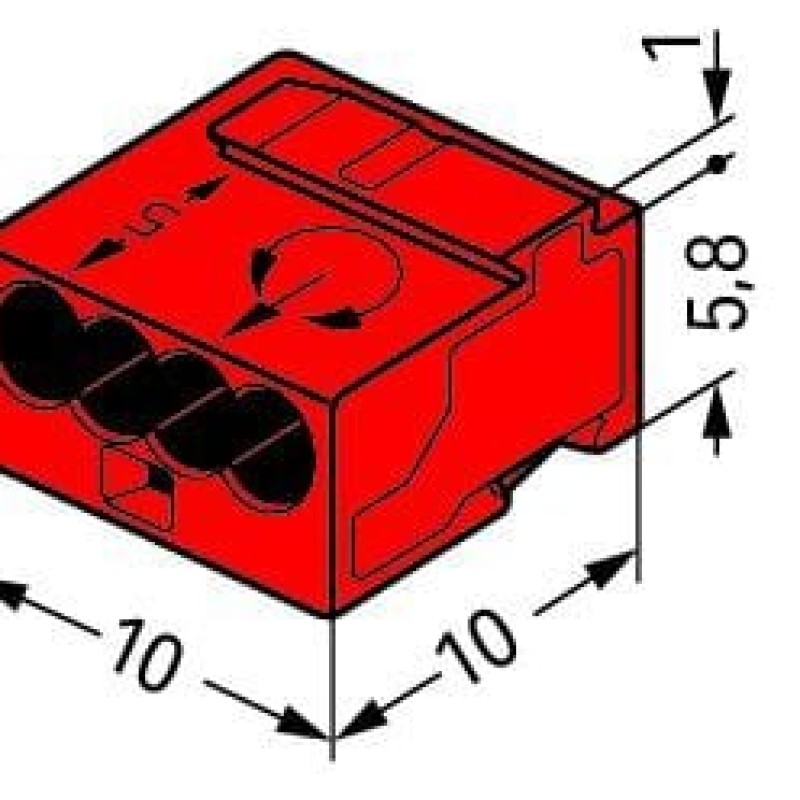

Push wire® splicing connector (item number 243-804) provides seamless electrical installations. WAGO's 243 Series MICRO PUSH WIRE® connectors for junction boxes are perfect for low-voltage installations in buildings. Whether for bell or intercom system wiring, our MICRO junction box connectors stand out thanks to their compact design—perfect for these types of installations. Strip lengths must be between 5 and 6 mm when connecting conductors to push wire® splicing connector. This splicing connector has a rated voltage of 100 V and can handle currents up to 6 A. This product features one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing faster and easier conductor clamping. The dimensions are (10 x 6.8 x 10) mm (width x height x depth).
Main attributes 243-804 MICRO PUSH WIRE® connector for junction boxes;for solid conductors;max. 0.8 mm Ø;red
Connection 1
Actuation type
Push-in
Conductor diameter
0.6 … 0.8 mm / 22 … 20 AWG
Conductor diameter (note)
When using conductors of the same diameter, 0.5 mm (24 AWG) or 1 mm (18 AWG) diameters are also possible.
Connectable conductor materials
Copper
Connection technology
PUSH WIRE®
Solid conductor
22 … 20 AWG
Strip length
5 … 6 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
4
Number of connection types
1
Number of levels
1
Total number of potentials
1
Environmental requirements
Ambient temperature (operation)
+60 °C
Continuous operating temperature
105 °C
Material data
Color
red
Cover color
light gray
Fire load
0.012 MJ
Weight
0.8 g
Physical data
Depth
10 mm
Height
6.8 mm
Width
10 mm
