New
Pre-Order
Date Available: 25/07/2026
Article: 256-402/333-000
Brand: Wago
0.00 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

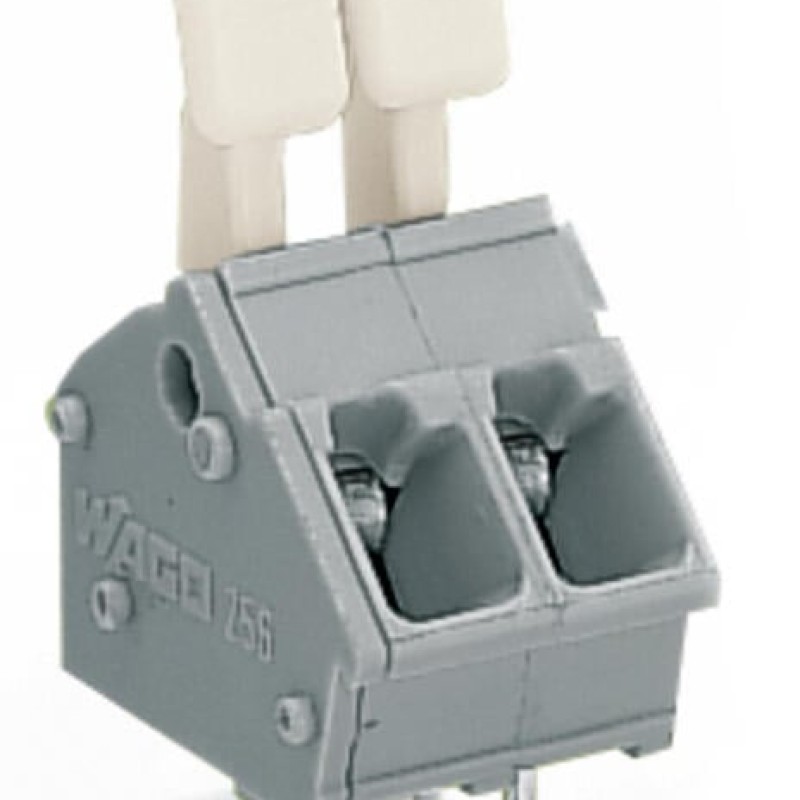

Description 256-402/333-000 PCB terminal block;finger-operated levers;2.5 mm²;gray
- PCB terminal blocks with push-buttons and CAGE CLAMP® connection
- Versions with Ex approval
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
- Ideal for in-the-field wiring thanks to simplified push-button actuation
- Convenient, tool-free operation
Main attributes 256-402/333-000 PCB terminal block;finger-operated levers;2.5 mm²;gray
Connection 1
Actuation type
Finger-operated lever
Conductor connection direction to PCB
45 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Note (conductor cross-section)
12 AWG: THHN, THWN
Pole number
2
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
5 … 6 mm
Connection data
Clamping units
2
Number of connection types
1
Number of levels
1
Total number of potentials
2
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.058 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
2.1 g
PCB contact
Number of solder pins per potential
2
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)

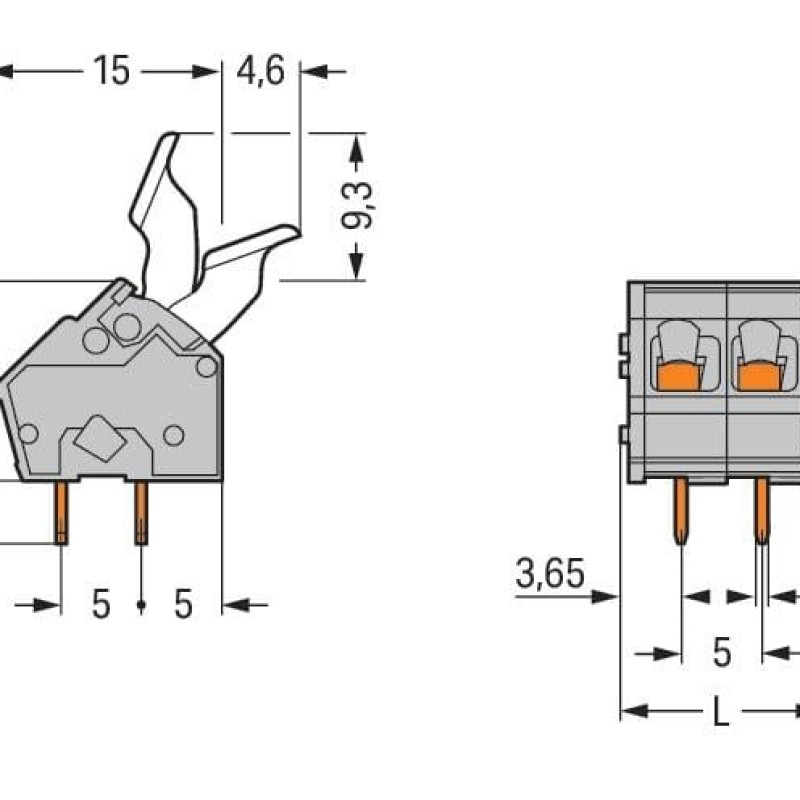

Physical data
Depth
19.6 mm
Drilled hole diameter with tolerance
1.1 (+0.1) mm
Height
26.3 mm
Height from the surface
22.3 mm
Pin spacing
5/5.08 mm
Solder pin dimensions
0.7 x 0.7 mm
Solder pin length
4 mm
Width
12.9 mm
