New
Pre-Order
Date Available: 04/09/2026
Article: 256-753/999-950
Brand: Wago
30.55 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

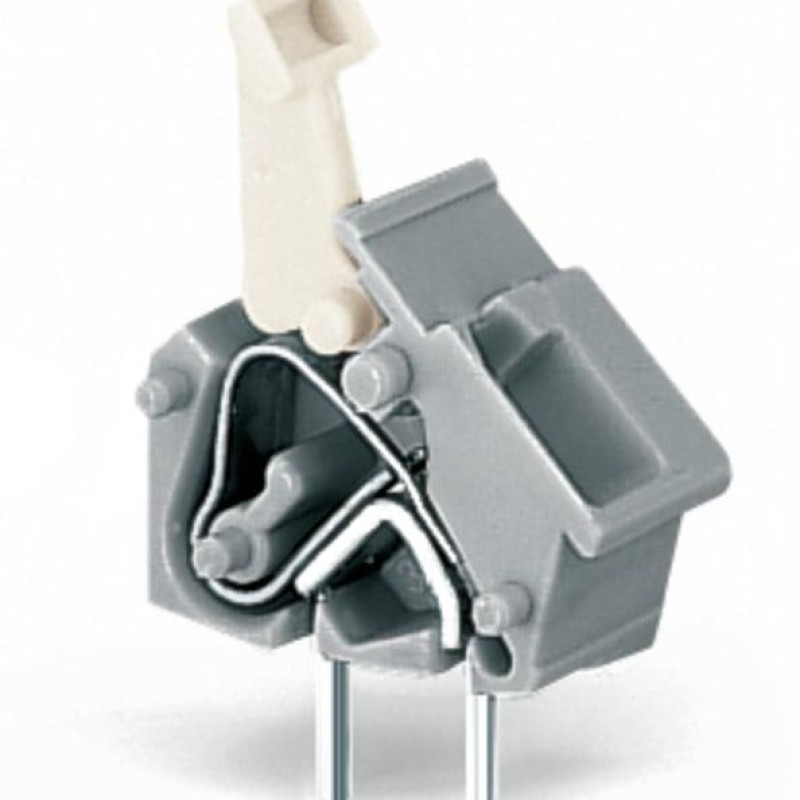

Description 256-753/999-950 Stackable PCB terminal block; push-button; 2.5 mm²; Pin spacing 7.5/7.62 mm; 1-pole; suitable for Ex-e applications; CAGE CLAMP®; commoning option; 2,50 mm²; light gray
- Modular PCB terminal blocks with push-buttons and CAGE CLAMP® connection
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
- Ideal for in-the-field wiring thanks to simplified push-button actuation
- Convenient, tool-free operation
Main attributes 256-753/999-950 Stackable PCB terminal block; push-button; 2.5 mm²; Pin spacing 7.5/7.62 mm; 1-pole; suitable for Ex-e applications; CAGE CLAMP®; commoning option; 2,50 mm²; light gray
Connection 1
Actuation type
Push-button
Conductor connection direction to PCB
45 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Note (conductor cross-section)
12 AWG: THHN, THWN
Pole number
1
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
5 … 6 mm
Connection data
Clamping units
1
Number of connection types
1
Number of levels
1
Total number of potentials
1
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
light gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.022 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
0.9 g
PCB contact
Number of solder pins per potential
2
PCB contact
THT
Solder pin arrangement
within the terminal block (in-line)

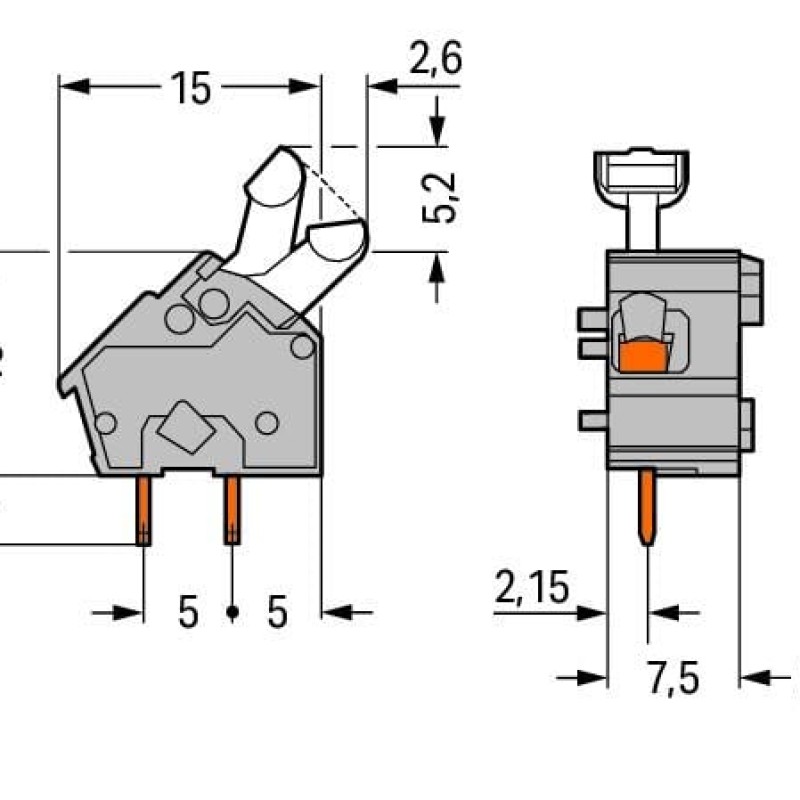

Physical data
Depth
17.6 mm
Drilled hole diameter with tolerance
1.1 (+0.1) mm
Height
22.2 mm
Height from the surface
18.2 mm
Pin spacing
7.5/7.62 mm
Solder pin dimensions
0.7 x 0.7 mm
Solder pin length
4 mm
Width
10.3 mm
