New
Pre-Order
Date Available: 25/07/2026
Article: 260-346
Brand: Wago
26.54 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

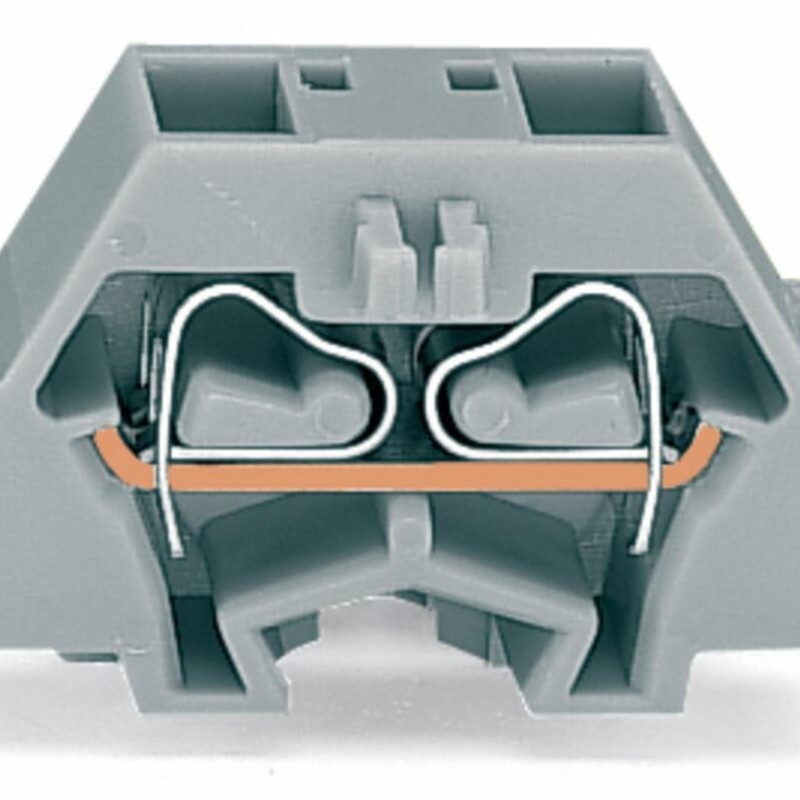

Description 260-346 4-conductor terminal block;without push-buttons;with snap-in mounting foot;orange
Our through terminal block (item number 260-346) simplifies electrical installations. Conductors can only be connected to this through terminal block if their strip length is between 8 and 9 mm . Whether in industrial or building applications, our rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the model, you can use them for either typical through-wiring or potential distribution. This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: (8 x 21.5 x 25.1) mm (width x height x depth). This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
An operating tool is used to operate this mini rail-mount terminal block.
Main attributes 260-346 4-conductor terminal block;without push-buttons;with snap-in mounting foot;orange
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 1.5 mm² / 28 … 16 AWG
Solid conductor
0.08 … 1.5 mm² / 28 … 16 AWG
Strip length
8 … 9 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
4
Number of levels
1
Total number of potentials
1
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
orange
Fire load
0.045 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
2.5 g
Mechanical data
Design
horizontal type
Marking level
Side marking
Mounting type
Snap-in foot
Physical data
Depth
25.1 mm
Height from the surface
17.1 mm
Width
8 mm
Reviews about 260-346 4-conductor terminal block;without push-buttons;with snap-in mounting foot;orange
0
There are no reviews for this product.
Questions and Answers (FAQ) 260-346 4-conductor terminal block;without push-buttons;with snap-in mounting foot;orange
There are no questions about this product.
