Description 2616-1105/020-015 PCB terminal block;lever;16 mm²;gentian blue
- PCB terminal blocks with Push-in CAGE CLAMP® connection and levers
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry
Main attributes 2616-1105/020-015 PCB terminal block;lever;16 mm²;gentian blue
Connection 1
Actuation type
Lever
Conductor connection direction to PCB
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.75 … 25 mm² / 18 … 4 AWG
Fine-stranded conductor; with insulated ferrule
0.75 … 16 mm²
Fine-stranded conductor; with twin ferrule
0.75 … 6 mm²
Fine-stranded conductor; with uninsulated ferrule
0.75 … 16 mm²
Pole number
5
Solid conductor
0.75 … 16 mm² / 18 … 4 AWG
Strip length
18 … 20 mm
Connection data
Clamping units
5
Number of connection types
1
Number of levels
1
Total number of potentials
5
Environmental requirements
Limit temperature range
-60 … +105 °C
Processing temperature
-35 … +60 °C
Material data
Actuator color
orange
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gentian blue
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.405 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
46.6 g
PCB contact
Number of solder pins per potential
3
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (staggered)

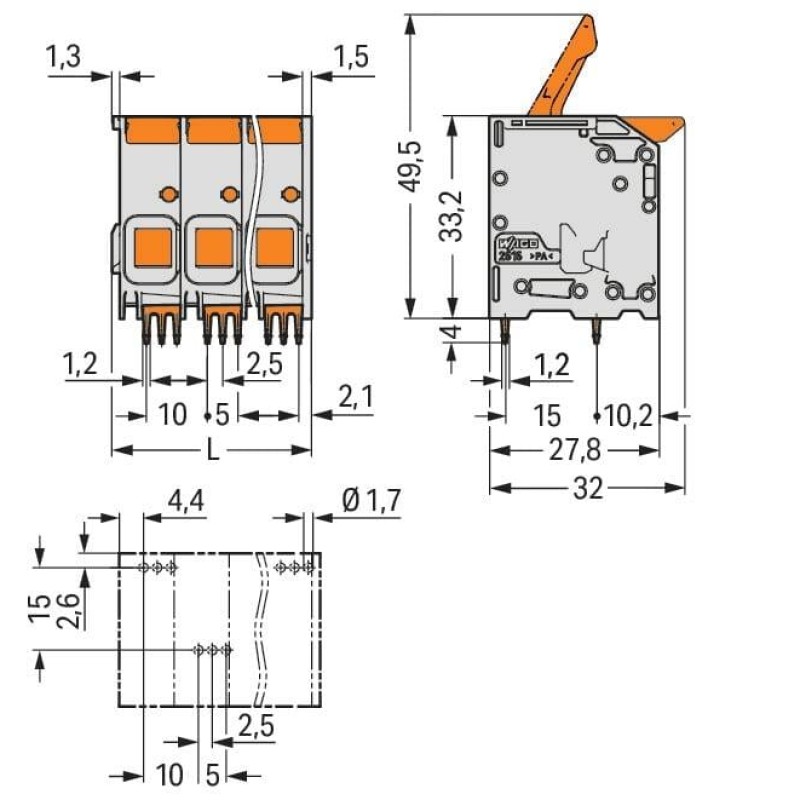

Physical data
Depth
32 mm
Drilled hole diameter with tolerance
1.7 (+0.1) mm
Height
37.2 mm
Height from the surface
33.2 mm
Pin spacing
10 mm
Solder pin dimensions
1.2 x 1.2 mm
Solder pin length
4 mm
Width
52.8 mm
