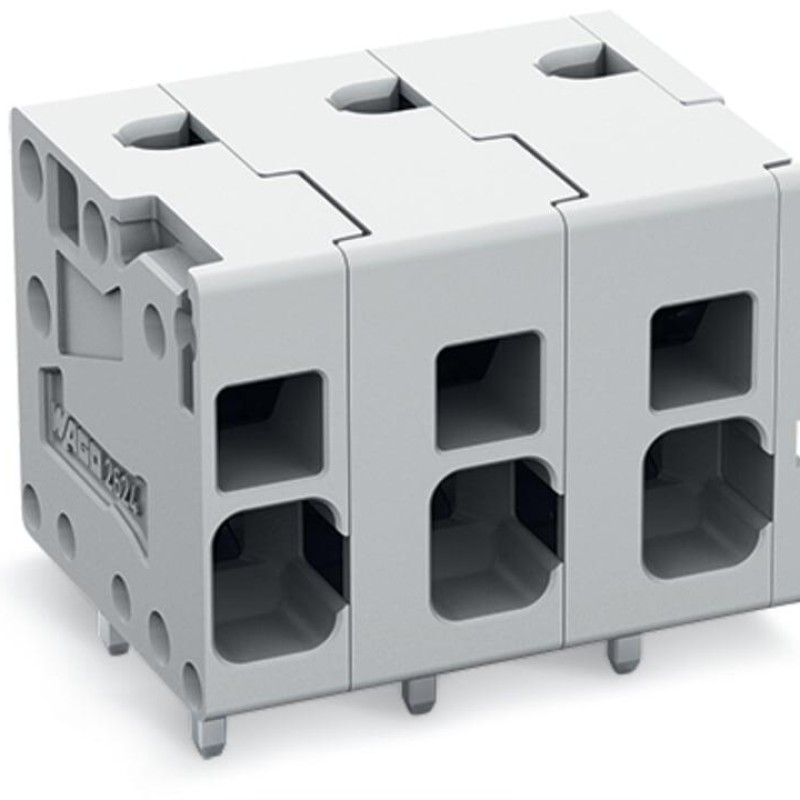

Description 2624-1308 PCB terminal block;4 mm²;Pin spacing 7.5 mm;gray
- PCB terminal blocks with Push-in CAGE CLAMP® connection
- Push-in termination of solid and ferruled conductors
- Ideal for panel feedthrough applications via operation parallel to conductor entry
- Testing can be performed both parallel and perpendicular to conductor entry
Main attributes 2624-1308 PCB terminal block;4 mm²;Pin spacing 7.5 mm;gray
Connection 1
Actuation type
Operating tool
Conductor connection direction to PCB
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.2 … 6 mm² / 24 … 10 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5 mm²
Fine-stranded conductor; with twin ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
8
Solid conductor
0.2 … 6 mm² / 24 … 10 AWG
Strip length
10 … 12 mm
Connection data
Clamping units
8
Number of connection types
1
Number of levels
1
Total number of potentials
8
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Limit temperature range
-60 … +105 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
14.6 g
Mechanical data
Mounting type
Feed-through mounting
PCB contact
Number of solder pins per potential
2
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)

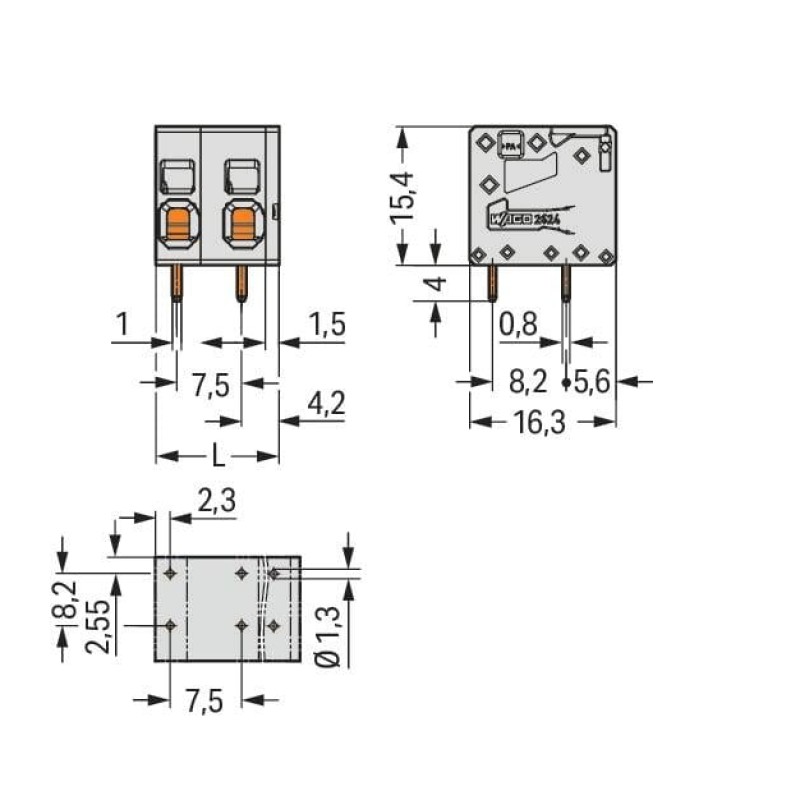

Physical data
Depth
16.3 mm
Drilled hole diameter with tolerance
1.3 (+0.1) mm
Height
19.4 mm
Height from the surface
15.4 mm
Pin spacing
7.5 mm
Solder pin dimensions
0.8 x 1 mm
Solder pin length
4 mm
Width
59 mm
