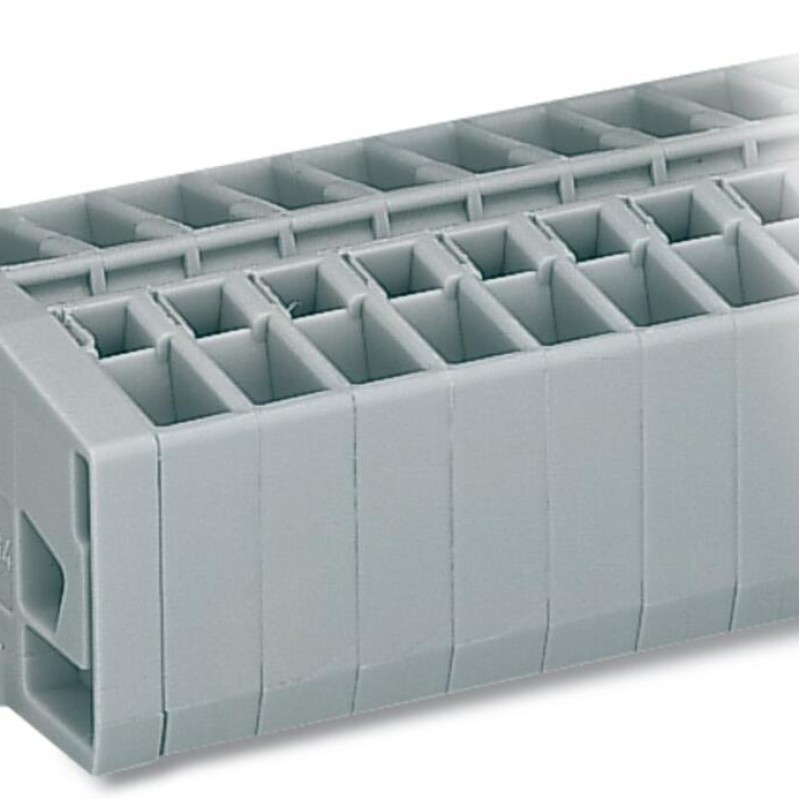

Description 264-109 2-conductor terminal strip;without push-buttons;with fixing flanges;gray
Our through terminal block (item number 264-109) is designed for seamless electrical installations. Strip lengths must be between 8 and 9 mm when connecting conductors to this through terminal block. Our mini rail-mount terminal blocks are perfect for tight spaces thanks to their compact design. You can also choose from a range of mounting and actuation variants, making it easy to select the ideal mini terminal block for each use. This product features conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection provides a reliable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: (70 x 32 x 22.1) mm (width x height x depth). Depending on the type of conductor, this through terminal block is ideal for conductor cross sections ranging from 0.08 mm² to 2.5 mm².
An operating tool is used to operate this mini rail-mount terminal block.
Main attributes 264-109 2-conductor terminal strip;without push-buttons;with fixing flanges;gray
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Note (conductor cross-section)
12 AWG: THHN, THWN
Pole number
9
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
8 … 9 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
18
Number of levels
1
Total number of potentials
9
Material data
Color
gray
Fire load
0.736 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
36.7 g
Mechanical data
Design
horizontal type
Marking level
Center marking
Mounting type
Mounting flange

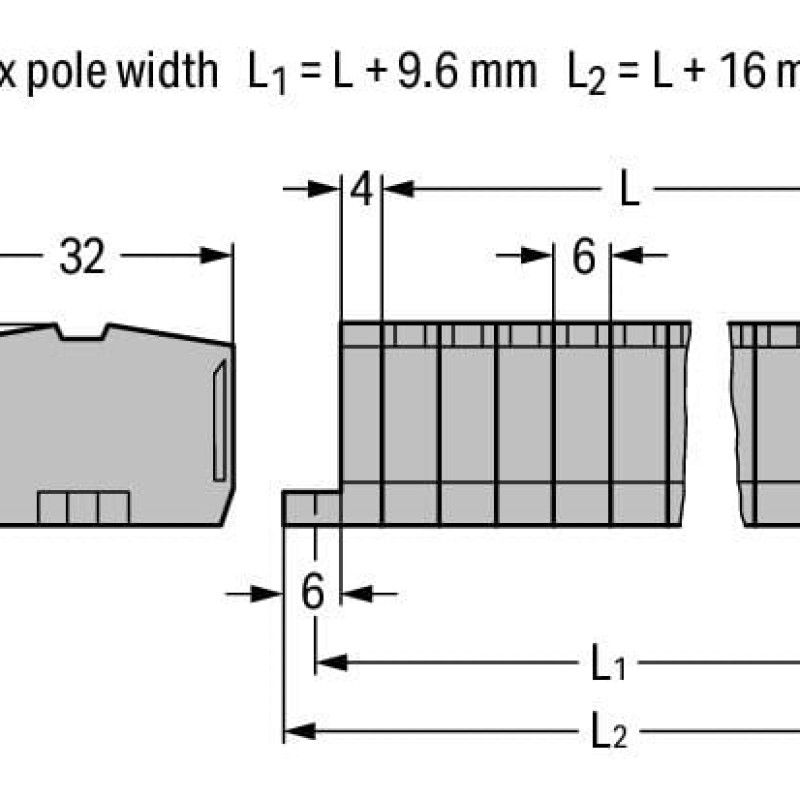

Physical data
Depth
32 mm
Height from the surface
22.1 mm
Module width
6 mm
Width
70 mm
