New
Pre-Order
Date Available: 11/06/2026
Article: 264-187
Brand: Wago
311.03 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

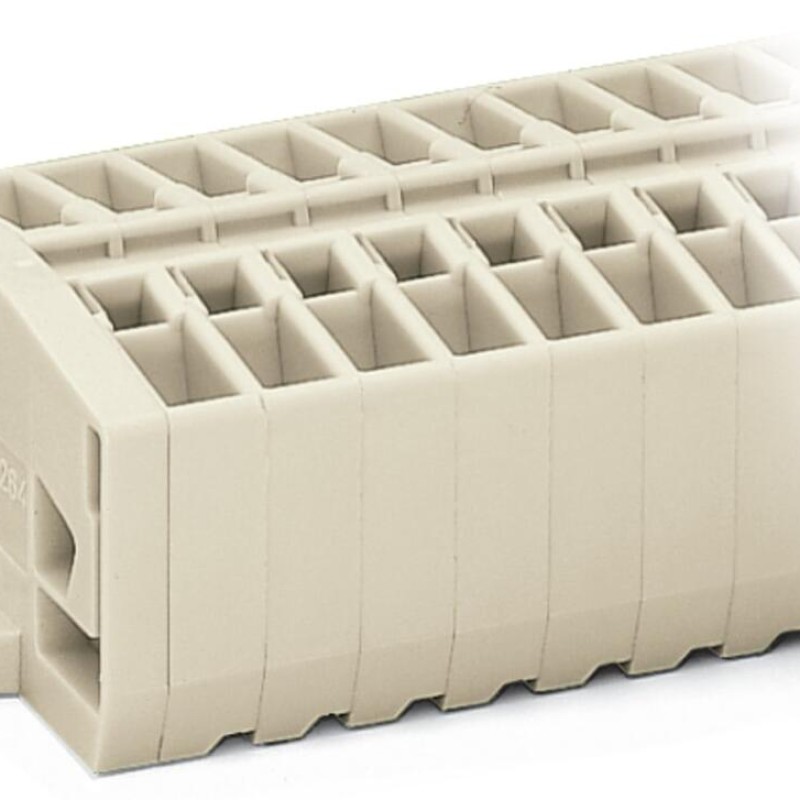

Description 264-187 2-conductor terminal strip; without push-buttons; suitable for Ex e II applications; with snap-in mounting feet; 7-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; light gray

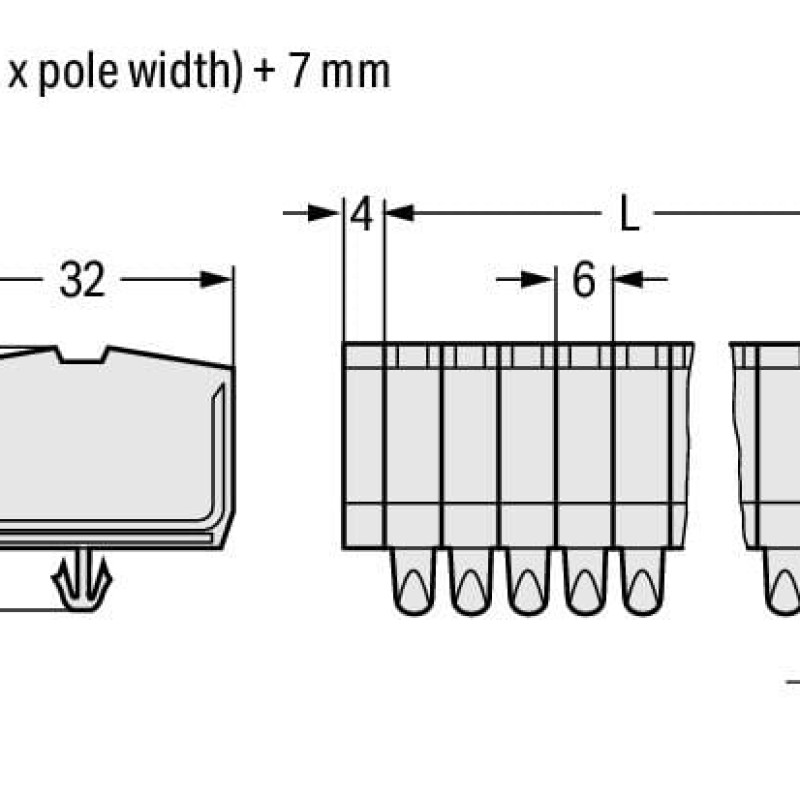

Quick and easy connections are guaranteed with this through terminal block (item number 264-187). Conductors can only be connected to this through terminal block if their strip length is between 8 and 9 mm . Our mini rail-mount terminal blocks are the perfect choice when space is limited. A large selection of mounting and actuation variants means you can find a suitable mini terminal block for every purpose. This also means you can adapt the terminal blocks to your unique requirements. This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. The dimensions are (49 x 32 x 22.1) mm (width x height x depth). This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm².
An operating tool is used to operate this mini rail-mount terminal block.
Main attributes 264-187 2-conductor terminal strip; without push-buttons; suitable for Ex e II applications; with snap-in mounting feet; 7-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; light gray
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Note (conductor cross-section)
12 AWG: THHN, THWN
Pole number
7
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
8 … 9 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
14
Number of levels
1
Total number of potentials
7
Material data
Color
light gray
Fire load
0.581 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
29.9 g
Mechanical data
Design
horizontal type
Marking level
Center marking
Mounting type
Snap-in foot
Physical data
Depth
32 mm
Height from the surface
22.1 mm
Module width
6 mm
Width
49 mm
