Description 270-564 3-conductor sensor supply terminal block;Internal commoning, 9 A;with colored conductor entries;orange

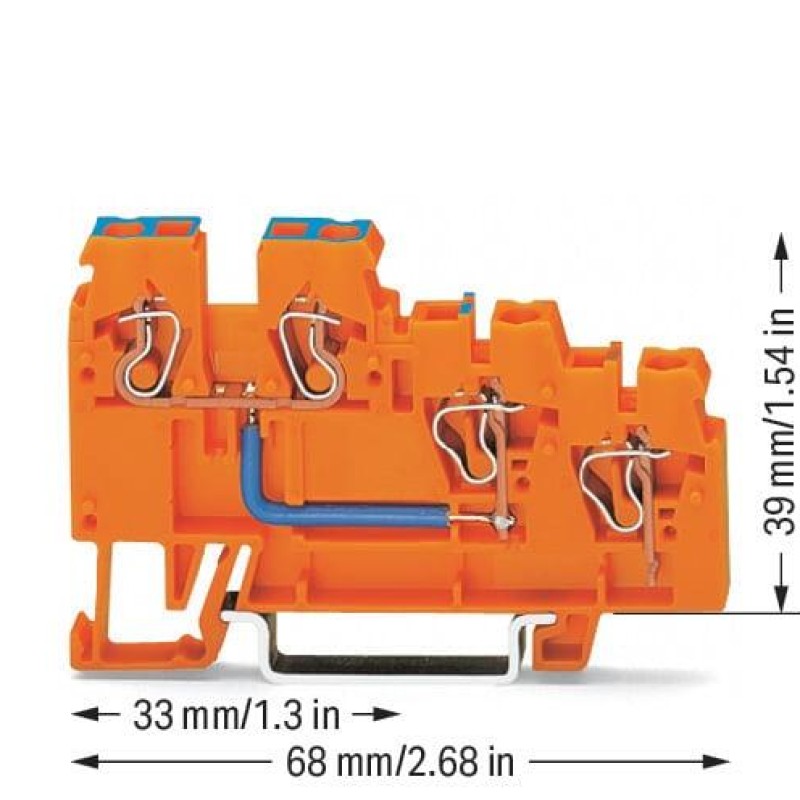

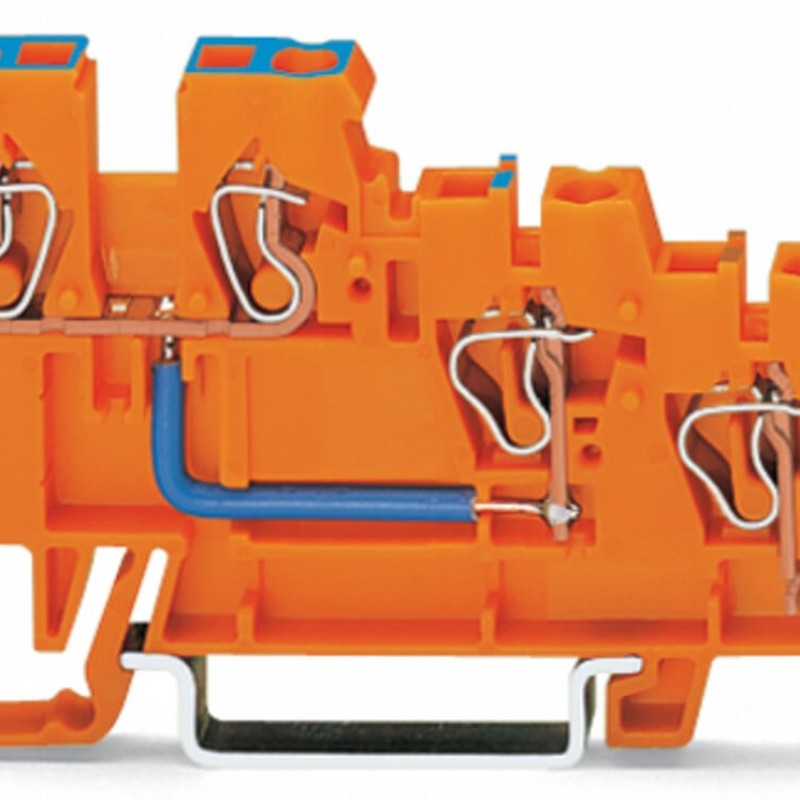

This sensor terminal block (item number 270-564) is designed for seamless electrical installations. Conductors should only be connected to this sensor terminal block if their strip length is between 6 and 7 mm . This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our celebrated universal connection known as CAGE CLAMP® is the industry standard when it comes to connection technology and electrical interconnections. The dimensions are (5 x 68 x 45) mm (width x height x depth). This sensor terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm².
Main attributes 270-564 3-conductor sensor supply terminal block;Internal commoning, 9 A;with colored conductor entries;orange
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Note (conductor cross-section)
12 AWG: THHN, THWN
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
6 … 7 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
4
Number of levels
3

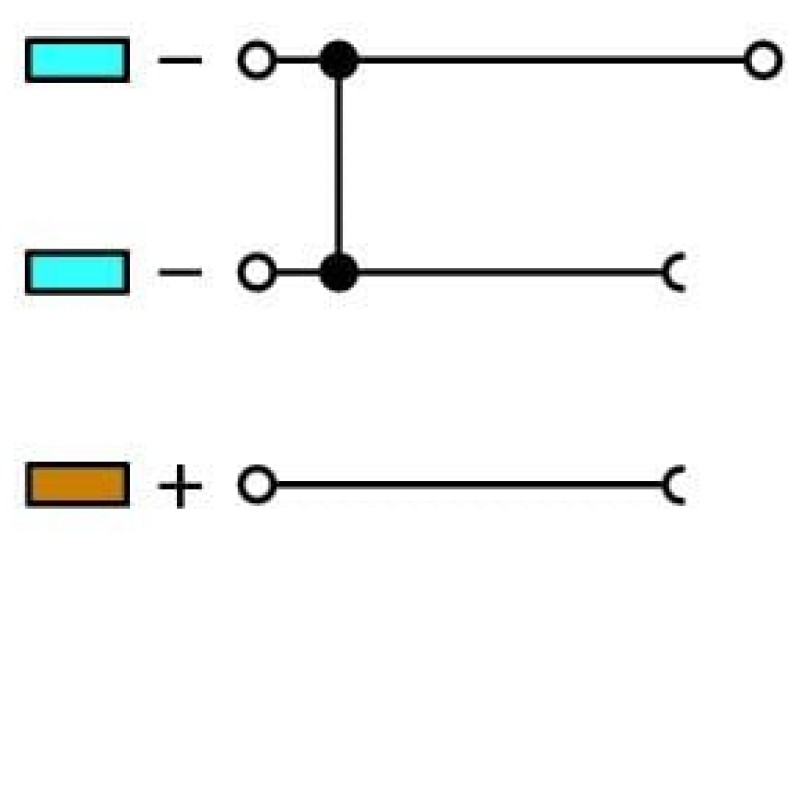

Total number of potentials
2
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
orange
Fire load
1.376 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
9.3 g
Mechanical data
Design
horizontal type
Marking level
Side marking
Mounting type
DIN-35 rail
Physical data
Depth from upper-edge of DIN-rail
39 mm
Height
68 mm
Width
5 mm
