Article: 272-105/130-000
Brand: Wago
86.53 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

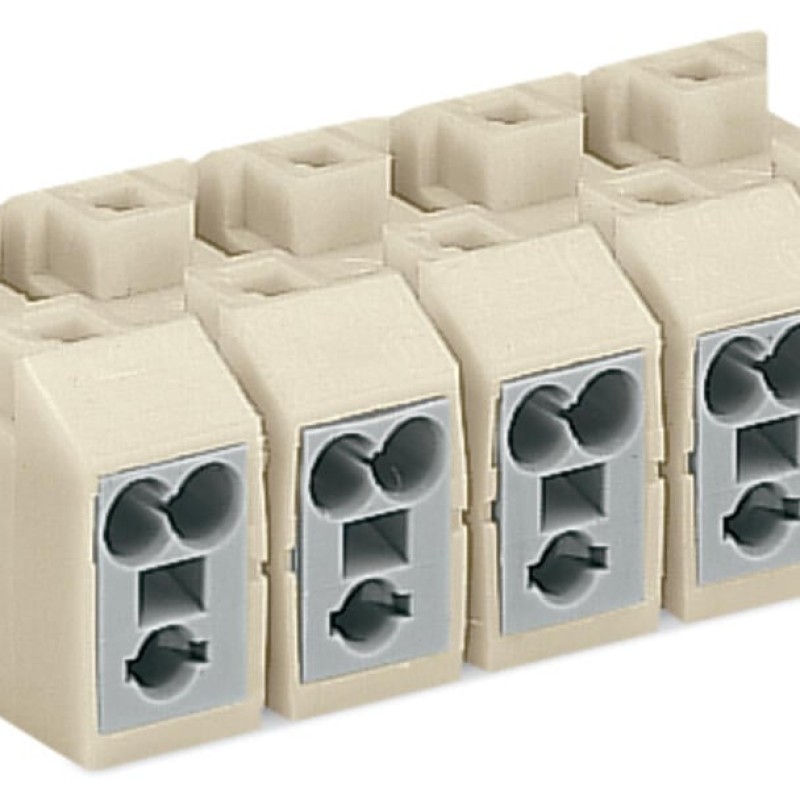

Description 272-105/130-000 Power supply connector; without push-buttons; without snap-in mounting feet; without ground contact; 5-pole; 2,50 mm²; white

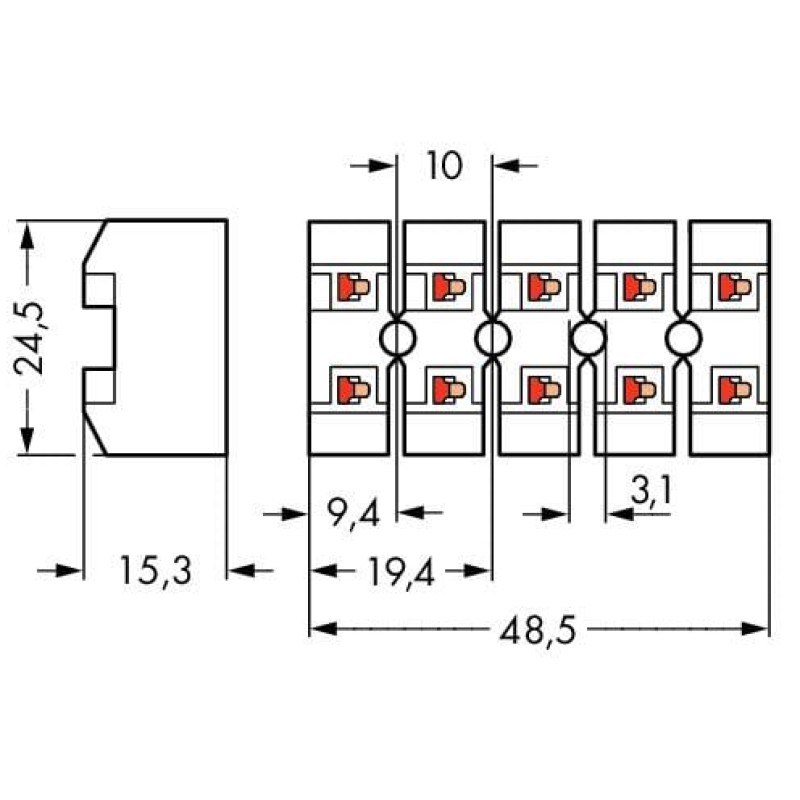

Our field-wiring terminal block (item number 272-105/130-000) makes connections quick and easy. Conductors should only be connected to this field-wiring terminal block if their strip length is between 8 and 9 mm . This product features one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing you to clamp the conductor in place more quickly and easily. The dimensions are (48.5 x 15.3 x 24.5) mm (width x height x depth).
Main attributes 272-105/130-000 Power supply connector; without push-buttons; without snap-in mounting feet; without ground contact; 5-pole; 2,50 mm²; white
Connection 1
Connection technology
PUSH WIRE®
Pole number
5
Strip length
8 … 9 mm
Connection data
Clamping units
20
Number of connection types
1
Total number of potentials
5
Material data
Color
white
Fire load
0.397 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
15.6 g
Physical data
Depth
24.5 mm
Height
15.3 mm
Width
48.5 mm
