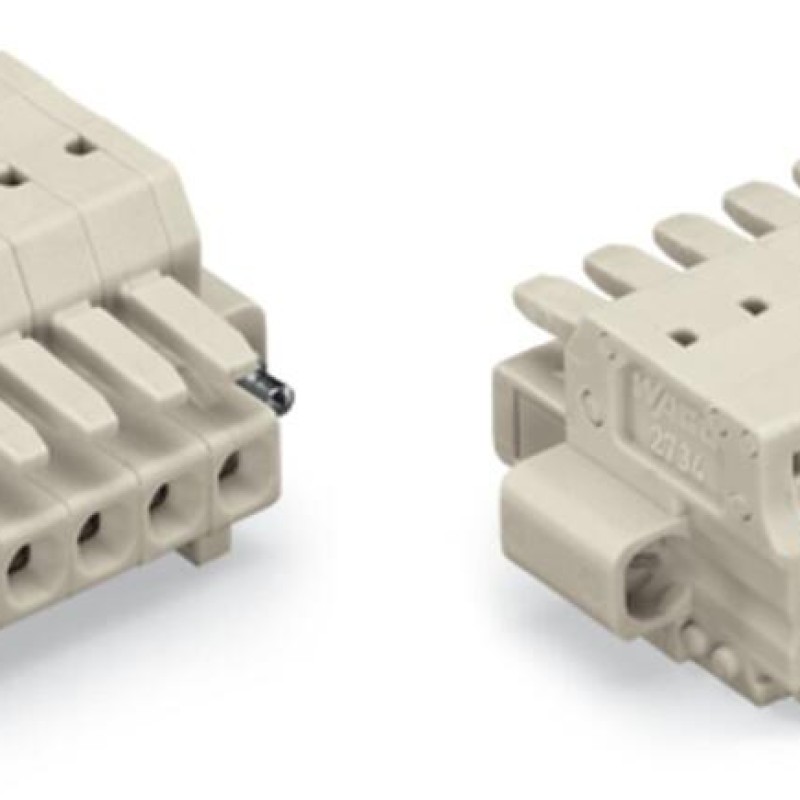

Description 2734-114/107-000 1-conductor female connector;push-button;Push-in CAGE CLAMP®;light gray
- Universal connection for all conductor types
- Easy-to-use design does not require specialty tools
- Ability to wire while mated
- Simple, push-in termination of solid and ferruled conductors
- Integrated test ports for testing parallel to the conductor entry
- 100% protected against mismating
- Coding option available
Main attributes 2734-114/107-000 1-conductor female connector;push-button;Push-in CAGE CLAMP®;light gray
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation type
Push-button
Conductor entry direction to mating direction
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.2 … 1.5 mm² / 24 … 16 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 0.75 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Pole number
14
Solid conductor
0.2 … 1.5 mm² / 24 … 16 AWG
Strip length
8 … 9 mm
Connection data
Clamping units
14
Number of connection types
1
Number of levels
1
Total number of potentials
14
Environmental requirements
Limit temperature range
-60 … +100 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
light gray
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.241 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
13.1 g
Mechanical data
Anti-rotation protection
Yes
Variable coding
Yes
Physical data
Depth
20.4 mm
Height
13.5 mm
Pin spacing
3.5 mm
Width
58.5 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
Screw flange
Mismating protection
Yes
Plugging without loss of pin spacing
No
