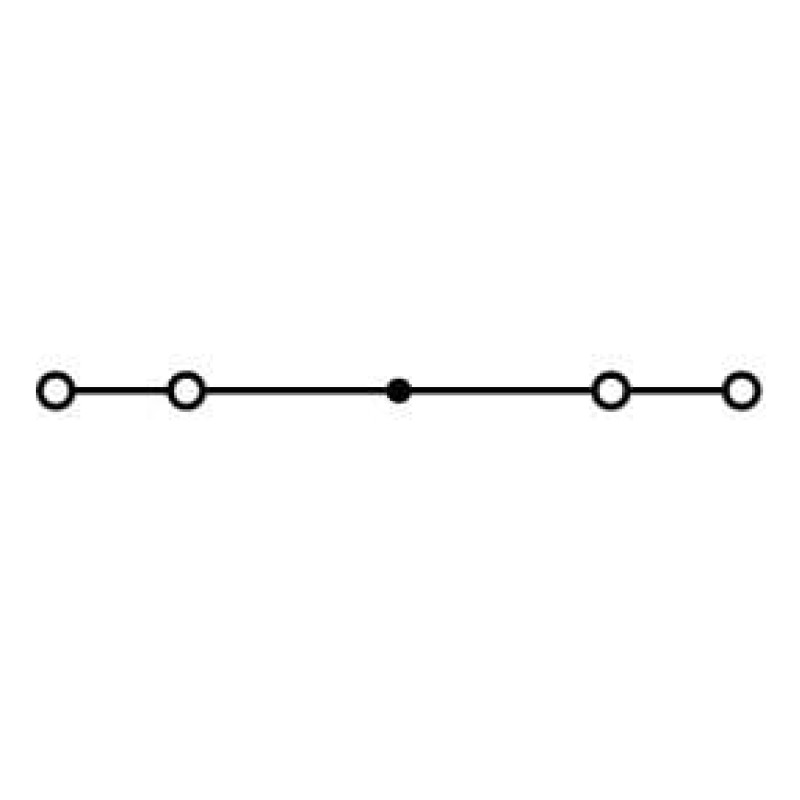

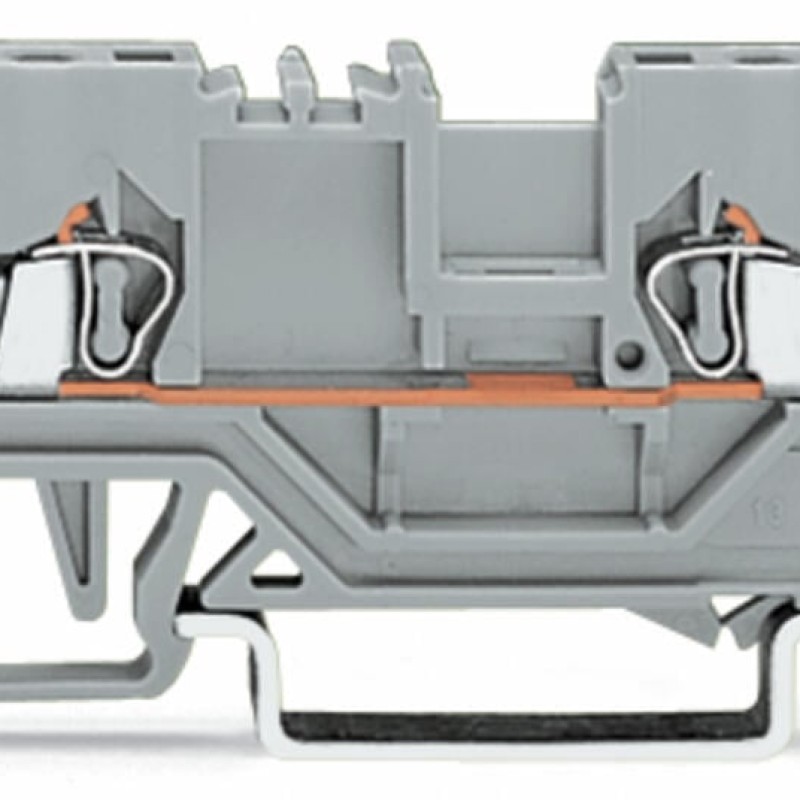

Description 279-835 4-conductor through terminal block;1.5 mm²;center marking;black
This through terminal block (item number 279-835) is designed to connect conductors quickly and easily. Conductors can only be connected to this through terminal block if their strip length is between 8 and 9 mm . Whether for use in industry or building installations, our rail-mount through terminal blocks allow you to quickly and securely connect electrical conductors. They’re perfect for either classic through-wiring or distributing potential, depending on the variant. Featuring conductor terminals along with CAGE CLAMP®, this connector delivers reliable performance. Our CAGE CLAMP® connection provides a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: (4 x 73 x 31.5) mm (width x height x depth). This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
This through rail-mount terminal block is operated with an operating tool.
Main attributes 279-835 4-conductor through terminal block;1.5 mm²;center marking;black
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 1.5 mm² / 28 … 16 AWG
Solid conductor
0.08 … 1.5 mm² / 28 … 16 AWG
Strip length
8 … 9 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
4
Number of levels
1
Total number of potentials
1
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
black
Fire load
0.116 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
6.3 g
Mechanical data
Marking level
Center marking
Mounting type
DIN-35 rail
Physical data
Depth from upper-edge of DIN-rail
27 mm
Height
73 mm
Width
4 mm
