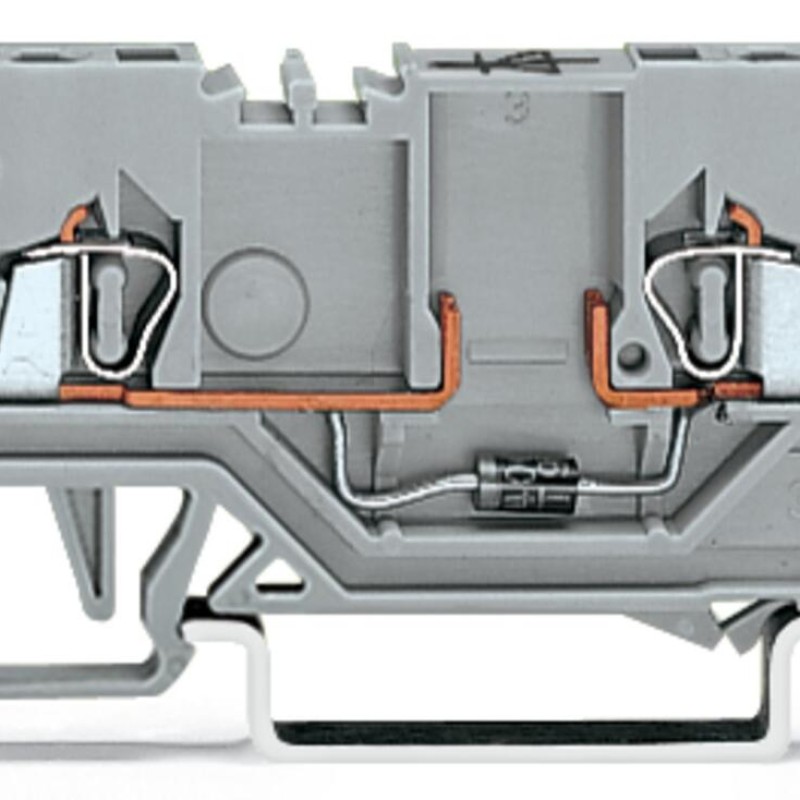

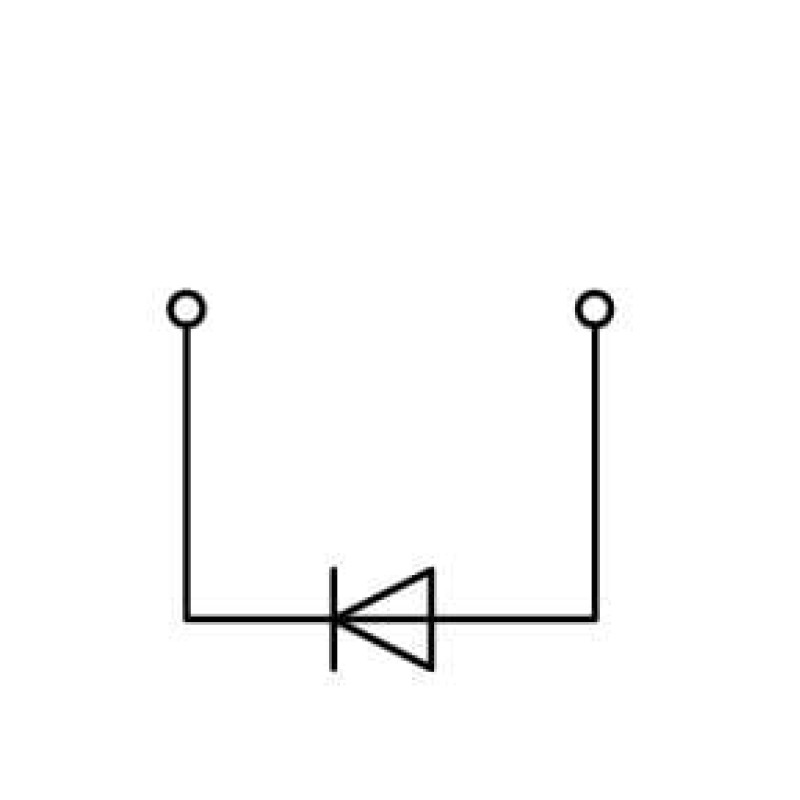

Description 279-915/281-411 Component terminal block;2-conductor;with diode 1N4007;gray
This component terminal block with diode (item number 279-915/281-411) is designed for simple and secure connections. Conductors can only be connected to this component terminal block with diode if their strip length is between 8 and 9 mm . This product features conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. The item's dimensions are (4 x 52 x 31.5) mm (width x height x depth). Depending on the type of conductor, this component terminal block with diode is suitable for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
Main attributes 279-915/281-411 Component terminal block;2-conductor;with diode 1N4007;gray
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 1.5 mm² / 28 … 16 AWG
Solid conductor
0.08 … 1.5 mm² / 28 … 16 AWG
Strip length
8 … 9 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
2
Number of levels
1
Total number of potentials
1
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
gray
Fire load
0.099 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
4.6 g
Mechanical data
Design
horizontal type
Marking level
Center marking
Mounting type
DIN-35 rail
Physical data
Depth from upper-edge of DIN-rail
27 mm
Height
52 mm
Width
4 mm
