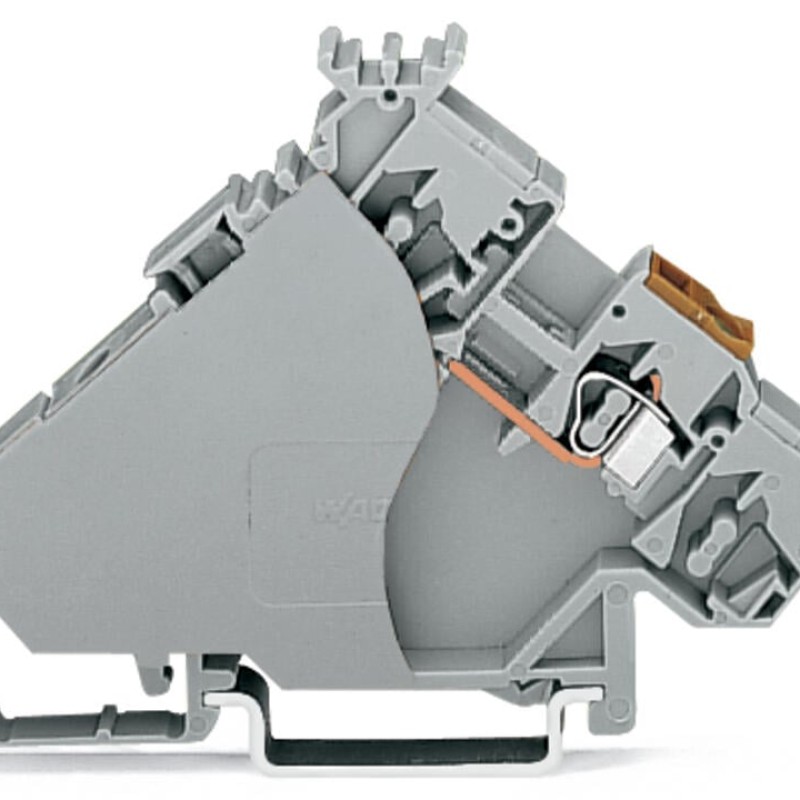

Description 280-556 3-conductor sensor/actuator terminal block;with colored conductor entries;2.5 mm²;gray
Our actuator terminal block (item number 280-556) simplifies electrical installations. Ensure that the strip lengths are between 8 and 9 mm when connecting conductors to this actuator terminal block. Featuring conductor terminals along with CAGE CLAMP®, this connector delivers reliable performance. Our renowned universal connection known as CAGE CLAMP® is the industry standard when it comes to connection technology and electrical interconnections. Depending on the conductor type, this actuator terminal block is ideal for conductor cross sections ranging from 0.08 mm² to 2.5 mm².
Main attributes 280-556 3-conductor sensor/actuator terminal block;with colored conductor entries;2.5 mm²;gray
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connectable conductor materials (note)
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Note (conductor cross-section)
12 AWG: THHN, THWN
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
8 … 9 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
1
Number of levels
3
Total number of potentials
1
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
gray
Fire load
0.376 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
9.7 g
Mechanical data
Design
angled
Marking level
Center marking
Mounting type
DIN-35 rail
Physical data
Depth from upper-edge of DIN-rail
55.5 mm

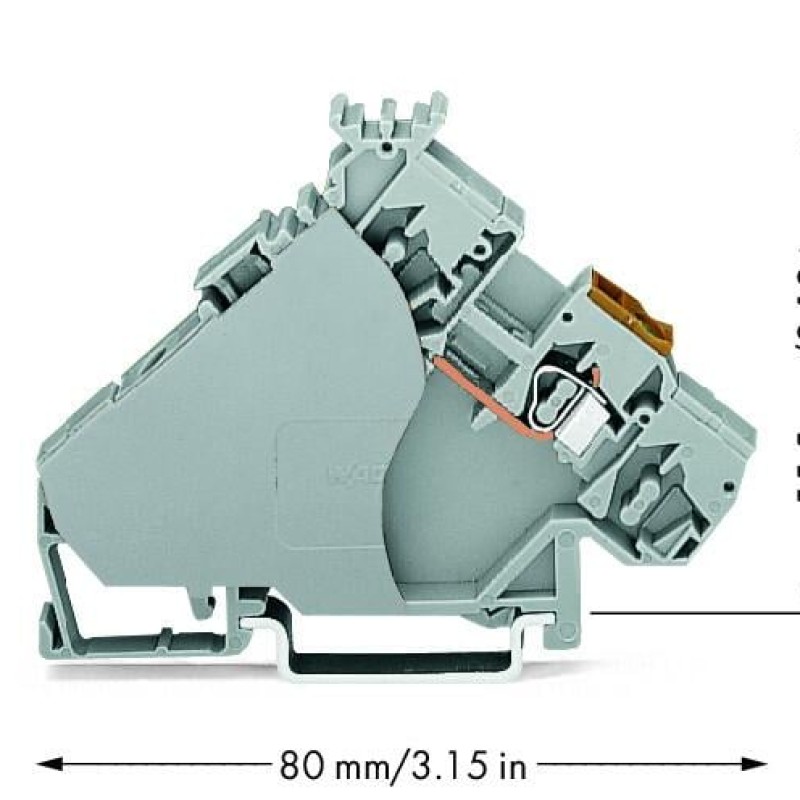

Height
80 mm
Width
6 mm
