280-623/281-410 Component terminal block;4-conductor;with diode 1N4007;gray

Name: 280-623/281-410 Component terminal block;4-conductor;with diode 1N4007;gray
Brand: Wago
Price: 215.40 UAH
Availability: InStock

New

In stock

Article: 280-623/281-410

Brand: Wago

215.40 грн.

Found it cheaper?

Short description

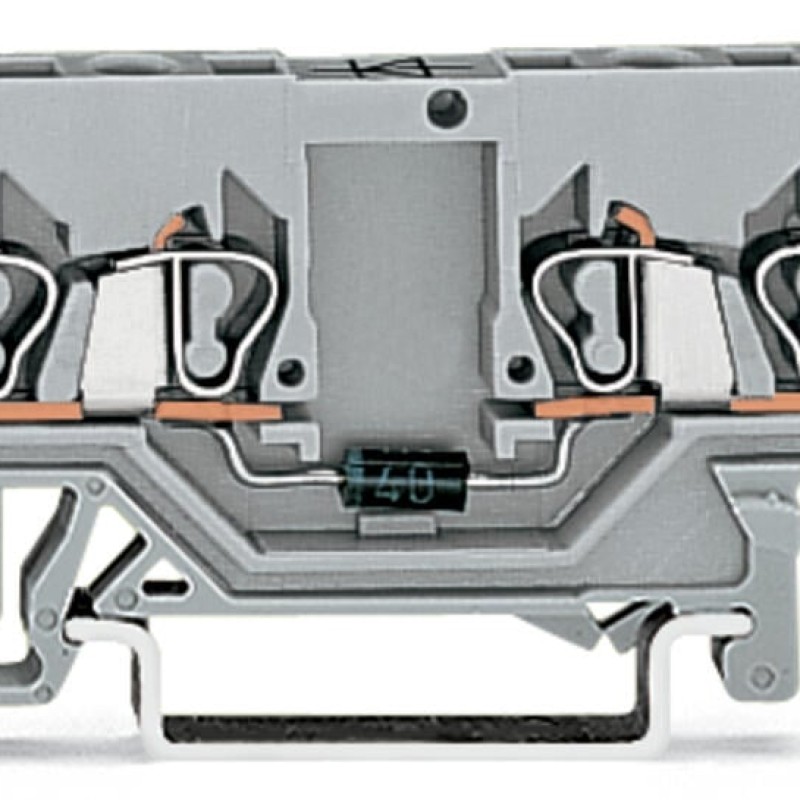

Description 280-623/281-410 Component terminal block;4-conductor;with diode 1N4007;gray

This component terminal block with diode (item number 280-623/281-410) is designed to connect conductors quickly and easily. Conductors should only be connected to this component terminal block with diode if their strip length is between 8 and 9 mm . This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don't need to crimp ferrules. Depending on the type of conductor, this component terminal block with diode is ideal for conductor cross sections ranging from 0.08 mm² to 2.5 mm².

Main attributes 280-623/281-410 Component terminal block;4-conductor;with diode 1N4007;gray

Connection 1

Actuation type Operating tool

Connectable conductor materials Copper

Connectable conductor materials (note) Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

Connection technology CAGE CLAMP^®

Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 14 AWG

Solid conductor 0.08 … 2.5 mm² / 28 … 14 AWG

Strip length 8 … 9 mm

Wiring direction Front-entry wiring

Connection data

Clamping units 4

Number of levels 1

Total number of potentials 1

Environmental requirements

Continuous operating temperature -60 … +105 °C

Processing temperature -35 … +85 °C
