Article: 721-332/008-000
Brand: Wago
78.32 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

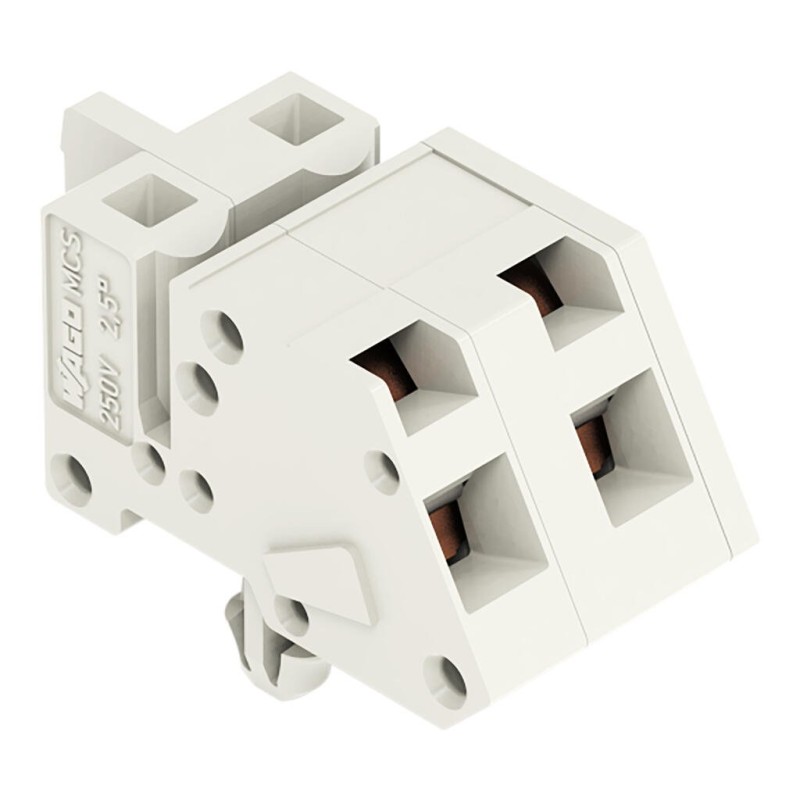

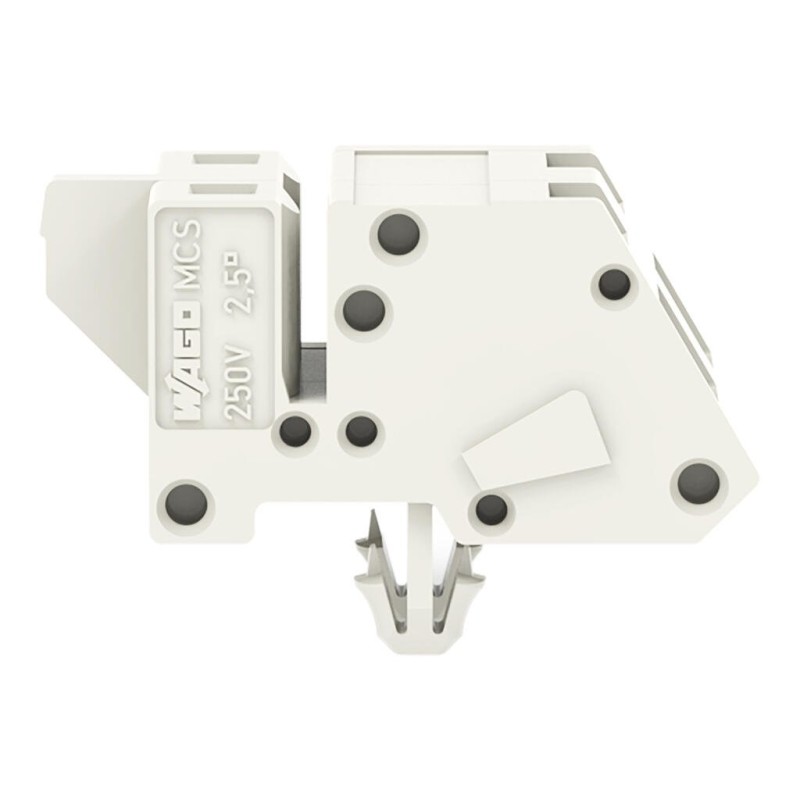

Description 721-332/008-000 1-conductor female connector, angled;CAGE CLAMP®;2.5 mm²;light gray
- Universal connection for all conductor types
- Available with snap-in mounting feet or flanges for panel or through-panel mounting
- Mounting adapter allows versions with snap-in mounting feet to be DIN-35 rail mounted
- Easy conductor termination, even when halves are mated
- 100% protected against mismating
Main attributes 721-332/008-000 1-conductor female connector, angled;CAGE CLAMP®;2.5 mm²;light gray
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation type
Operating tool
Conductor entry direction to mating direction
90 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
2
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
7 … 8 mm
Connection data
Clamping units
2
Number of connection types
1
Number of levels
1
Total number of potentials
2
Environmental requirements
Limit temperature range
-60 … +85 °C
Processing temperature
-35 … +60 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
light gray
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.09 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
4 g
Mechanical data
Anti-rotation protection
Yes
Design
angled; mountable
Housing sheet thickness
0.6 … 1.2 mm
Mounting type
Snap-in foot
Variable coding
No

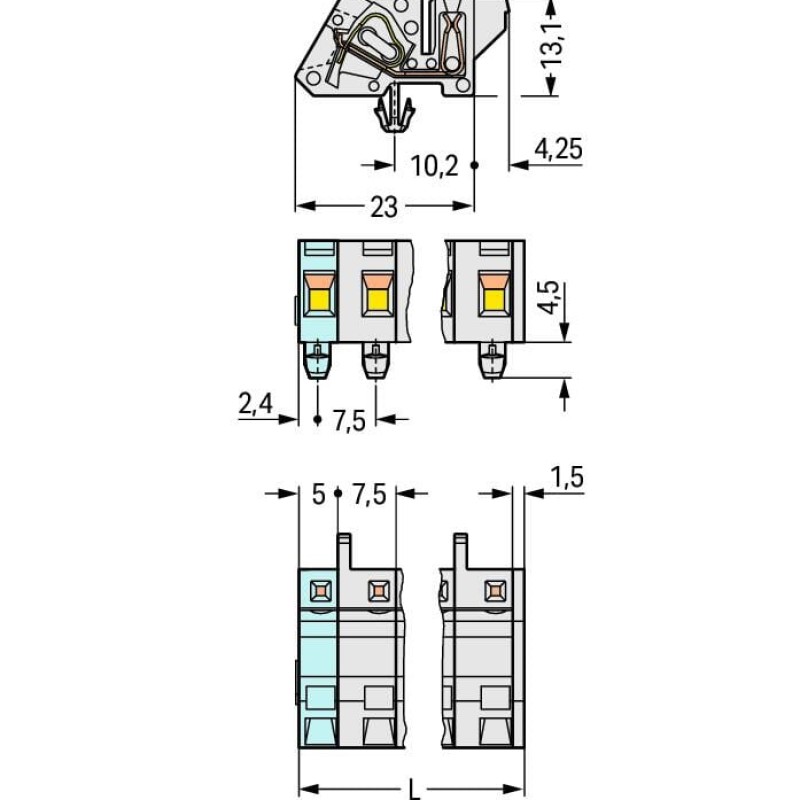

Physical data
Depth
27.25 mm
Drilled hole diameter for snap-in mounting foot with tolerance
3.5 (+0.1) mm
Height
17.6 mm
Height from the surface
13.1 mm
Pin spacing
7.5 mm
Width
14 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
none
Mismating protection
Yes
Plugging without loss of pin spacing
No
