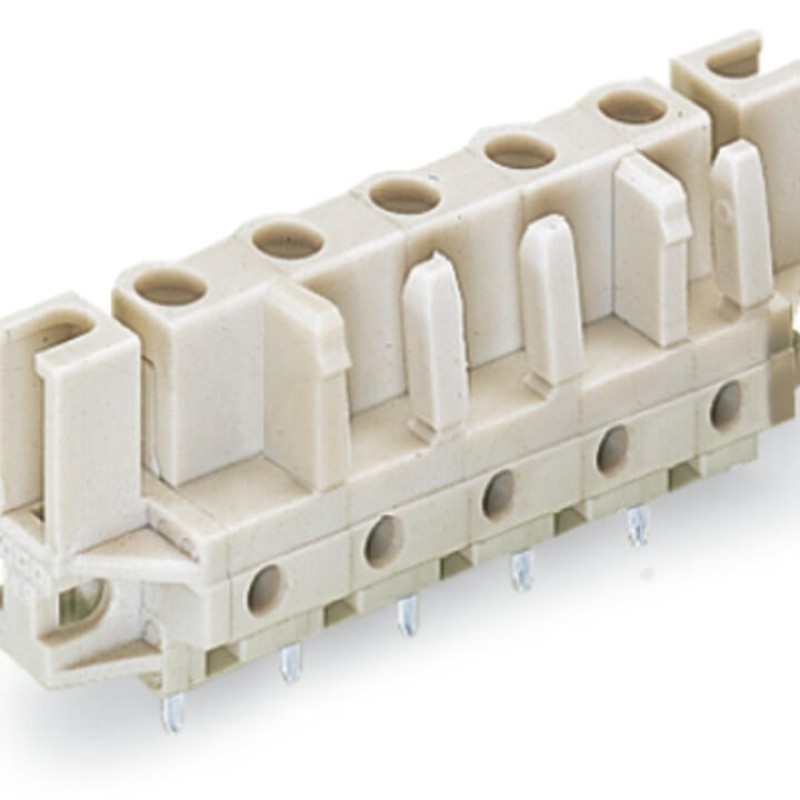

Description 722-741/047-000 THT female header; straight; Pin spacing 7.5 mm; 11-pole; 100% protected against mismating; Spacer flange; 0.6 x 1.0 mm solder pin; light gray
- Horizontal or vertical PCB mounting via straight or angled solder pins
- For board-to-board and board-to-wire connections
- Touch-proof PCB outputs
- Easy-to-identify PCB inputs and outputs
- 100 % protected against mismating
- With coding fingers
Main attributes 722-741/047-000 THT female header; straight; Pin spacing 7.5 mm; 11-pole; 100% protected against mismating; Spacer flange; 0.6 x 1.0 mm solder pin; light gray
Connection 1
Pole number
11
Connection data
Number of connection types
1
Number of levels
1
Total number of potentials
11
Environmental requirements
Limit temperature range
-60 … +85 °C
Processing temperature
-35 … +60 °C
Environmental Testing (Environmental Conditions)
Acceleration
5g (highest test level used for all axes)
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Frequency
f1 = 5 Hz to f2 = 150 Hz
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Monitoring for contact faults/interruptions
Passed
Number of shocks per axis
3 pos. und 3 neg.
Shock duration
30 ms
Shock form
Half sine
Shock test
Test passed according to Section 10 of the standard
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Spectrum/Installation location
Service life test, Category 1, Class A/B
Test directions
X, Y and Z axes
Test duration per axis
5 h
Test procedure (Railway applications – Roll
DIN EN 61373 (VDE 0115-0106):2011-04
Test specification Railway applications – Rolling stock – Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Vibration and shock stress for rolling stock equipment
Passed
Voltage drop measurement before and after each axis
Passed
Material data
Color
light gray
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.264 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
13.1 g
Mechanical data
Anti-rotation protection
Yes
Mounting type
Panel mounting
Variable coding
Yes
PCB contact
Number of solder pins per potential
1
PCB contact
THT
Solder pin arrangement
over the entire female connector (in-line)

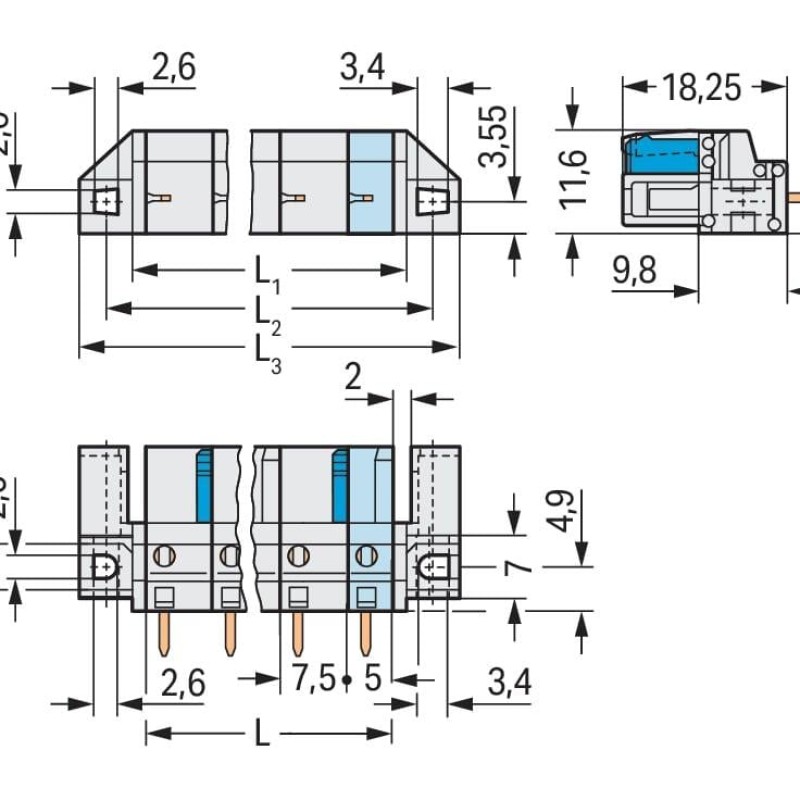

Physical data
Depth
11.6 mm
Drilled hole diameter with tolerance
1.3 (+0.1) mm
Height
23.25 mm
Height from the surface
18.25 mm
Pin spacing
7.5 mm
Solder pin dimensions
0.6 x 1 mm
Solder pin length
5 mm
Width
94.8 mm
Plug-in connection
Connector (connection type)
for PCB
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
none
Mating direction to the PCB
90 °
Mismating protection
Yes
Plugging without loss of pin spacing
No
