Description 734-234/105-604/997-405 THR male header;1.0 x 1.0 mm solder pin;straight;black
- THR male headers for reflow soldering in SMT applications

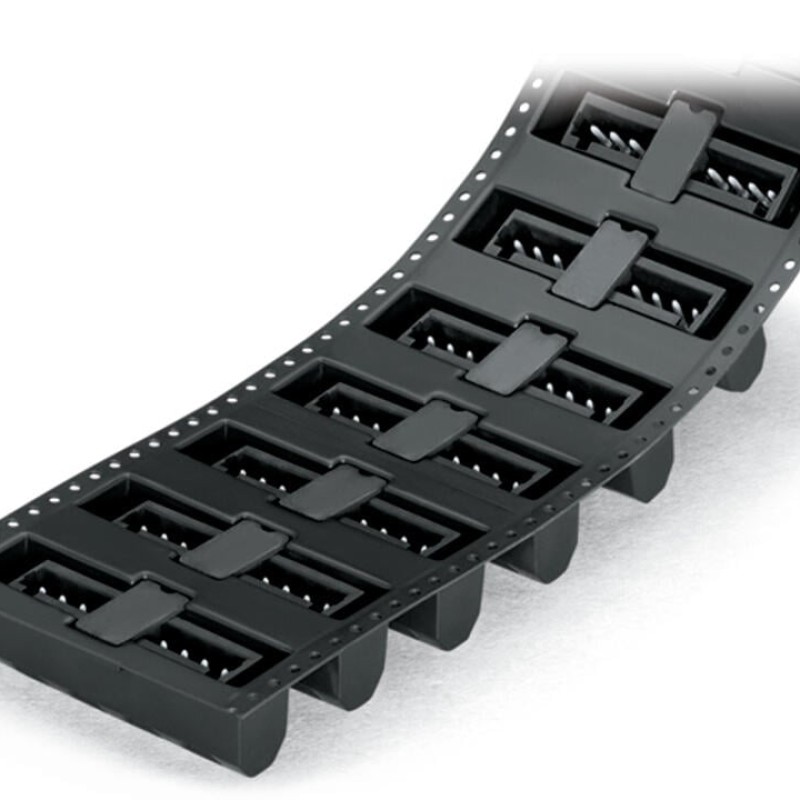

- Available in tape-and-reel packaging for automated pick-and-place PCB assembly
- Optimal thermal penetration via pin enclosure design provides lower soldering temperatures
- 100% protected against mismating
- Coding via coding fingers
Main attributes 734-234/105-604/997-405 THR male header;1.0 x 1.0 mm solder pin;straight;black
Connection 1
Pole number
4
Connection data
Number of connection types
1
Number of levels
1
Total number of potentials
4
Environmental requirements
Limit temperature range
-60 … +100 °C
Processing temperature
-35 … +60 °C
Material data
Color
black
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.032 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyphthalamide (PPA GF)
Material group
I
MSL per J-STD 020D
1
Weight
1.1 g
Mechanical data
Anti-rotation protection
Yes
Variable coding
Yes
PCB contact
Number of solder pins per potential
1
PCB contact
THR
Solder pin arrangement
over the entire male connector (in-line)

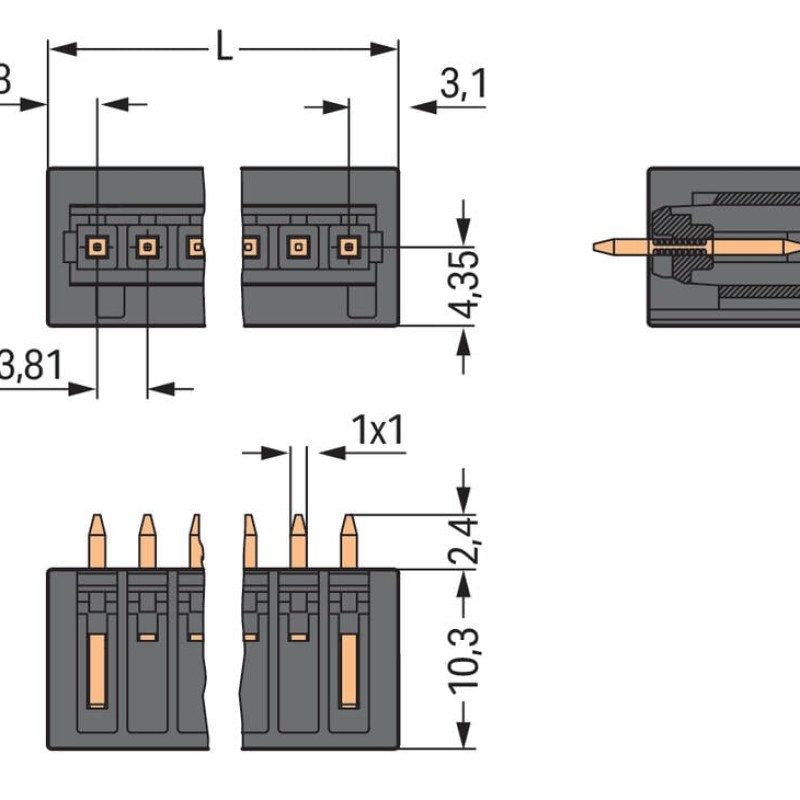

Physical data
Depth
8.5 mm
Height
12.7 mm
Height from the surface
10.3 mm
Pin spacing
3.81 mm
Plated through-hole diameter (THR)
1.4 (+0.1) mm

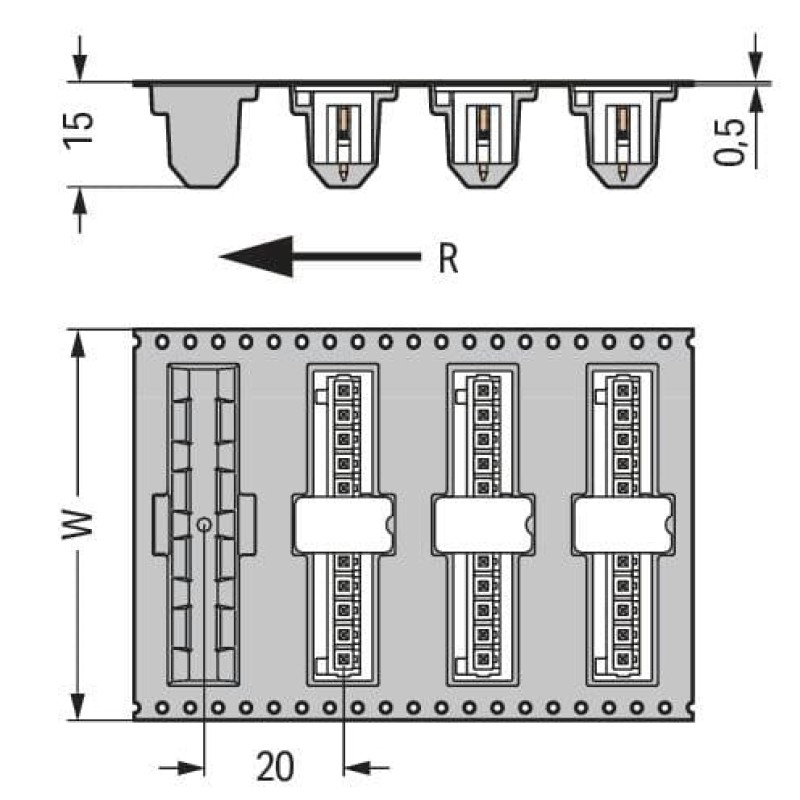

Reel diameter of tape-and-reel packaging
330 mm
Solder pin dimensions
1 x 1 mm
Solder pin length
2.4 mm
Tape width
32 mm
Width
17.33 mm
Plug-in connection
Connector (connection type)
for PCB
Contact type (pluggable connector)
Male connector/plug
Locking of plug-in connection
none
Mating direction to the PCB
90 °
Mismating protection
Yes
Plugging without loss of pin spacing
No
