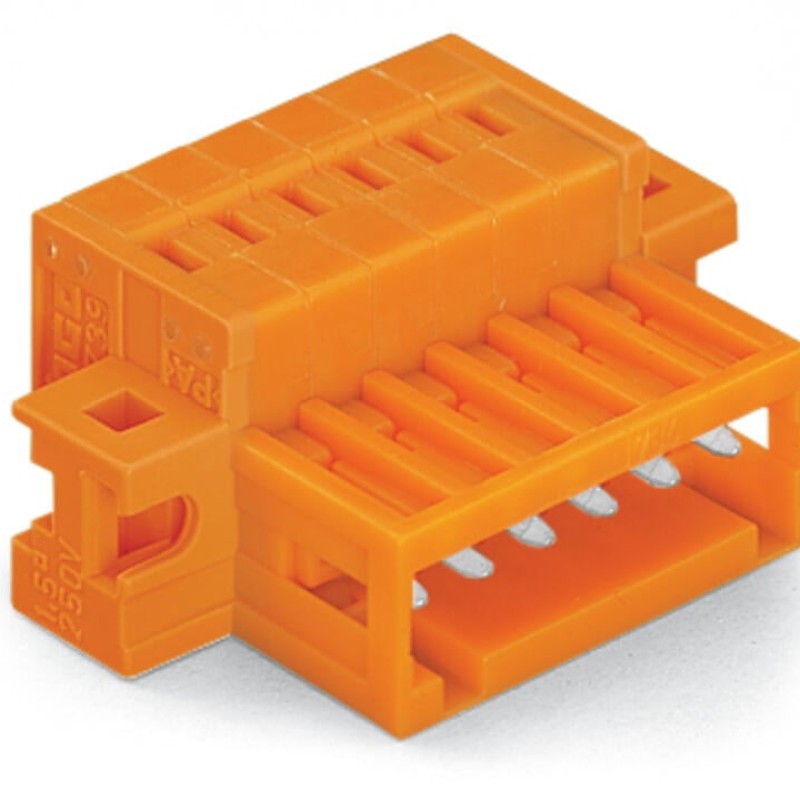

Description 734-336/019-000 1-conductor male connector;CAGE CLAMP®;1.5 mm²;orange
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
- For wire-to-wire and board-to-wire connections
- Strain relief plates and housings for factory and field assembly
- 100% protected against mismating
- Coding option available
Main attributes 734-336/019-000 1-conductor male connector;CAGE CLAMP®;1.5 mm²;orange
Connection 1
Actuation direction 1
Operation parallel to conductor entry
Actuation direction 2
Operation perpendicular to conductor entry
Actuation type
Operating tool
Conductor entry direction to mating direction
0 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 1.5 mm² / 28 … 14 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Note (conductor cross-section)
Terminating 1.5 mm² conductors is possible; however insulation diameter does not allow clamping units to be terminated in a row.
Pole number
6
Solid conductor
0.08 … 1.5 mm² / 28 … 14 AWG
Strip length
6 … 7 mm
Connection data
Clamping units
6
Number of connection types
1
Number of levels
1
Total number of potentials
6
Environmental requirements
Limit temperature range
-60 … +100 °C
Processing temperature
-35 … +60 °C
Environmental Testing (Environmental Conditions)
Acceleration
5g (highest test level used for all axes)
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Frequency
f1 = 5 Hz to f2 = 150 Hz
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Monitoring for contact faults/interruptions
Passed
Number of shocks per axis
3 pos. und 3 neg.
Shock duration
30 ms
Shock form
Half sine
Shock test
Test passed according to Section 10 of the standard
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Spectrum/Installation location
Service life test, Category 1, Class A/B
Test directions
X, Y and Z axes
Test duration per axis
5 h
Test procedure (Railway applications – Roll
DIN EN 61373 (VDE 0115-0106):2011-04
Test specification Railway applications – Rolling stock – Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Vibration and shock stress for rolling stock equipment
Passed
Voltage drop measurement before and after each axis
Passed
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
orange
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.138 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
6.2 g
Mechanical data
Anti-rotation protection
Yes
Mounting type
Panel mounting
Variable coding
Yes

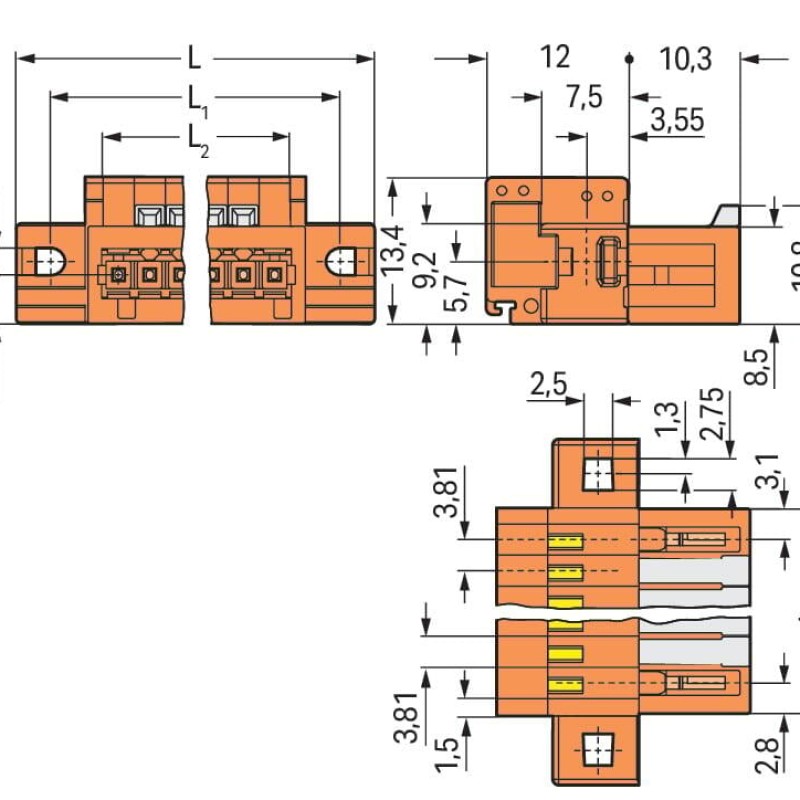

Physical data
Depth
22.3 mm
Height
13.4 mm
Pin spacing
3.81 mm
Width
37.66 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Male connector/plug
Locking of plug-in connection
none
Mismating protection
Yes
Plugging without loss of pin spacing
No
