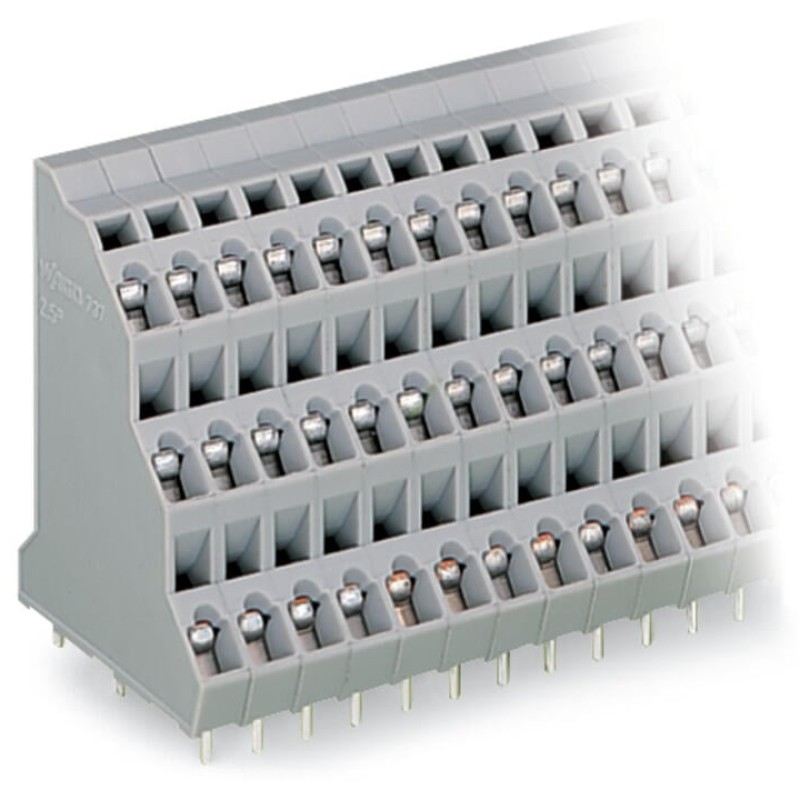

Description 737-112 Triple-deck PCB terminal block;2.5 mm²;Pin spacing 5 mm;gray
- PCB terminal strips with screwdriver-actuated CAGE CLAMP® connection
- High-density, triple-deck design for space-efficient wiring of multiple conductors in confined areas
- Custom marking for all termination levels
Main attributes 737-112 Triple-deck PCB terminal block;2.5 mm²;Pin spacing 5 mm;gray
Connection 1
Actuation type
Operating tool
Conductor connection direction to PCB
45 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Note (conductor cross-section)
12 AWG: THHN, THWN
Pole number
36
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
5 … 6 mm
Connection data
Clamping units
36
Number of connection types
1
Number of levels
3
Total number of potentials
36
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.73 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
50.2 g
PCB contact
Number of solder pins per potential
1
PCB contact
THT
Solder pin arrangement
within the terminal block (in-line)

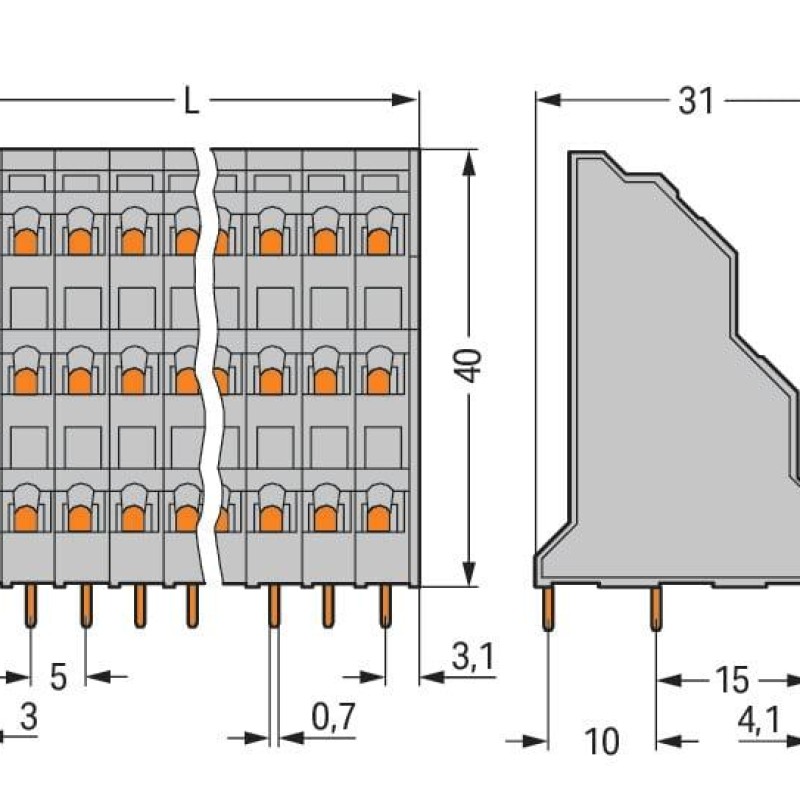

Physical data
Depth
31 mm
Drilled hole diameter with tolerance
1.3 (+0.1) mm
Height
44 mm
Height from the surface
40 mm
Pin spacing
5 mm
Solder pin dimensions
0.7 x 0.7 mm
Solder pin length
4 mm
Width
61 mm
