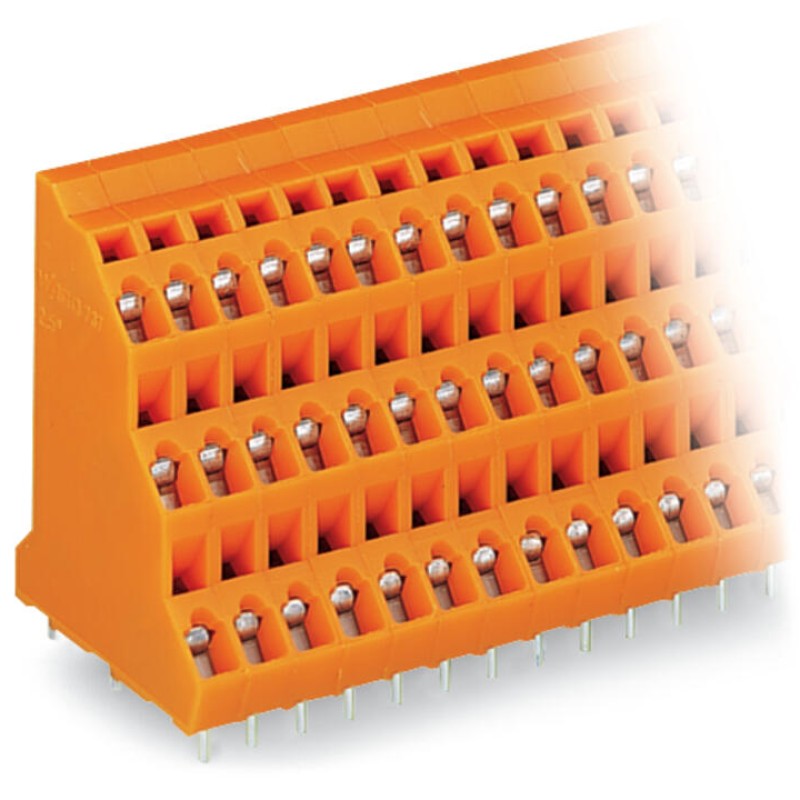

Description 737-316 Triple-deck PCB terminal block;2.5 mm²;Pin spacing 5.08 mm;orange
- PCB terminal strips with screwdriver-actuated CAGE CLAMP® connection
- High-density, triple-deck design for space-efficient wiring of multiple conductors in confined areas
- Custom marking for all termination levels
Main attributes 737-316 Triple-deck PCB terminal block;2.5 mm²;Pin spacing 5.08 mm;orange
Connection 1
Actuation type
Operating tool
Conductor connection direction to PCB
45 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Note (conductor cross-section)
12 AWG: THHN, THWN
Pole number
48
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
5 … 6 mm
Connection data
Clamping units
48
Number of connection types
1
Number of levels
3
Total number of potentials
48
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
orange
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.952 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
66.2 g
PCB contact
Number of solder pins per potential
1
PCB contact
THT
Solder pin arrangement
within the terminal block (in-line)

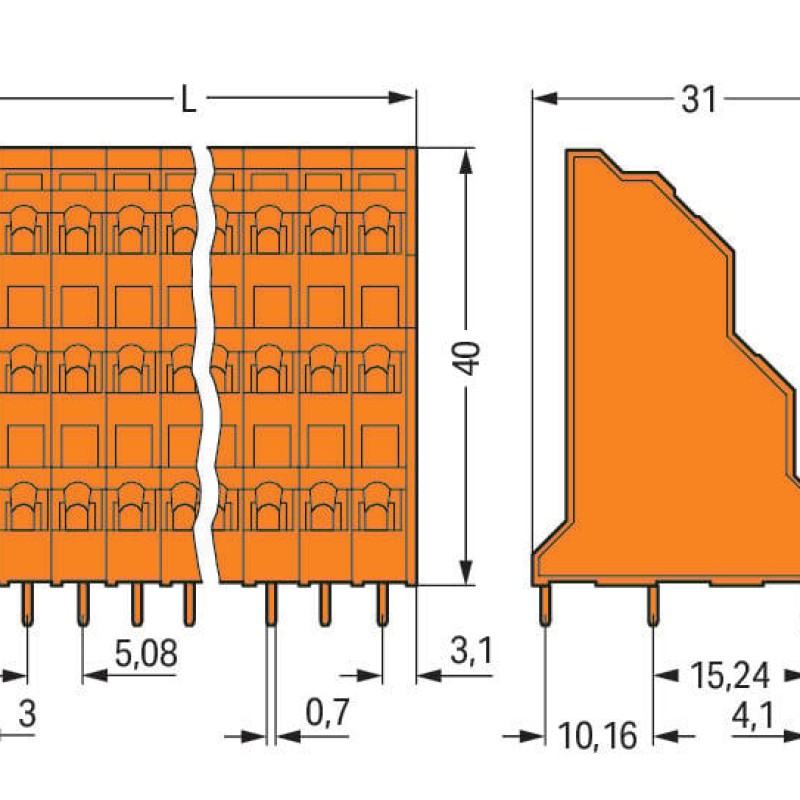

Physical data
Depth
31 mm

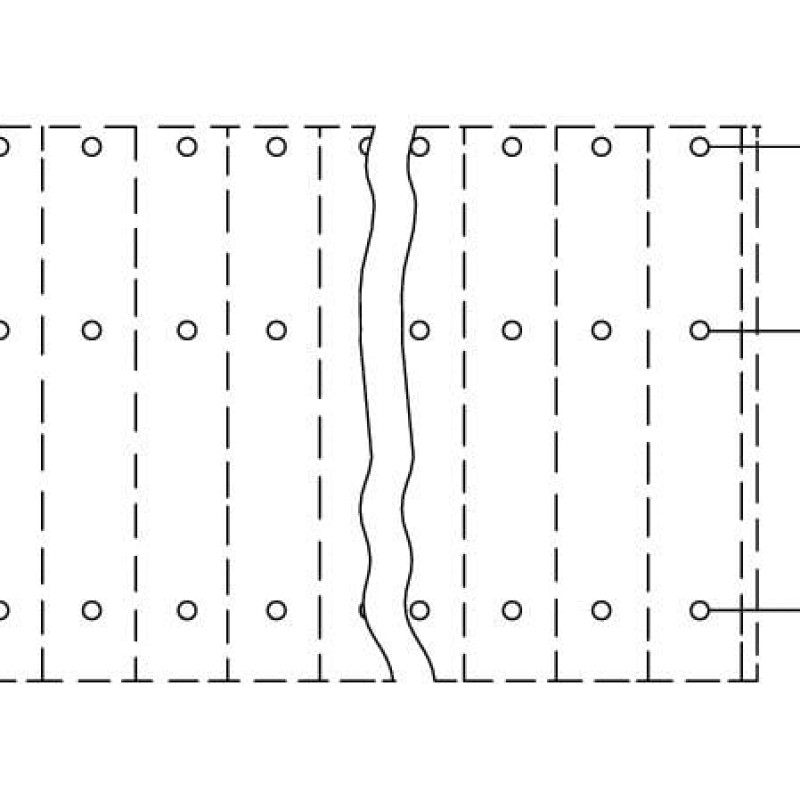

Drilled hole diameter with tolerance
1.3 (+0.1) mm
Height
44 mm
Height from the surface
40 mm
Pin spacing
5.08 mm
Solder pin dimensions
0.7 x 0.7 mm
Solder pin length
4 mm
Width
82.28 mm
