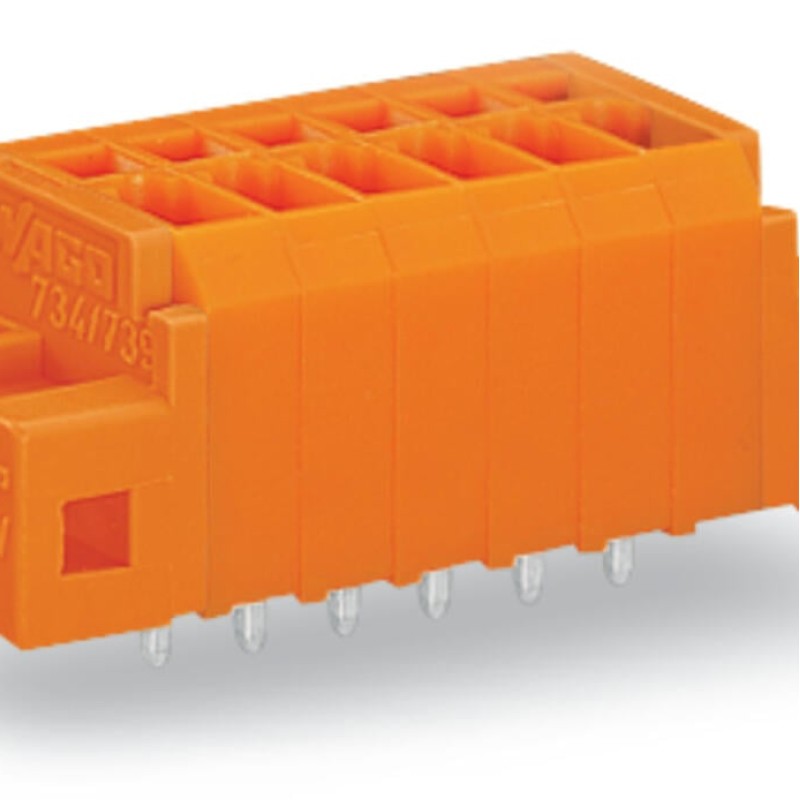

Description 739-332/001-000 PCB terminal block;1.5 mm²;Pin spacing 3.81 mm;orange
- PCB terminal strips with screwdriver-actuated CAGE CLAMP® connection
- Vertical conductor entry and operating direction for space-saving positioning/grouping
Main attributes 739-332/001-000 PCB terminal block;1.5 mm²;Pin spacing 3.81 mm;orange
Connection 1
Actuation type
Operating tool
Conductor connection direction to PCB
90 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 1.5 mm² / 28 … 14 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Note (conductor cross-section)
14 AWG: THHN, THWN
Pole number
2
Solid conductor
0.08 … 1.5 mm² / 28 … 14 AWG
Strip length
5 … 6 mm
Connection data
Clamping units
2
Number of connection types
1
Number of levels
1
Total number of potentials
2
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
orange
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.054 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
2.3 g
Mechanical data
Mounting type
Panel mounting
PCB contact
Number of solder pins per potential
1
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)

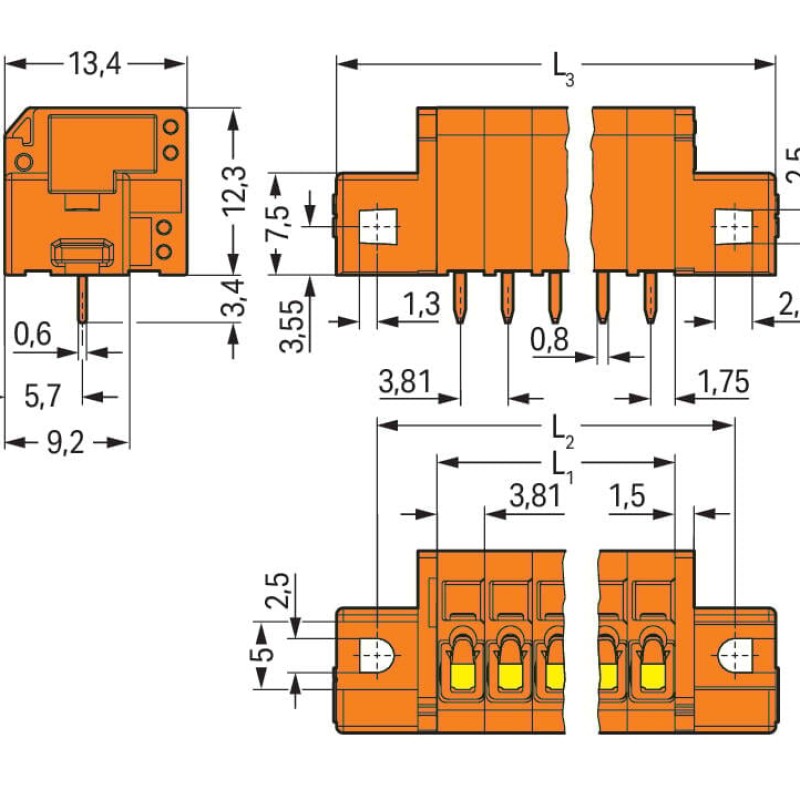

Physical data
Depth
13.4 mm
Drilled hole diameter with tolerance
1.1 (+0.1) mm
Height
15.7 mm
Height from the surface
12.3 mm
Pin spacing
3.81 mm
Solder pin dimensions
0.6 x 0.8 mm
Solder pin length
3.4 mm
Width
22.42 mm
