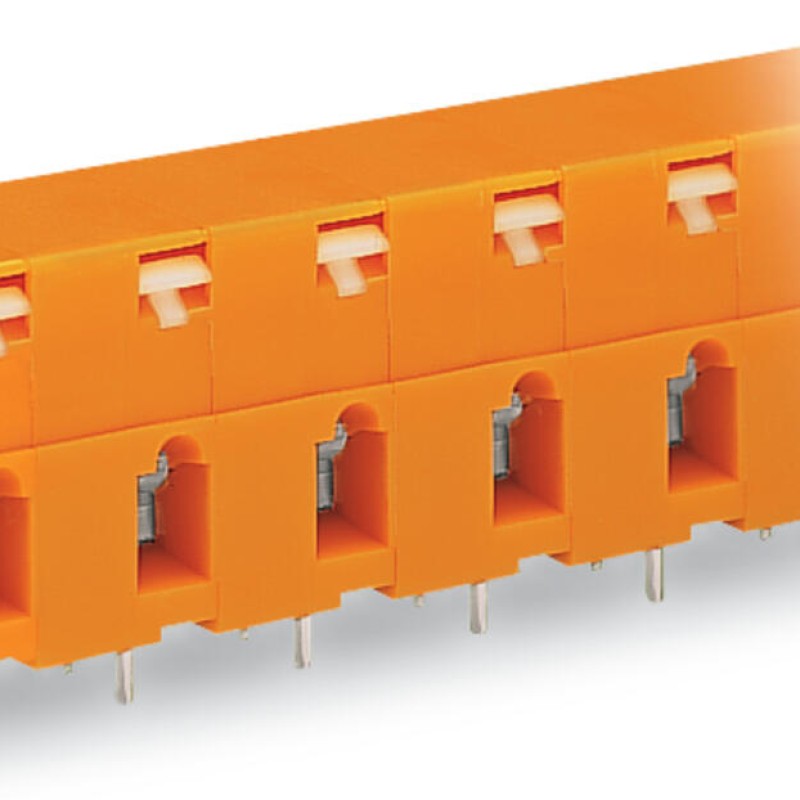

Description 741-607 PCB terminal block; push-button; 2.5 mm²; Pin spacing 10.16 mm; 7-pole; CAGE CLAMP®; 2,50 mm²; orange
- Feedthrough PCB terminal strips with push-button actuated CAGE CLAMP®
- Simple, push-button wiring
- Test slot integrated into upper-portion of conductor entry for test pins
Main attributes 741-607 PCB terminal block; push-button; 2.5 mm²; Pin spacing 10.16 mm; 7-pole; CAGE CLAMP®; 2,50 mm²; orange
Connection 1
Actuation type
Push-button
Conductor connection direction to PCB
0 °
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5 mm²
Pole number
7
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
5 … 6 mm
Connection data
Clamping units
7
Number of connection types
1
Number of levels
1
Total number of potentials
7
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
orange
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
13.4 g
PCB contact
Number of solder pins per potential
2
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)

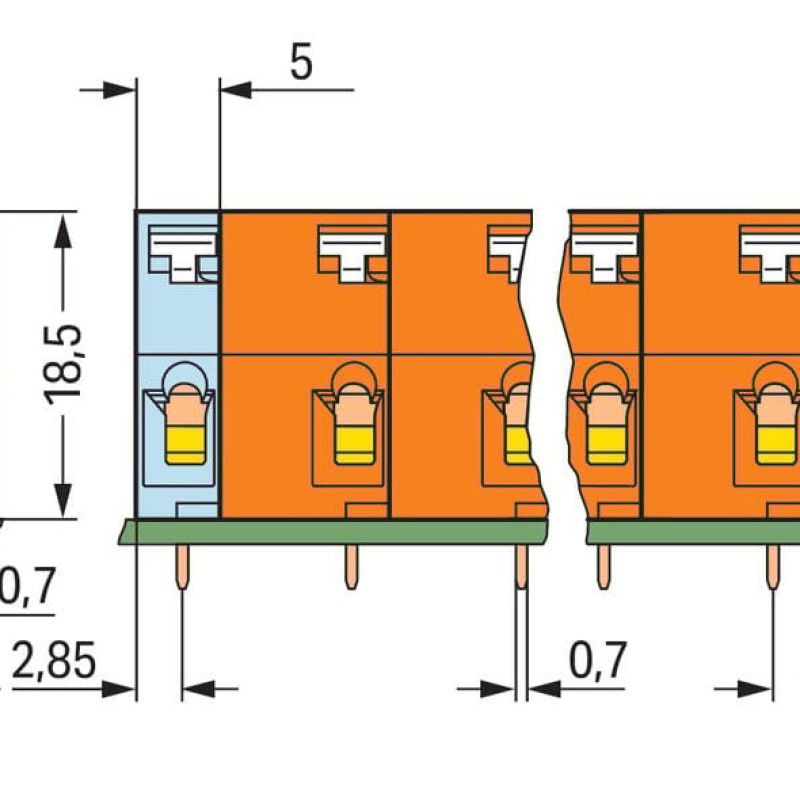

Physical data
Depth
12.8 mm
Drilled hole diameter with tolerance
1.1 (+0.1) mm
Height
22.5 mm
Height from the surface
18.5 mm
Pin spacing
10.16 mm
Solder pin dimensions
0.7 x 0.7 mm
Solder pin length
4 mm
Width
67.46 mm
