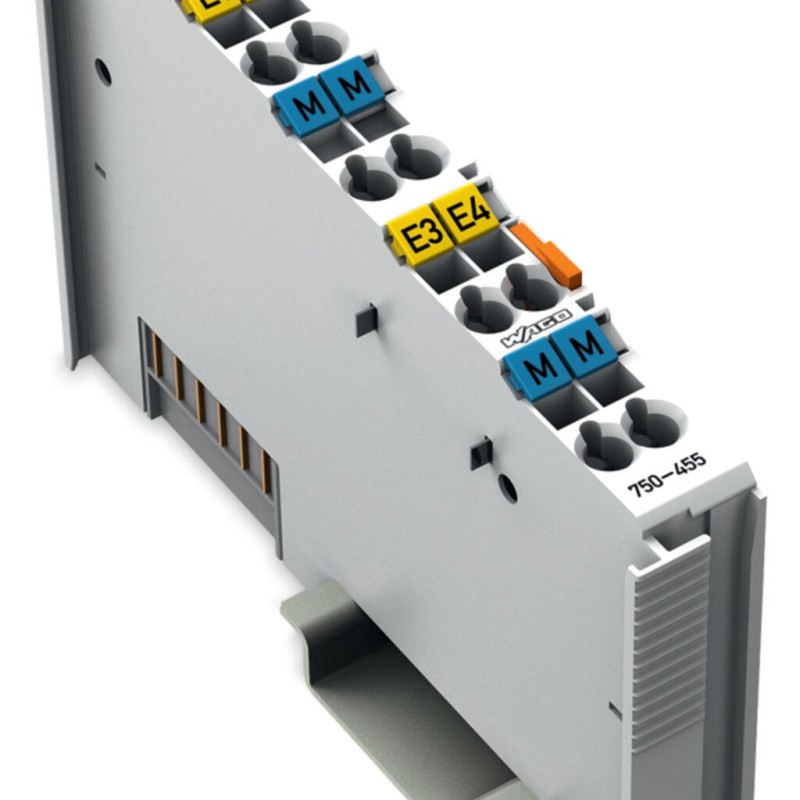

Description 750-455 4-channel analog input;4 … 20 mA;Single-ended;light gray

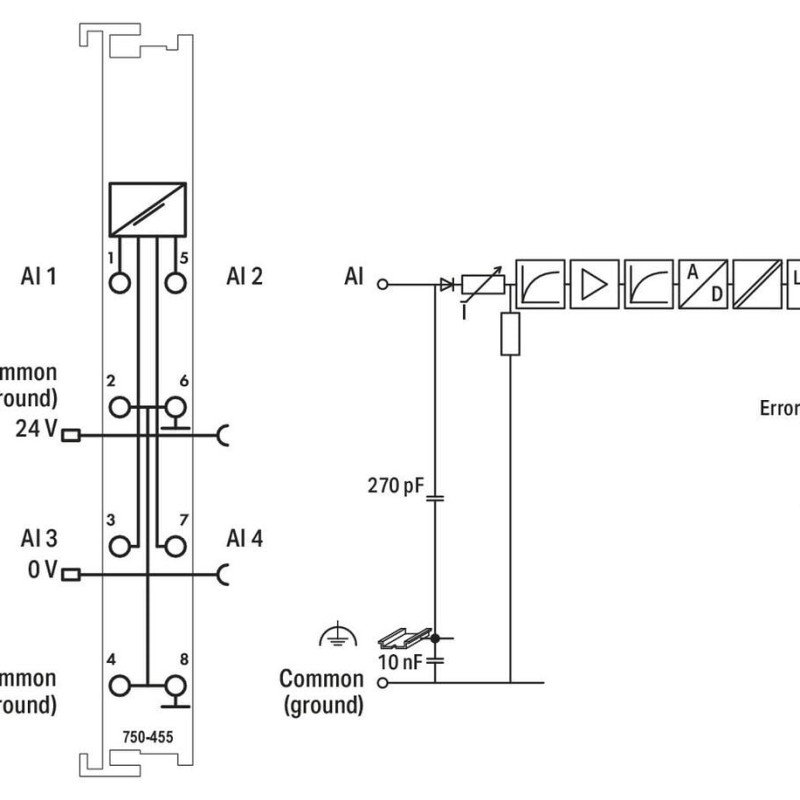

This analog input module processes standard 4–20 mA signals.
The input signal is electrically isolated and is transmitted with a resolution of 12 bits.
The internal system supply powers the module.
The input channels of the module have a common ground potential.
Main attributes 750-455 4-channel analog input;4 … 20 mA;Single-ended;light gray
Connection data
Connection technology: inputs/outputs
8 x CAGE CLAMP®
Connection type 1
Inputs/Outputs
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
0 … +55 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-4, marine applications
EMC immunity to interference
per EN 61000-6-2, marine applications
Exposure to pollutants
Per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal right, horizontal up, horizontal down, vertical top and vertical bottom
Operating altitude
0 … 2000 m / 0 … 6562 ft
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Relative humidity (without condensation)
95 %
Shock resistance
15g per IEC 60068-2-27
Vibration resistance
4g per IEC 60068-2-6
Material data
Color
light gray
Conformity marking
CE
Fire load
1.286 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
52 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth
69.8 mm
Depth from upper-edge of DIN-rail
62.6 mm
Height
100 mm
Width
12 mm
Technical data
Conversion time (typ.)
10 ms
Current consumption (5 V system supply)
65 mA
Data width
4 x 16-bit data; 4 x 8-bit control/status (optional)

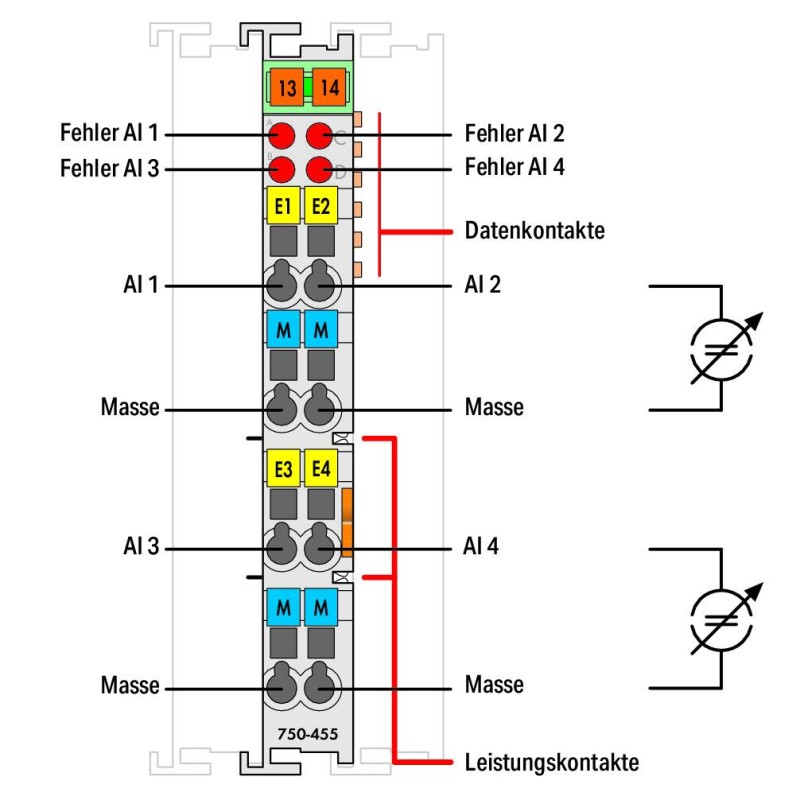

Indicators
LED (A-D) red: Error AI 1 … AI 4
Input resistance (max.)
100 Ω
Input voltage (max.)
32 V
Isolation
500 V system/field
Measurement error (reference temperature)
25 °C
Measurement error, deviation (max.) from the upper-range value
0.1 %
Number of analog inputs
4
Number of incoming power jumper contacts
2
Number of outgoing power jumper contacts
2
Resolution [bit]
12 Bit

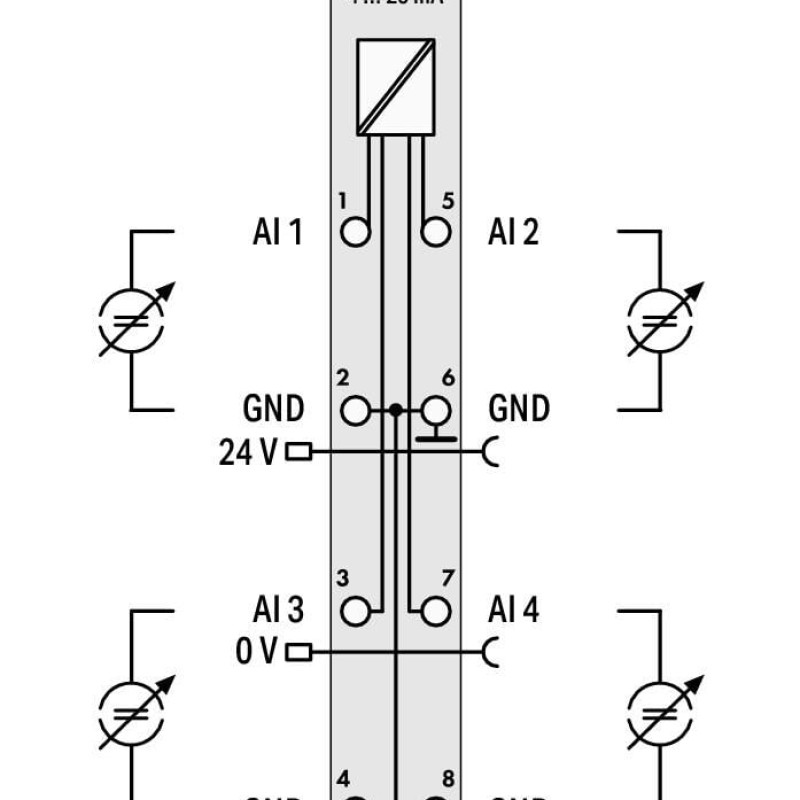

Sensor connection
4 x (2-wire)
Signal characteristics
Single-ended
Signal type
Current
Signal type (current)
4 … 20 mADC
Supply voltage (field)
24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Supply voltage (system)
5 VDC; via data contacts
Temperature error (max.) of the upper-range value
0.01 %/K
Total number of channels (module)
4
