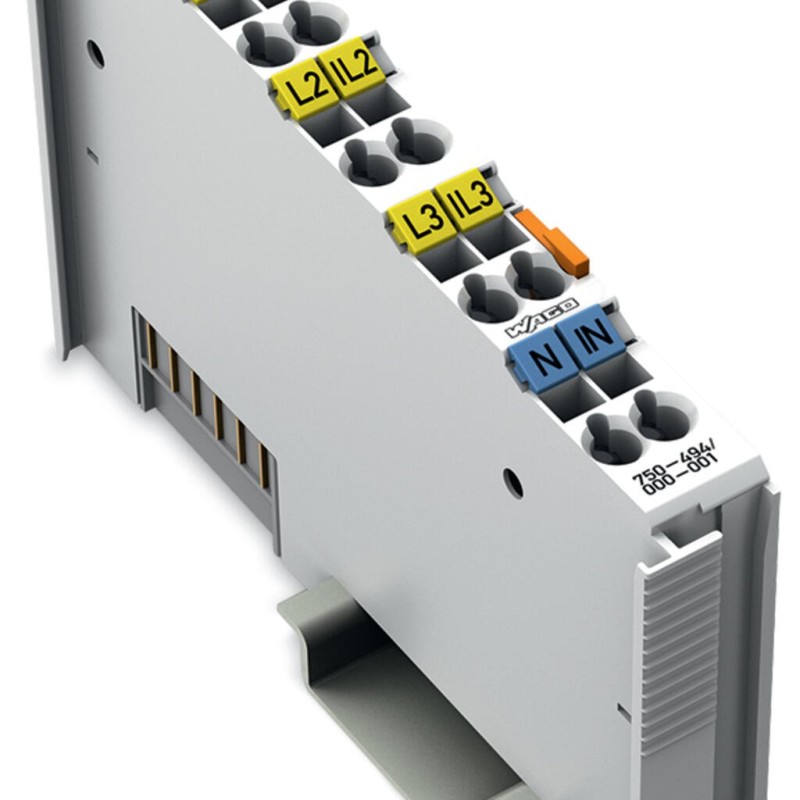

Description 750-494/000-001 3-Phase Power Measurement;480 VAC, 5 A;light gray
The 750-494 3-Phase Power Measurement Module measures electrical data in a three-phase supply network.

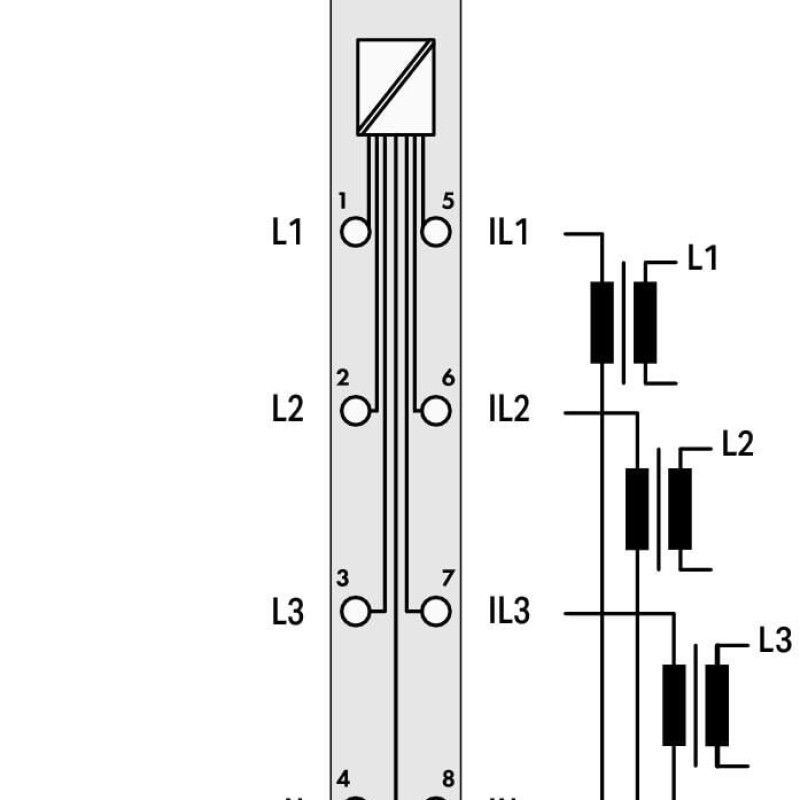

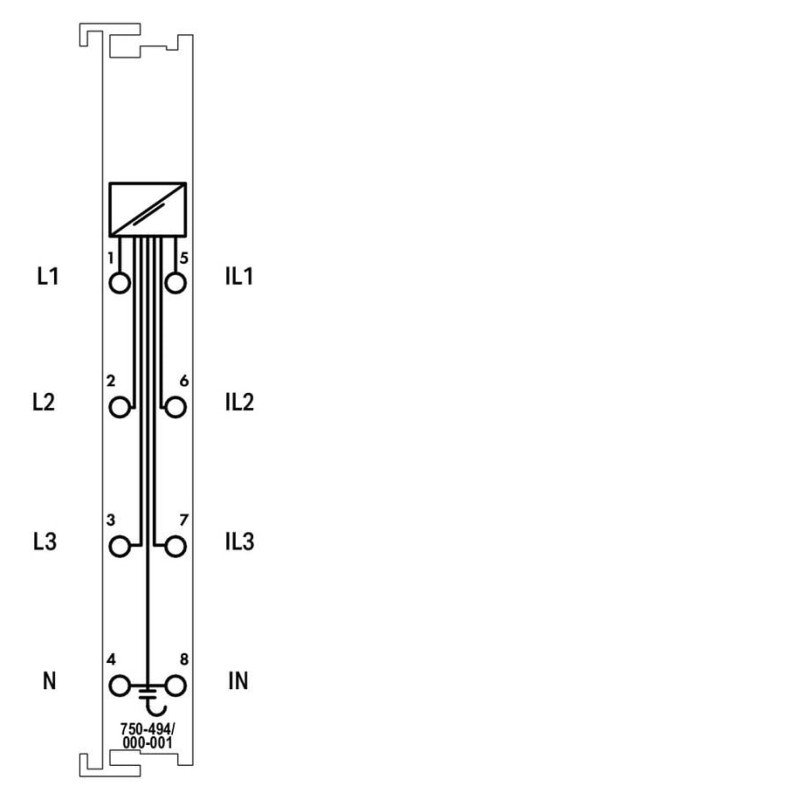

The voltage is measured via network connection to clamping points L1, L2, L3 and N.
The current of the three phases is fed to IL1, IL2, IL3, and IN via current transformers.
The 3-phase power measurement module transmits all metrics (e.g., reactive/apparent/effective power, energy consumption, power factor, phase angle, frequency, over-/undervoltage) directly to the process image, without requiring high computing power from the controller. Both comprehensive metrics and harmonic analysis up to the 41st harmonic permit extensive network analysis via the fieldbus. These metrics enable the operator to optimize supply to a drive or machine, protecting the system from damage and failure. The four-quadrant display indicates the load type (inductive, capacitive) and whether it is an energy consumer or producer.
Main attributes 750-494/000-001 3-Phase Power Measurement;480 VAC, 5 A;light gray
Connection data
Connection technology: inputs/outputs
8 x CAGE CLAMP®
Connection type 1
Inputs/outputs
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
0 … +55 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-3
EMC immunity to interference
per EN 61000-6-2
Exposure to pollutants
per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal right, horizontal up, horizontal down, vertical top and vertical bottom
Operating altitude
0 … 2000 m / 0 … 6562 ft
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2
Protection type
IP20
Relative humidity (without condensation)
95 %
Shock resistance
15g per IEC 60068-2-27
Vibration resistance
4g per IEC 60068-2-6
Material data
Color
light gray
Conformity marking
CE
Fire load
0.955 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
48.5 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth
67.8 mm
Depth from upper-edge of DIN-rail
60.6 mm
Height
100 mm
Width
12 mm
Technical data
Calculated values
Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD
Configuration options
WAGO-I/O-CHECK
Current consumption (5 V system supply)
100 mA
Current path input resistance (typ.)
5 mΩ
Data width
2 x 128-bit data; 2 x 64-bit control/status
Frequency range (harmonics analysis)
0 … 3300 Hz
Frequency range (mains frequency)
45 … 65 Hz

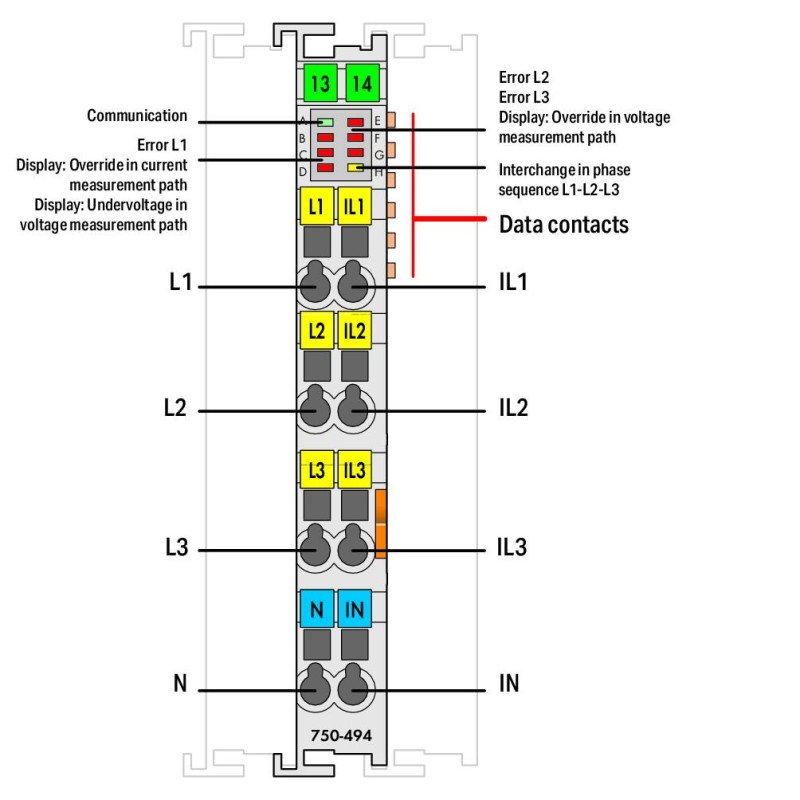

Indicators
LED (A) green: Communication; LED (B-G) red: Error L1, Override in Current Measurement Path (display), Undervoltage in Voltage Measurement Path (display), Error L2, Error L3, Override in Voltage Measurement Path (display); LED (H) yellow: Interchange in P
Input voltage (max.)
Current Inputs: 18 VAC
Isolation
4 kV system/field
Limit frequency
15.9 kHz
Measurement components
Evaluating
Measurement current (max.)
5 A
Measurement cycle time
Adjustable for the arithmetic mean value, min./max. values
Measurement error (reference temperature)
25 °C
Measurement error, deviation (max.) from the upper-range value
0.5 %
Measurement method
True RMS measurement
Number of measurement inputs
6 (3 voltage measurement inputs, 3 current measurement inputs)
Rated surge voltage
4 kV
Rated voltage
ULN = 277 VAC; ULL = 480 VAC
Reference for measurement error
AC current/voltage
Resolution [bit]
24 Bit
Signal form
Any periodic signals (considering the threshold frequencies)
Signal type
Power measurement
Supply voltage (system)
5 VDC; via data contacts
Voltage path input resistance (typ.)
1072 kΩ
