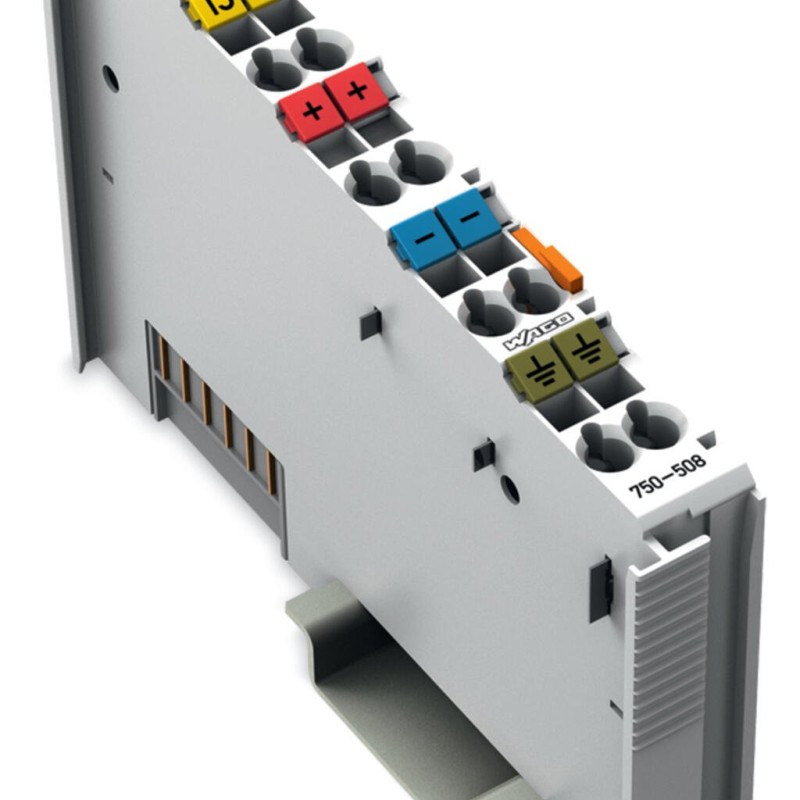

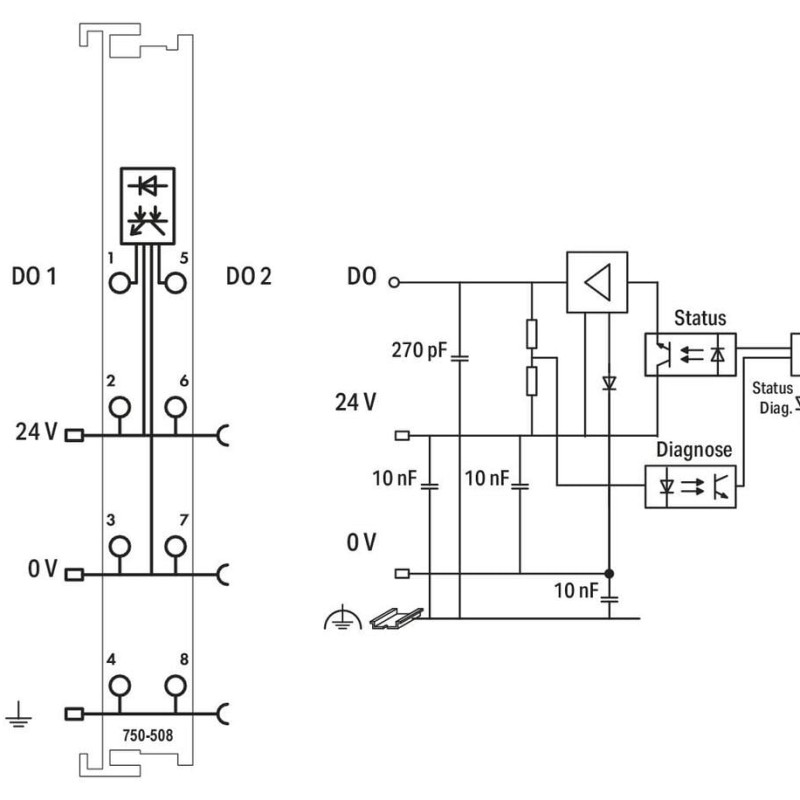

Description 750-508 2-channel digital output;24 VDC;2.0 A;light gray
This digital output module transmits control signals from the automation device to the connected actuators.
All outputs are short-circuit-protected.
The module detects the following errors: overload, short circuit and wire break.
The status is transmitted to the fieldbus coupler and indicated by LEDs.
Field and system levels are electrically isolated.
Main attributes 750-508 2-channel digital output;24 VDC;2.0 A;light gray
Connection data

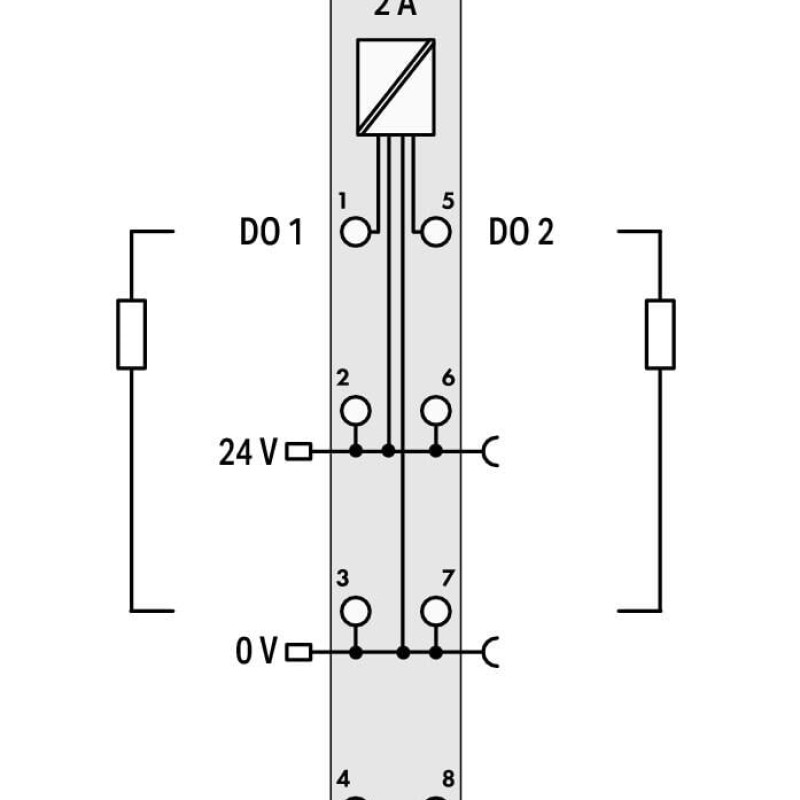

Connection technology: inputs/outputs
8 x CAGE CLAMP® (outputs)
Connection type 1
Output
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
0 … +55 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-3, marine applications
EMC immunity to interference
per EN 61000-6-2, marine applications
Exposure to pollutants
per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal right, horizontal up, horizontal down, vertical top and vertical bottom
Operating altitude
0 … 2000 m / 0 … 6562 ft
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Relative humidity (without condensation)
95 %
Shock resistance
15g per IEC 60068-2-27
Vibration resistance
4g per IEC 60068-2-6
Material data
Color
light gray
Conformity marking
CE
Fire load
1.032 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
47.8 g
Mechanical data
Mounting type
DIN-35 rail
Pluggable connector
fixed
Physical data
Depth
69.8 mm
Depth from upper-edge of DIN-rail
62.6 mm
Height
100 mm
Width
12 mm
Technical data
Actuator connection
2 x (2-wire, 3-wire, 4-wire)
Current carrying capacity (power jumper contacts)
10 A
Current consumption (5 V system supply)
14 mA
Current consumption, field supply (module with no external load)
7 mA
Diagnostics
Open circuit, short circuit, overload

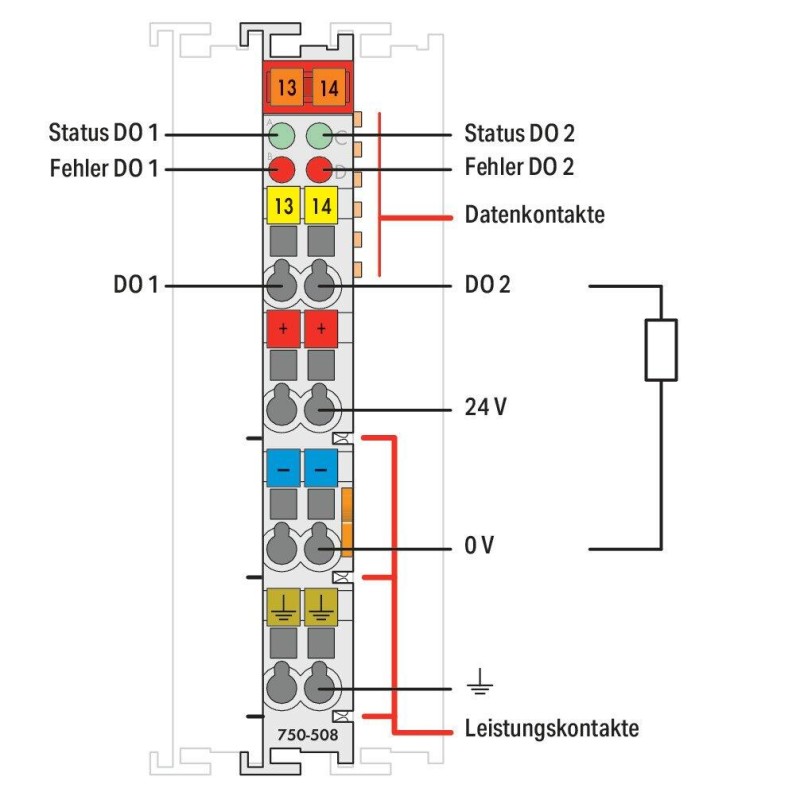

Indicators
LED (A, C) green: Status DO 1, DO 2; LED (B, D) red: Error DO 1, DO 2
Input data width (internal) max.
2 Bit
Isolation
500 V system/field
Load type
Resistive, inductive, lamp load
Number of digital outputs
2
Number of incoming power jumper contacts
3
Number of outgoing power jumper contacts
3
Open-circuit detection
0.2 mA
Output characteristic
high-side switching
Output current
short-circuit-protected
Output current per channel
2 A
Output data width (internal) max.
2 Bit
Reverse voltage protection
Yes
Short-circuit limitation (typ.) PWM
15 A
Signal type
Digital
Signal type (voltage)
24 VDC
Supply voltage (field)
24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Supply voltage (system)
5 VDC; via data contacts
Switching frequency (max.)
1 kHz
Total number of channels (module)
2
