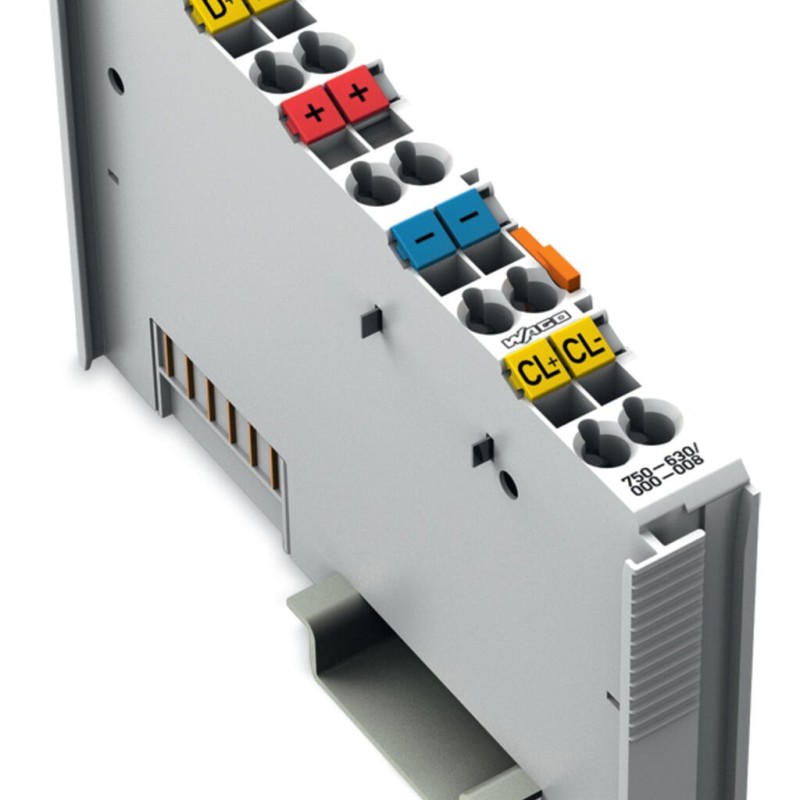

Description 750-630/000-008 SSI transmitter interface;25 bits;125 kHz;light gray

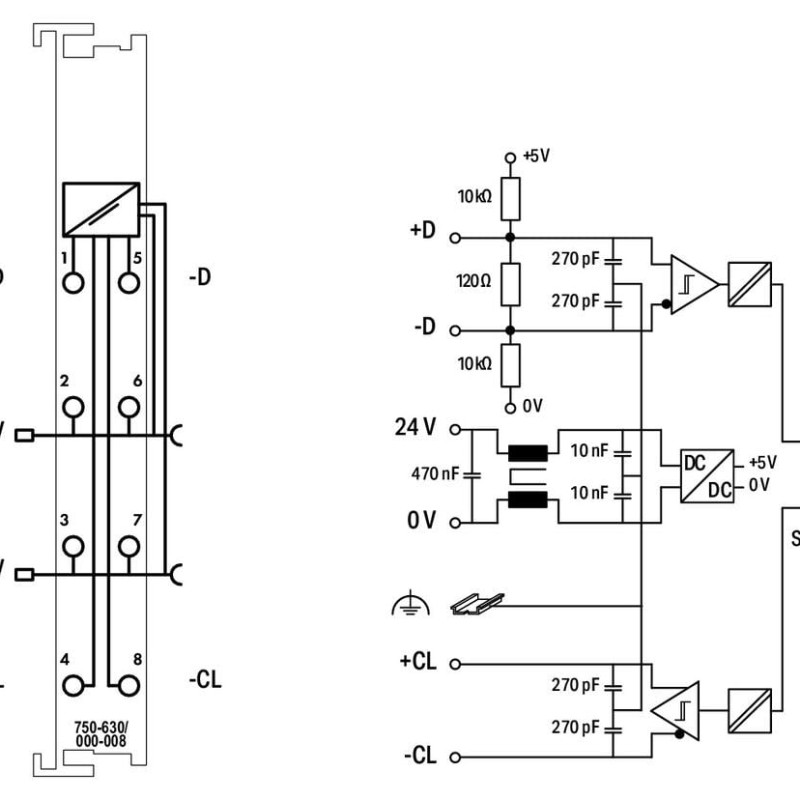

This module is an SSI interface for the direct connection to an SSI transmitter.
After the module has given a clock pulse to the sensor, the module reads the incoming data and transmits it directly as a data word into the process image of the PLC or PC.
The power supply for the transmitter is derived internally from the power jumper contacts.
Main attributes 750-630/000-008 SSI transmitter interface;25 bits;125 kHz;light gray
Connection data
Connection technology: inputs/outputs
8 x CAGE CLAMP®
Connection type 1
Inputs/Outputs
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
0 … +55 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-4, marine applications
EMC immunity to interference
per EN 61000-6-2, marine applications
Exposure to pollutants
Per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal right, horizontal up, horizontal down, vertical top and vertical bottom
Operating altitude
0 … 2000 m / 0 … 6562 ft
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Relative humidity (without condensation)
95 %
Shock resistance
15g per IEC 60068-2-27
Vibration resistance
4g per IEC 60068-2-6
Material data
Color
light gray
Conformity marking
CE
Fire load
1.052 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
51.9 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth
69.8 mm
Depth from upper-edge of DIN-rail
62.6 mm
Height
100 mm
Width
12 mm
Technical data
Code
Gray code
Current consumption (5 V system supply)
20 mA
Data transmission rate
125 kHz
Data width
1 x 32 bits

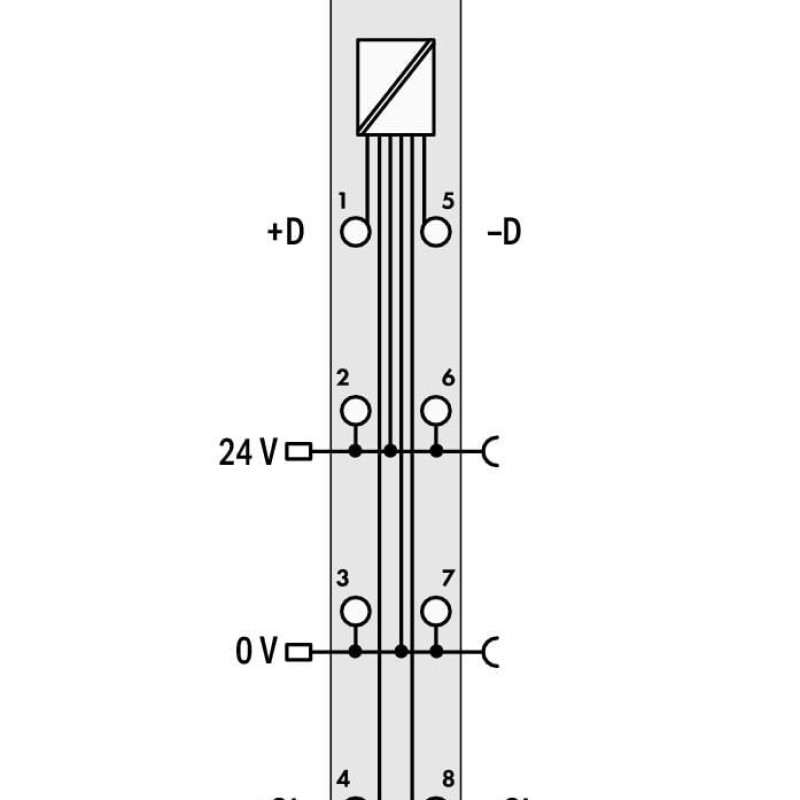

Encoder connection
On + D, -D / Off + CI, - CI

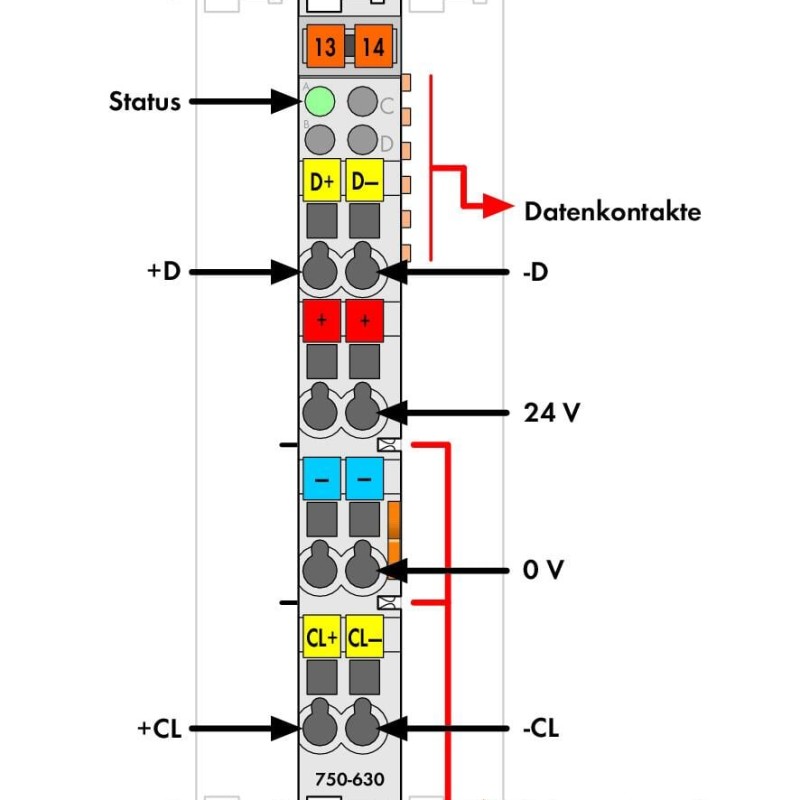

Indicators
LED (A) green: Status
Isolation
500 V system/field
Number of incoming power jumper contacts
2
Number of outgoing power jumper contacts
2
Serial input
Data width: 25 bits
Signal type
Differential signal (RS-422)
Supply voltage (field)
24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Supply voltage (system)
5 VDC; via data contacts
