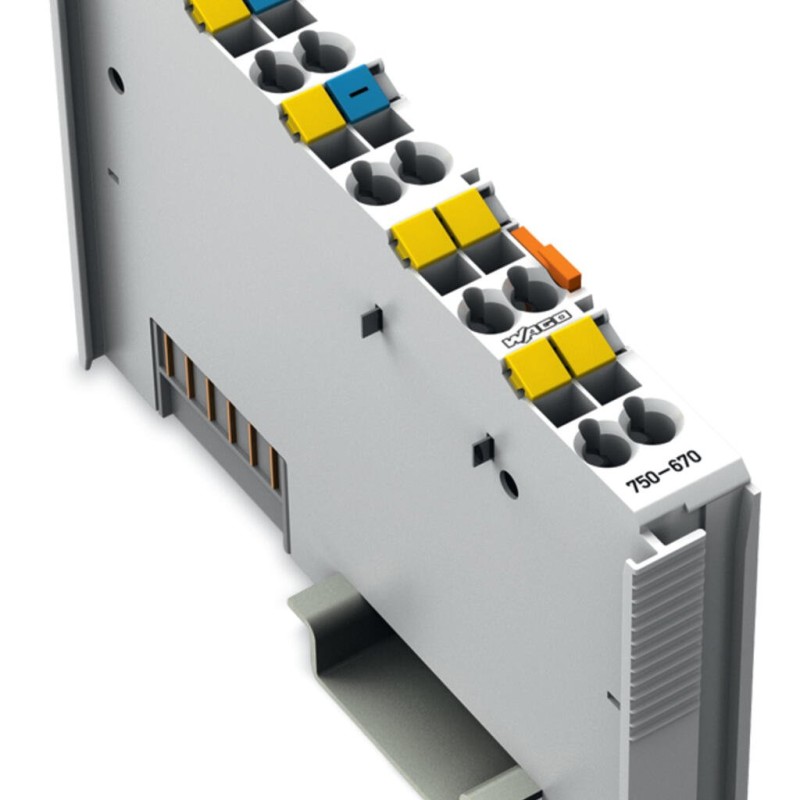

Description 750-670 Stepper Controller;RS-422/24 VDC;20 mA;light gray

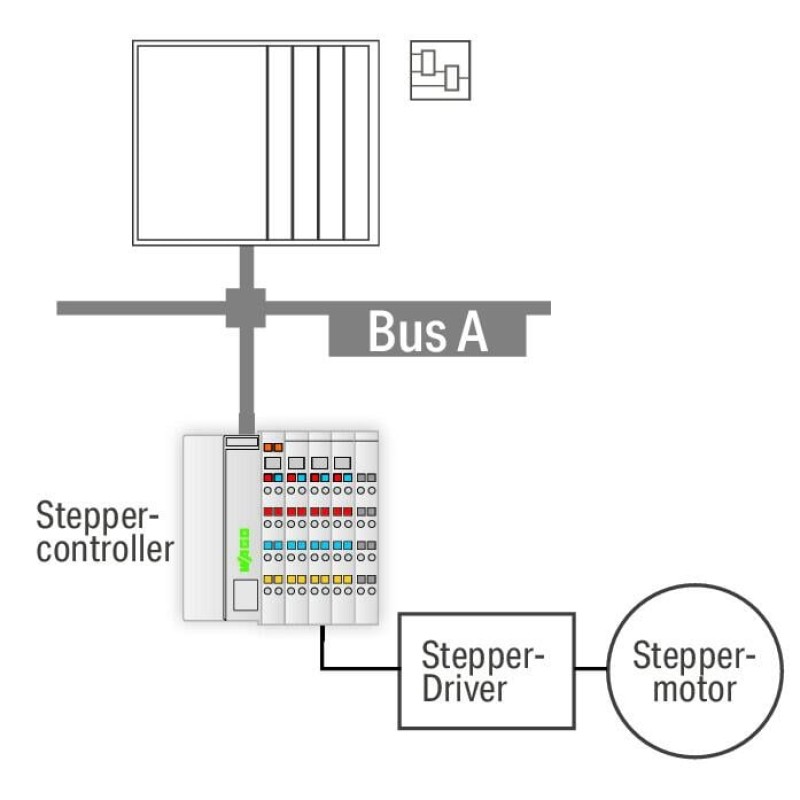

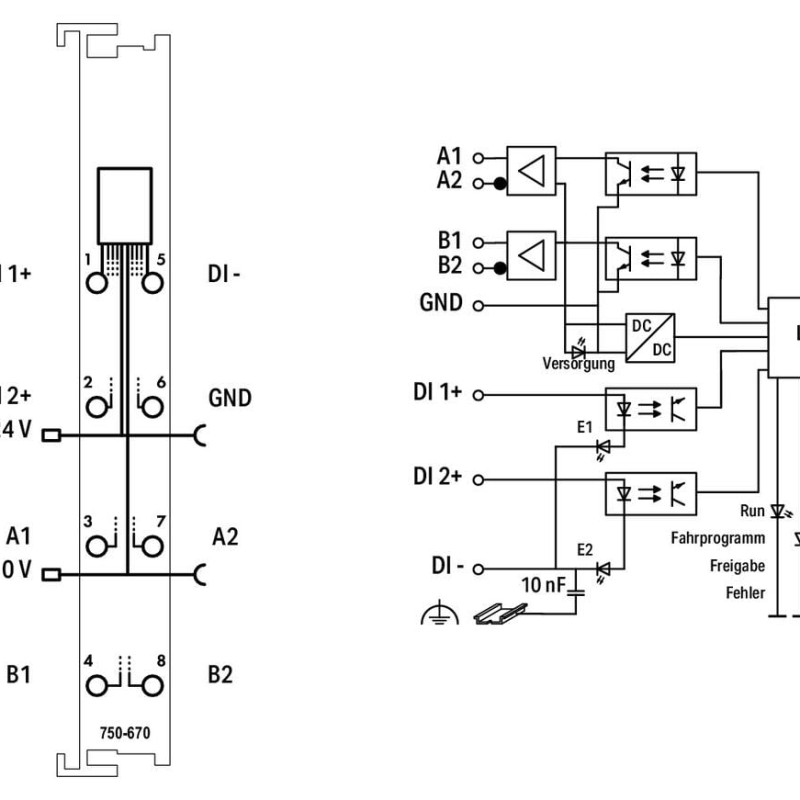

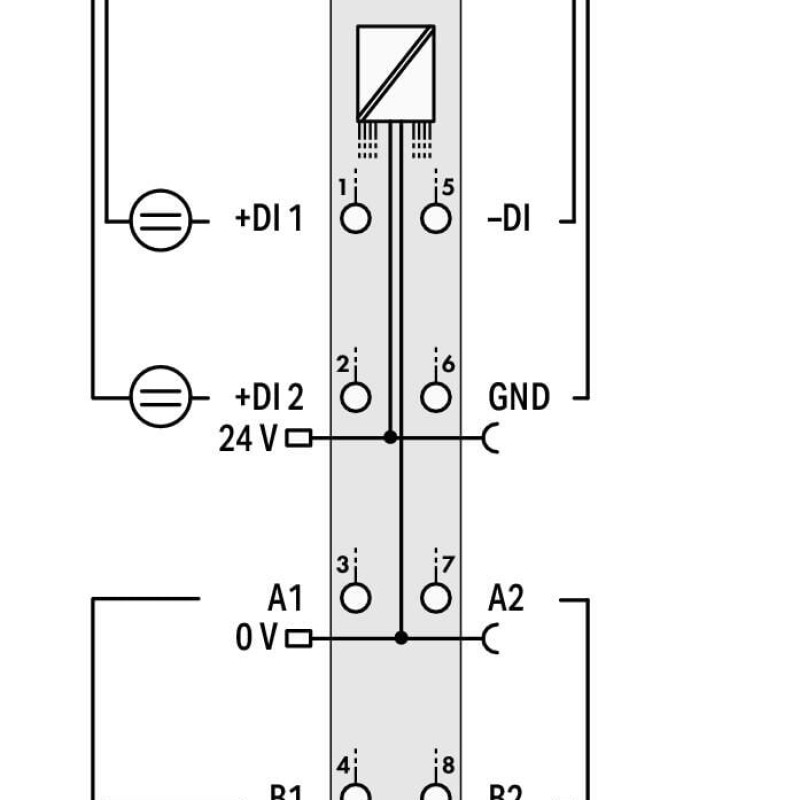

The 750-670 Module is an intelligent stepper controller used to control different drive power sections with pulse/direction interface or incremental encoder input.
Both RS-422 and 24 V or 20 mA interfaces are available.
Due to the high output frequency, stepper output stages with smooth microstepping resolution can be used.
In addition, this module can also be used as a high-precision frequency or pulse width modulator.
Two configurable inputs for start/stop, limit switches, reference cams, jog/tip, etc., are directly processed by the internal software without delay.
Versatile functions, such as positioning with different acceleration slopes, command tables, camshaft controller, auto referencing and other event-dependent properties provide this controller with a wide spectrum of possible uses.
The programmer's interface is the same for all WAGO Stepper Controllers.
Additional operating modes:
- Pulse width modulation
- Frequency generator
- Single-shot mode
Main attributes 750-670 Stepper Controller;RS-422/24 VDC;20 mA;light gray
Connection data
Connection technology: inputs/outputs
8 x CAGE CLAMP®
Connection type 1
Inputs/Outputs
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
8 … 9 mm
Environmental requirements
Ambient temperature (operation)
0 … +55 °C
Ambient temperature (storage)
-40 … +85 °C
EMC emission of interference
per EN 61000-6-3
EMC immunity to interference
per EN 61000-6-2
Exposure to pollutants
Per IEC 60068-2-42 and IEC 60068-2-43
Mounting position
Horizontal left, horizontal right, horizontal up, horizontal down, vertical top and vertical bottom
Operating altitude
0 … 2000 m / 0 … 6562 ft
Permissible H₂S contaminant concentration
10 ppm
Permissible SO₂ contaminant concentration
25 ppm
Pollution degree
2 per IEC 61131-2
Protection type
IP20
Relative humidity (without condensation)
95 %
Shock resistance
15g per IEC 60068-2-27
Vibration resistance
per IEC 60068-2-6
Material data
Color
light gray
Conformity marking
CE
Fire load
1.136 MJ
Housing material
Polycarbonate; polyamide 6.6
Weight
49.9 g
Mechanical data
Mounting type
DIN-35 rail
Physical data
Depth
67.8 mm
Depth from upper-edge of DIN-rail
60.6 mm
Height
100 mm
Width
12 mm
Technical data
Current consumption (5 V system supply)
98 mA
Data width
12-byte input/output
Device-specific
Operating modes: Individual positioning, reference run, jog, tip, command tables, PWM
Duty cycle
50 % (in stepper motor mode)
Functions
Absolute/relative positioning, setpoint change on the fly, rotary axis, etc.
Indicators

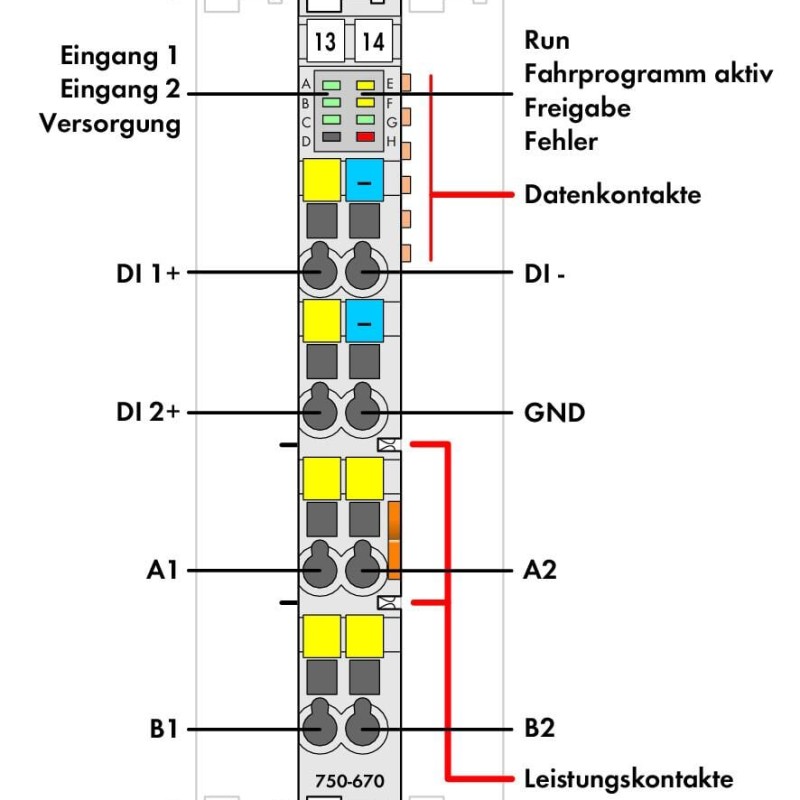

LED (A-C, G) green: Input 1, Input 2, Power Supply, Enable; LED (E, F) yellow: Run, Run Program Active; LED (H) red: Error
Input current (typ.)
2.8 mA
Input filter
100 µs, software filter can be connected
Isolation
500 V system/field
Load type
RS-422, TTL, optocoupler
Number of digital inputs
2
Number of incoming power jumper contacts
2
Number of outgoing power jumper contacts
2
Number of results
1 channel (2 differential outputs A1, A2, B1, B2)
Output current
short-circuit-protected
Output current per channel
0.03 A
Resolution
15 bits + 16 bit prescaler
Signal frequency (max.)
500000 Hz
Signal frequency (min.)
0 Hz
Signal voltage
5 VDC (internal), 5 … 24 VDC (external)
Step resolution
23 bits + sign bit
Supply voltage (field)
24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Supply voltage (system)
5 VDC; via data contacts
Voltage range for signal (0)
−3 … +5 VDC
Voltage range for signal (1)
15 … 30 VDC
