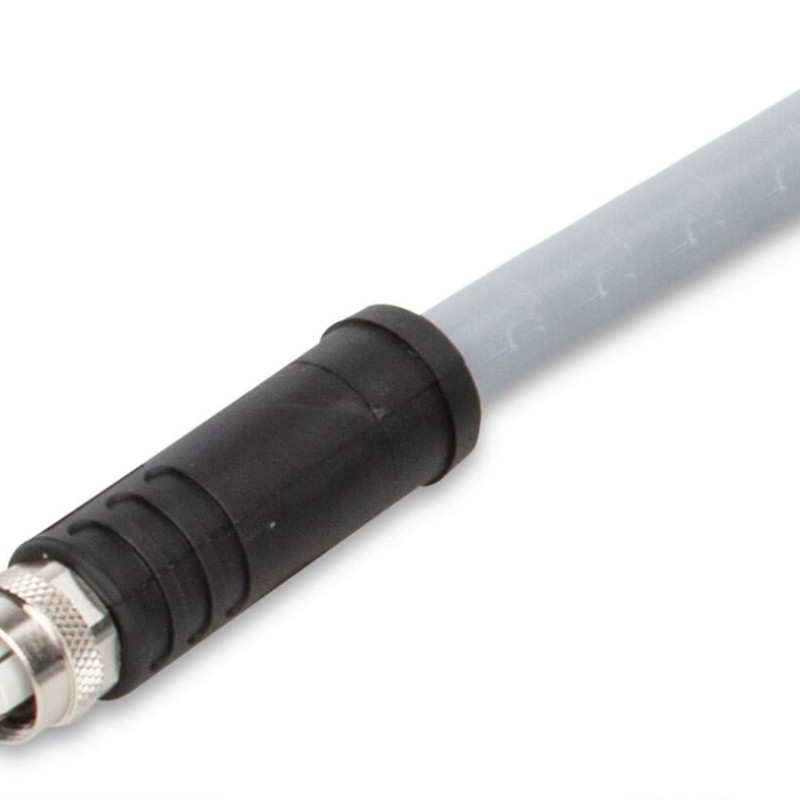

Description 756-3501/050-150 Power cable;M12L socket; straight;5-pole
Short description:These power cables are an accessory for the WAGO I/O System Field.
Use them as flexible, flame-retardant and halogen-free supply cables for industrial mechanical engineering applications – particularly those with high requirements, e.g., for use in cable chains (drag chains) and moving machine parts.
- Strong resistance to microbes and hydrolysis
- Good to very good weather resistance (UV and ozone)
- High resistance against welding sparks
- Excellent chemical and oil resistance
- Silicon- and PVC-free
- Free from paint-wetting impairment substances
- Flexible at low temperatures
Main attributes 756-3501/050-150 Power cable;M12L socket; straight;5-pole
Cable

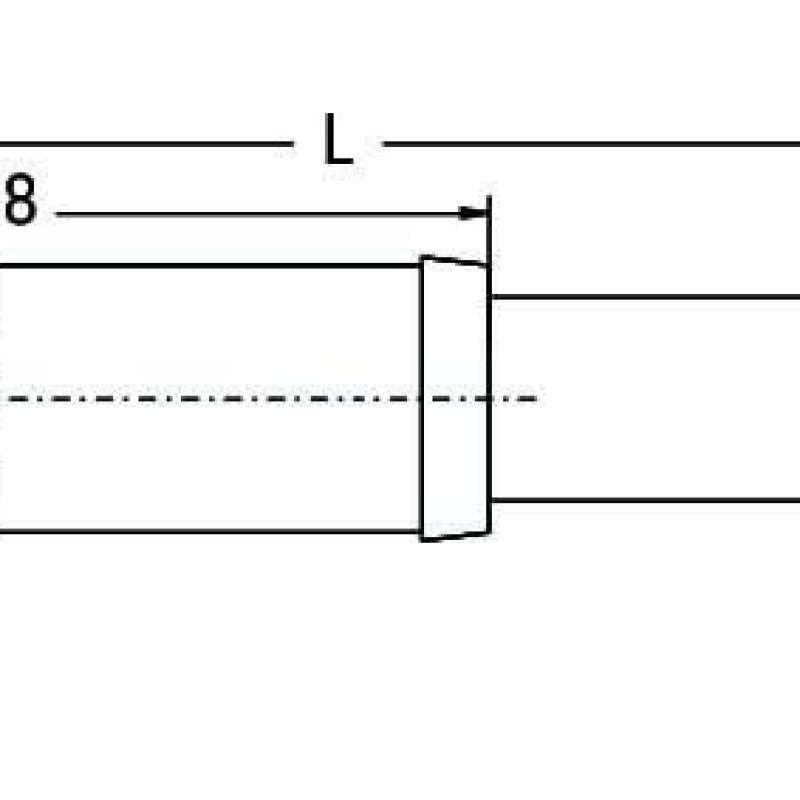

Cable length
15 m
Cable type
Design per UL + CSA Style 20234
Conductor configuration
Bare copper wire (84 x 0.15 mm)
Conductor insulation
PP9Y (halogen-free)
Sheath material
Polyurethane (PUR), halogen-free per VDE 0472, Part 815; flame resistant per IEC 60332-1-2, VDE 0482-332-1-2, UL vertical flame test VW-1, CSA FT-1
Sheathed cable color
gray
Type code

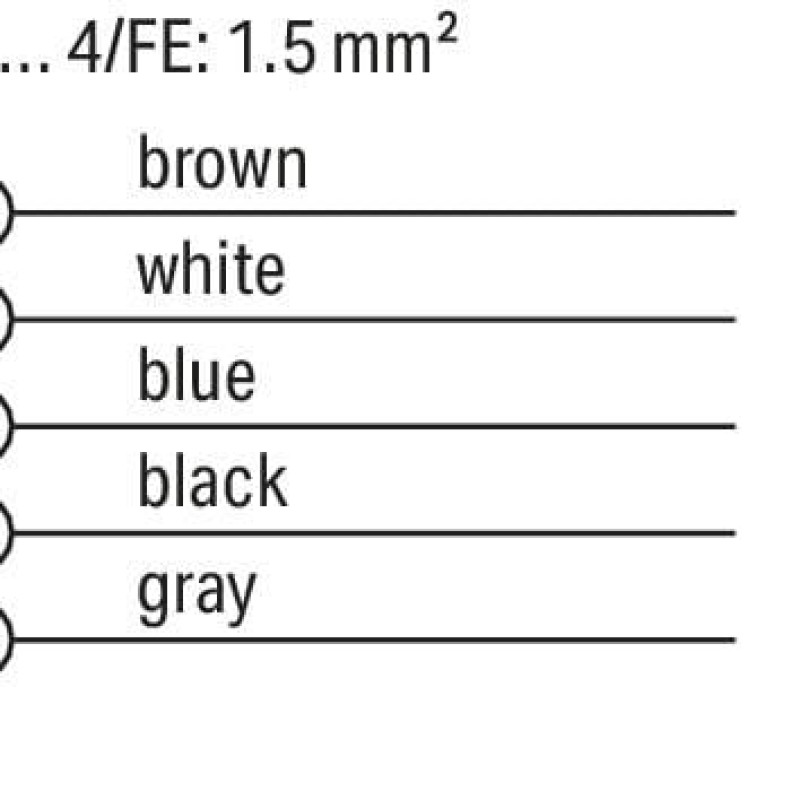

LiF9YH-11Y-0B 5x1.5mm²
Connector
Cable connection direction to mating direction
0 °
Connection type
M12 socket - Free end
Connector
Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM/FKM
Connector interface coding (cable/adapter) 1 1
L-coded
Contact material (connector)
CuZn
Contact plating (connector)
Ni/Au (0.2 µm Au over Ni)
Housing material
TPU/TPU, black (~ RAL 9005)

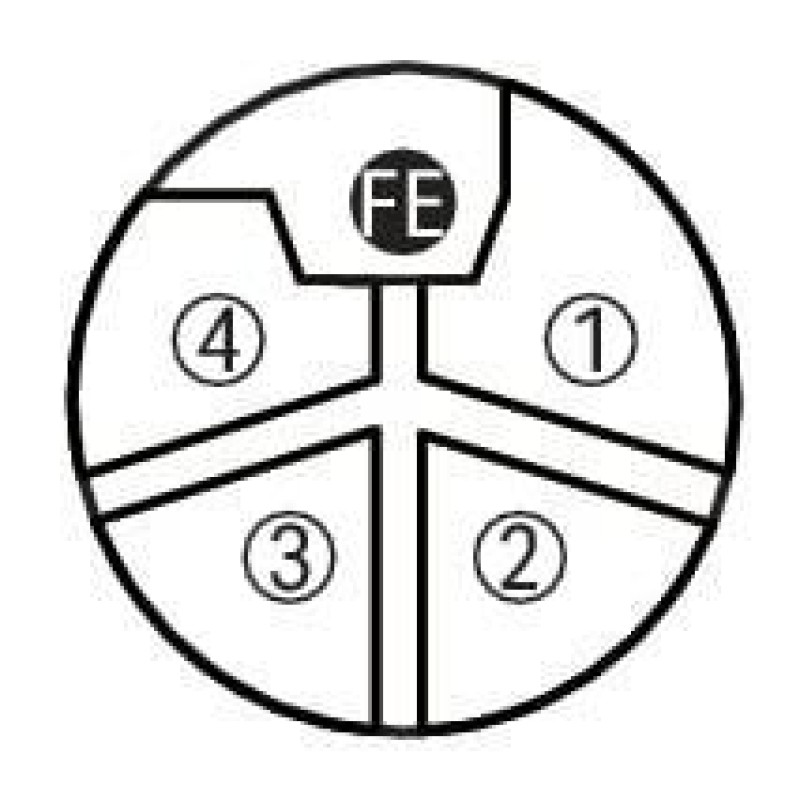

Pole number
5
Tightening torque
1 Nm
Drag chain compatible
Ambient air (operating) temperature in drag chain
-25 … +60 °C
Bending cycles
10 Mio.
Bending radius
Fixed: >4xØ; Flexible: >7.5xØ
Torsional capacity
270
General information
Ambient (operating) temperature (dynamic)
-30 … +90 °C
Ambient (operating) temperature (static)
-40 … +90 °C
Ambient temperature (operation)
-40 … +90 °C (UL max. +80 °C)
Conductor resistance
≤ 13.7 Ω/km
Contact resistance
5 mΩ
Insulation resistance
≥108 Ω
Operating current
16 A
Operating voltage
63 VDC per IEC 60664-1
Pollution degree
3 per IEC 60664-1
Protection type
IP68
Rated surge voltage
1.5 kV per IEC 61076-2-111
Other properties
Note
Exclusion of hazardous substances per: 200/53/EC, 2003/11/EC, (EC) No. 1907/2006, 2015/863/EU
Technical data
PLC manufacturer
WAGO
