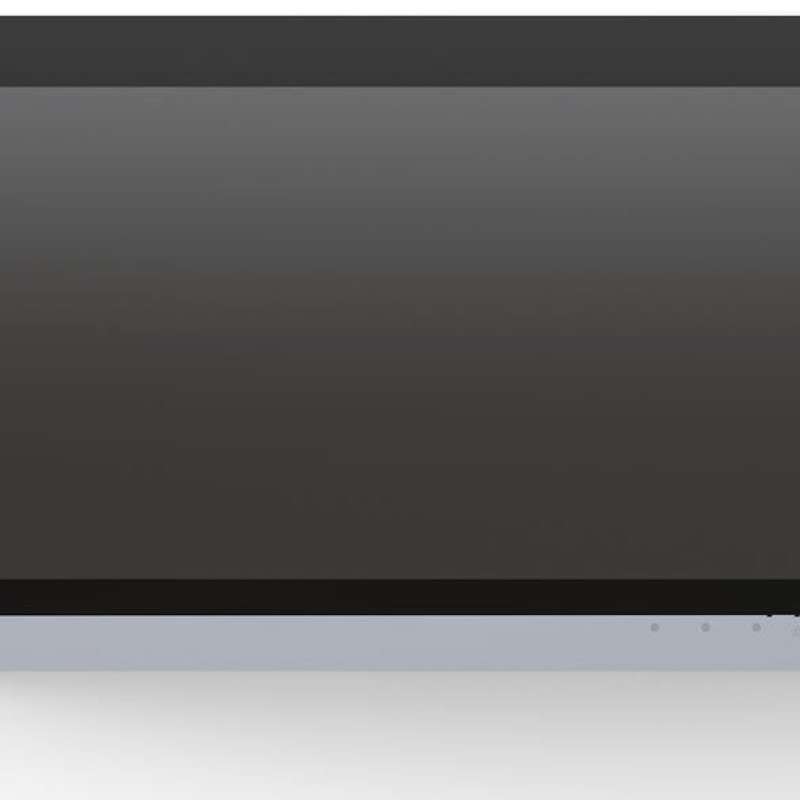

Description 762-5206/8000-001 Touch Panel 600;54.6 cm (21.5");1920 x 1080 pixels
PIO2 hardware configuration
- 2 x ETHERNET port for connecting to field devices and the engineering tool
- 2 x USB port for optional connection of a USB stick, mouse or keyboard
- Audio interface for connecting a headphone or loudspeaker
Main attributes 762-5206/8000-001 Touch Panel 600;54.6 cm (21.5");1920 x 1080 pixels
Connection data
Connection technology: communication/fieldbus
Modbus (TCP): 2 x RJ-45; 2 x USB 2.0 host (type A)
Connection technology: supply
1 x Included female connector (734-103) with three CAGE CLAMP® connections
Environmental requirements
Ambient temperature (operation)
0 … +45 °C (when mounted vertically; −0 … +40 °C, other mounting positions)
Ambient temperature (storage)
-20 … +60 °C
Mounting type
Clamping elements (included)
Note on protection type
IP65 (front side); IP20 (rear side), per EN 60529
Protection type
IP65
Relative humidity (without condensation)
90 %
Material data
Weight
5600 g
Mechanical data
Mounting type
Clamping elements (included)
Physical data
Depth
58 mm
Height
358 mm
Panel cutout (W x H)
(540 x 344) mm
Width
554 mm
Technical data
Brightness
350 cd/m2
Communications
Modbus TCP Master/Slave (prerequisite: e!RUNTIME PLC 600 license)
Contrast ratio
1000:1
Control Elements
capacitive (glass), 2 capacitive keys, proximity sensor
Data memory
128 MB
Display
Multitouch glass front; Capacitive touchscreen with a glass surface
Display colors
16.7 million colors
Display diagonal
54.7 cm (21.5 inches)
ETHERNET protocols
SSH
Graphics resolution
(1920 x 1080) px
Indicators
Three-color LED (red, green, blue)
Internal memory (flash)
4096 MB
Main memory (RAM)
2,048 MB
Operating power
7.9 W, without USB load; 13.4 W, with USB load
Operating system
Real-time Linux (with PREEMPT_RT patch)
Processor
ARM® Cortex® A9 Quad-Core 1.0 GHz
Program memory
32 MB
Programming environment
e!COCKPIT (based on CODESYS V3)
Supply voltage
24 VDC, SELV (18 … 31.2 V); with reverse voltage protection
Type of memory card
microSD (max. 2 GB); microSDHC (max. 32 GB)
Viewing angle (horizontal/vertical)
89° / 89°
Visualization
Web server
