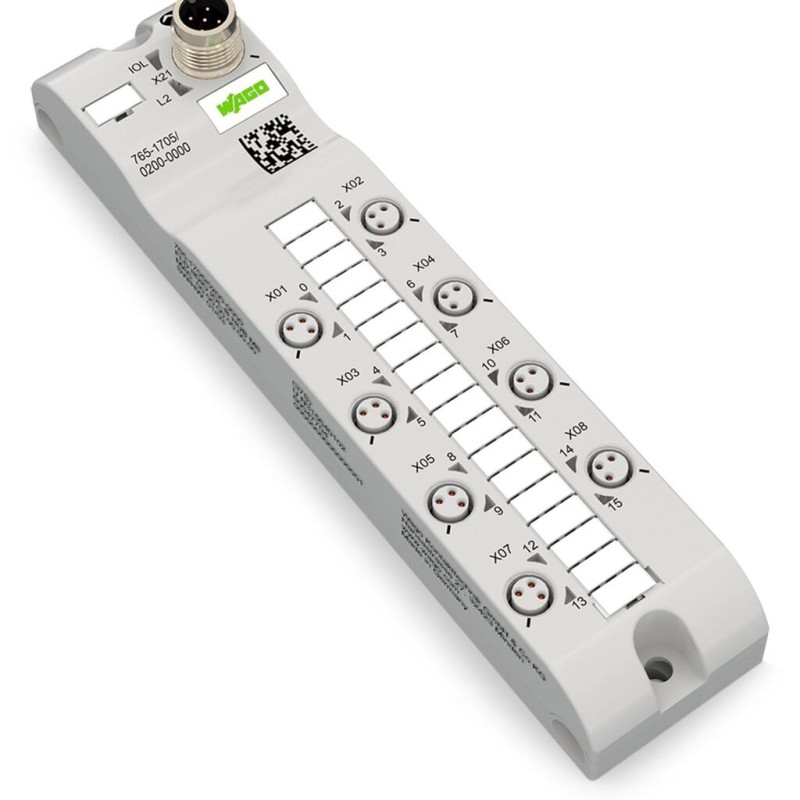

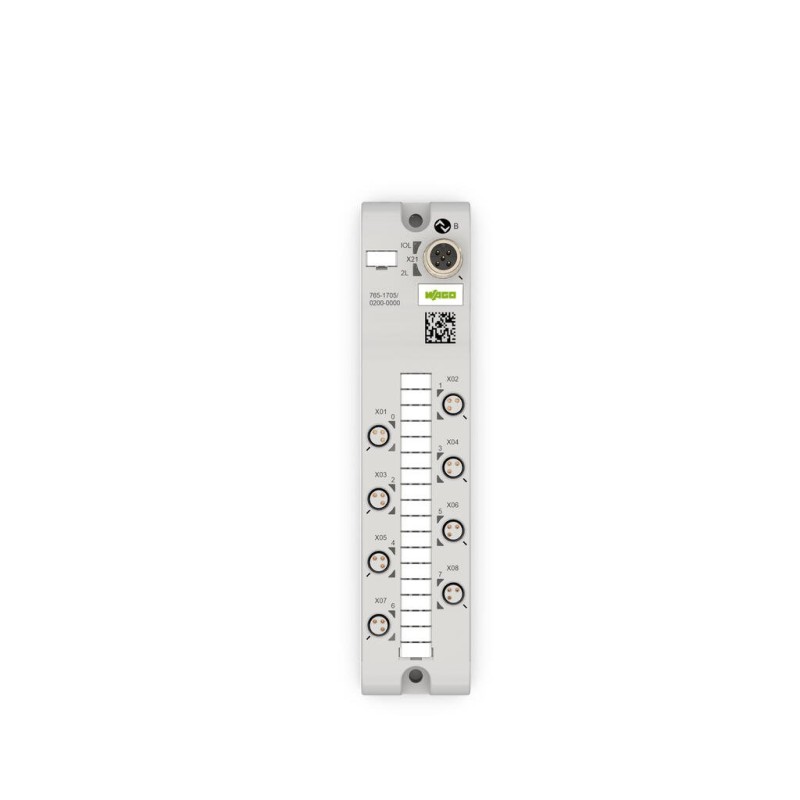

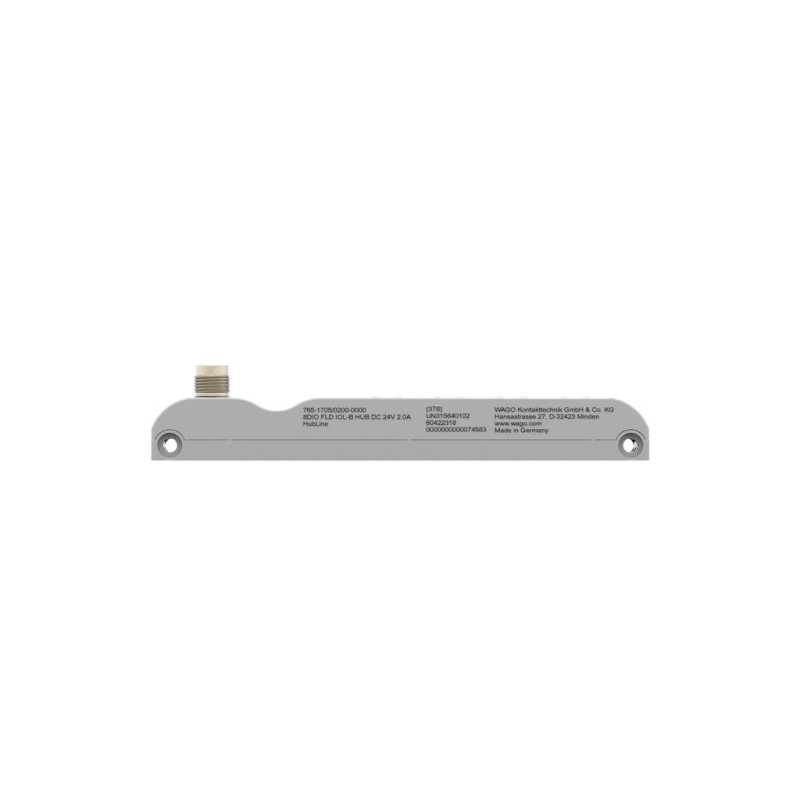

Description 765-1705/200-000 8-channel digital input/output;IO Link Class B Hub;DC 24 V / 2.0 A
Application:
Decentralized preprocessing and conversion/output of digital signals
This device controls digital field devices (e.g., actuators) and records digital signals (e.g., sensors) that are sent or received by a higher-level IO-Link master. The device is designed as a Class B hub and has eight digital inputs/outputs.
IO-Link:
The device has an IO-Link communication interface that requires an IO-Link master for interoperation.
The IO-Link interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation.
The IODD can also be https://ioddfinder.io-link.com downloaded via the IODDfinder.
Main attributes 765-1705/200-000 8-channel digital input/output;IO Link Class B Hub;DC 24 V / 2.0 A
Device functions
Diagnostics
Undervoltage; overcurrent; overload; overtemperature
Parameter
Temperature
Digital inputs/outputs
Connection technology: inputs/outputs
8 x M8; 3-pole
Input characteristic
Type 3, per IEC 61131-2
Input filter
0.2 … 20 ms
Number of digital inputs
8
Number of digital outputs
8
Output current (per channel)
2 A
Signal type (voltage)
24 VDC
Environmental requirements
Ambient temperature (operation)
-25 … +70 °C
Ambient temperature (storage)
-40 … +80 °C
EMC emission of interference
per EN 61000-6-4
EMC immunity to interference
per EN 61000-6-2
Operating altitude
0 … 2000 m / 0 … 6562 ft
Overvoltage category
II (EN 60664-1)
Pollution degree
3 (EN 60664-1)
Protection class
III per EN 61140, IEC 61140, VDE 0140-1
Protection type
IP67
Shock resistance
Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
Vibration resistance
5g per IEC 60068-2-6
IO-Link
Communications
IO-Link slave (class B)
Connection technology: communication / fieldbus
1 x A-coded M12; 5-pole
Mechanical data
Conformity marking
CE
Weight
120 g
Physical data
Depth
158.5 mm
Height
30 mm
Width
35 mm

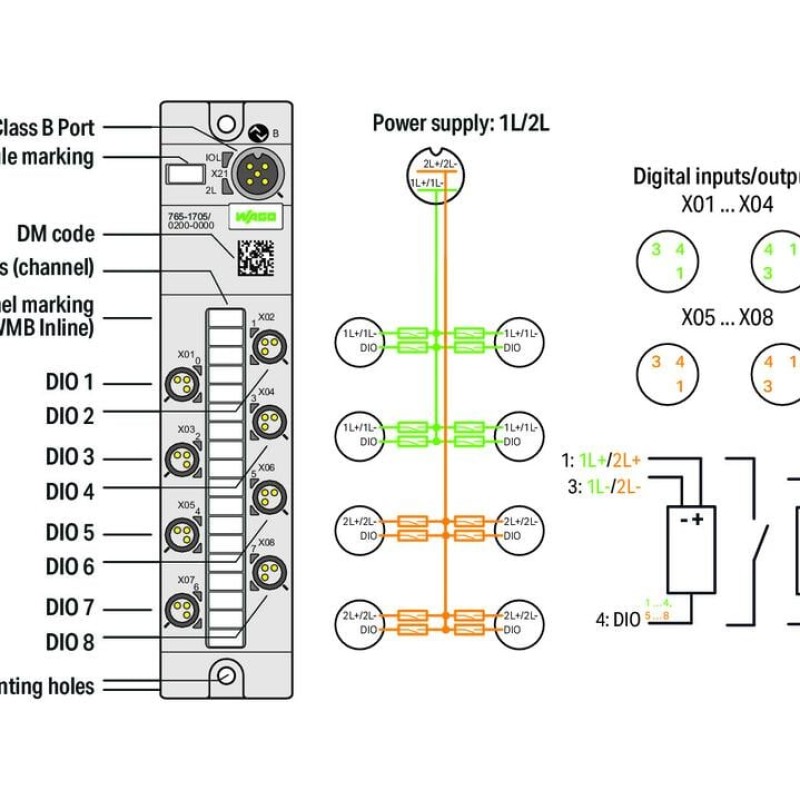

Power supply
Connection technology: feed
1 x A-coded M12; 5-pole; via IO-Link port (1L/2L)
Current consumption (max.)
4000 mA
Current consumption (note)
1L: 0.2 A; 2L: 0.1 A; + load current
Reverse voltage protection
Yes
Supply voltage
24 VDC (18 … 31.2 V); 1L/2L
