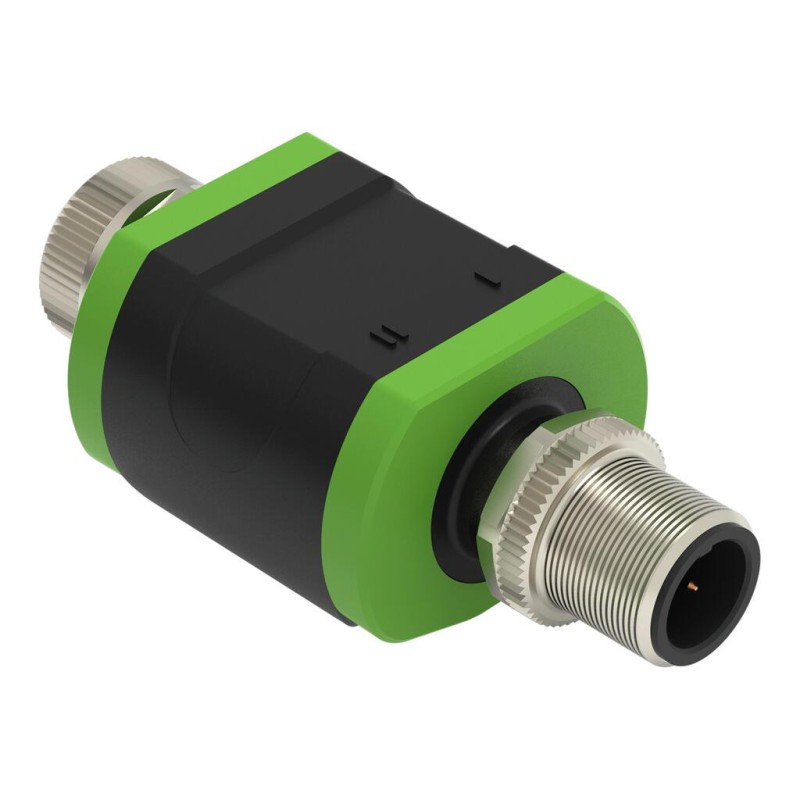

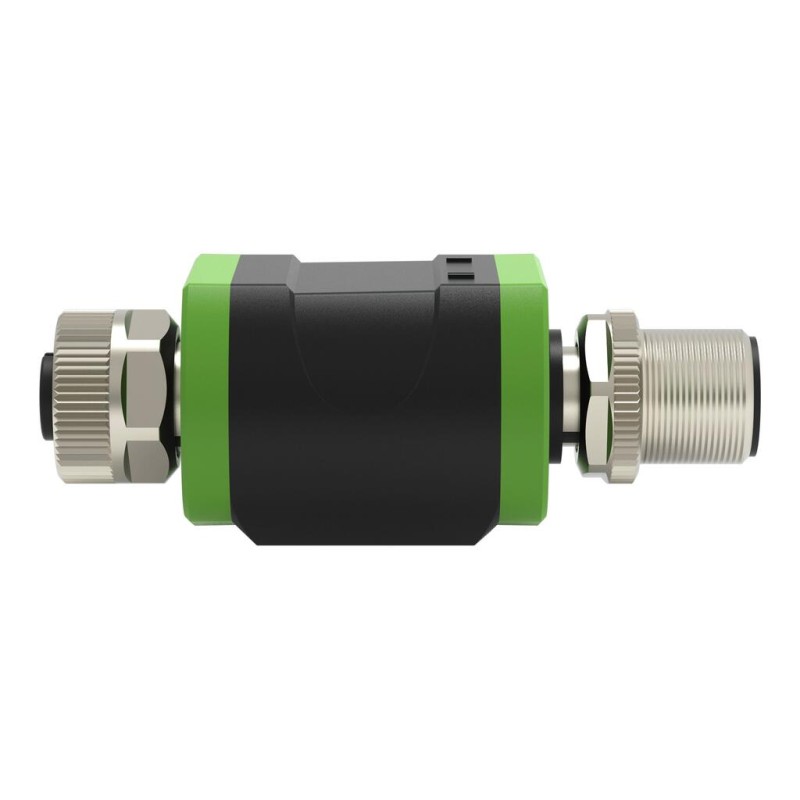

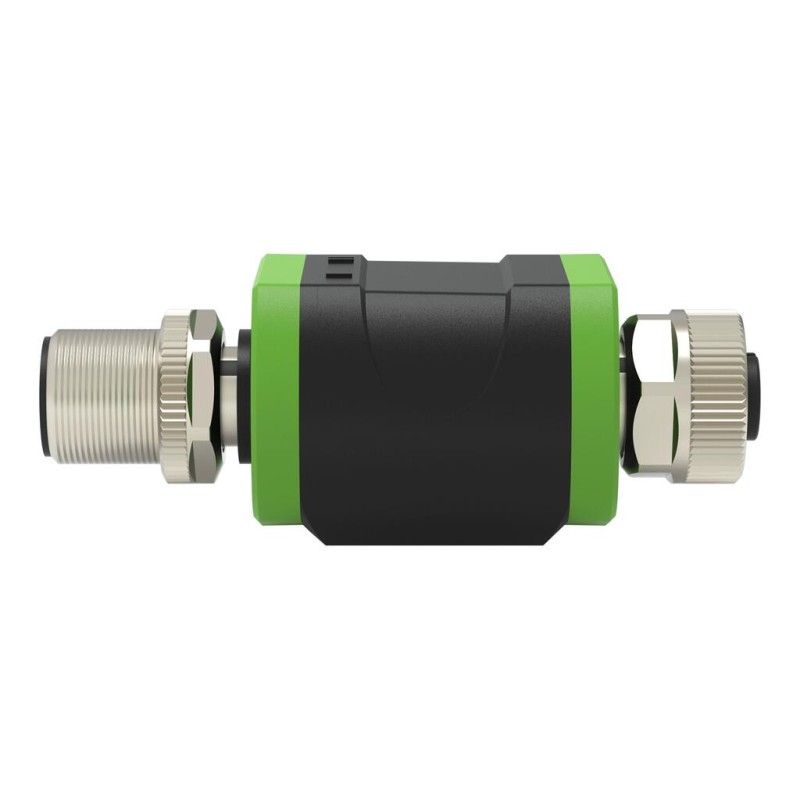

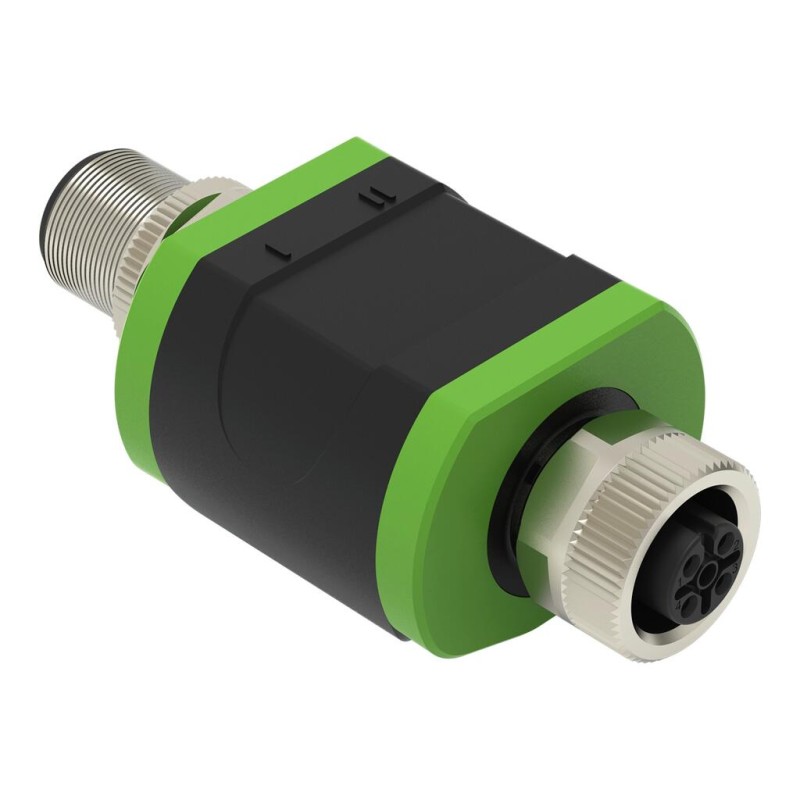

Description 765-2702/200-000 2-channel analog input;IO Link Converter;0-10 V
Application area:Decentralized pre-processing and conversion of analog signals
The device is used for signal acquisition of a connected sensor or
another device with an analog output (0 … 10 V).
The device has two analog voltage inputs.
Use as an IO-Link device:
The device has an IO-Link communication interface that requires an IO-Link-capable module (IO-Link master) for interoperation.
The IO-Link interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation.
Main attributes 765-2702/200-000 2-channel analog input;IO Link Converter;0-10 V
Connection data
Connection technology: inputs/outputs
1 x M12-A socket; 5-pole (inputs, double assignment); 1 x M12-A plug; 4-pole (IO-Link)
Environmental requirements
Ambient temperature (operation)
-25 … +70 °C
Ambient temperature (storage)
-25 … +70 °C
Operating altitude
0 … 4000 m
Pollution degree
2
Protection type
IP67
General information
Accuracy (+25 °C)
0.25 % of the upper-range value
Current consumption (max.)
380 mA
Indicators
Analog input: 2 x yellow LED; Power: 1 x green LED
Supply voltage
24 VDC (18 … 30 V)
Input
Current carrying capacity
Total inputs (max. 200 mA)
Input signal (voltage)
0 … 10 V
Internal resistance
100 kΩ
Number of analog inputs
2
IO-Link
Communications
IO-Link Class A/B
Cycle time
4.6 ms (min.)
IO-Link version
1.1
Parameterizable functions
Application-specific identifier, system identifier, location identifier, mean value filter
Process data
2 x 16-bit IN (analog)
Transmission modes
COM2 (38.4 kBaud)
Mechanical data
Conformity marking
CE; UKCA
Housing material
PA
Weight
92 g
Output
Signal type (voltage)
0 … 10 VDC
Physical data
Depth
24 mm
Height
63 mm
Width
30 mm
