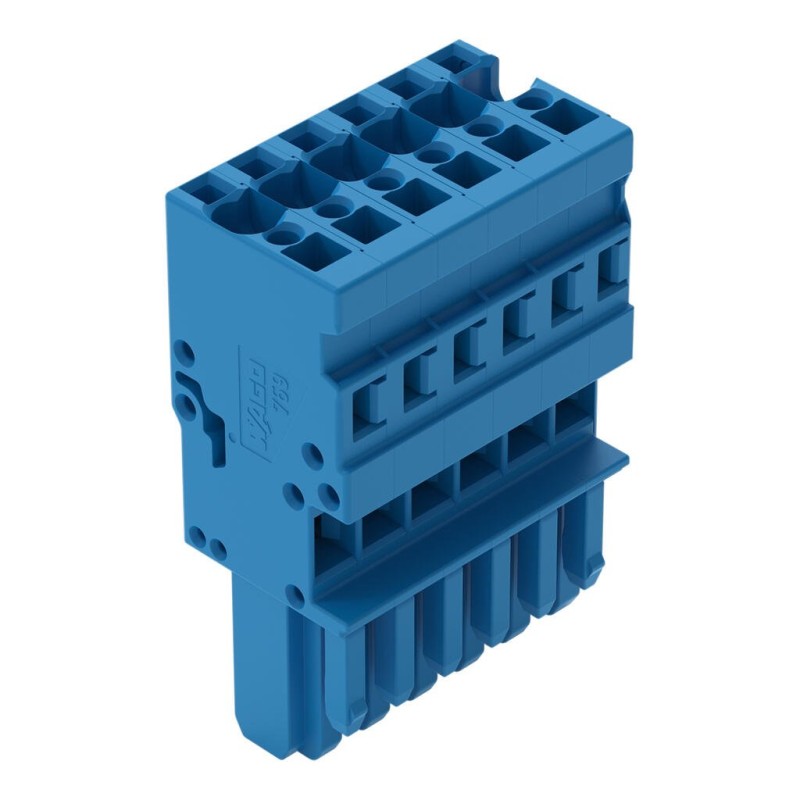

Description 769-106/000-006 1-conductor female connector;CAGE CLAMP®;4 mm²;blue

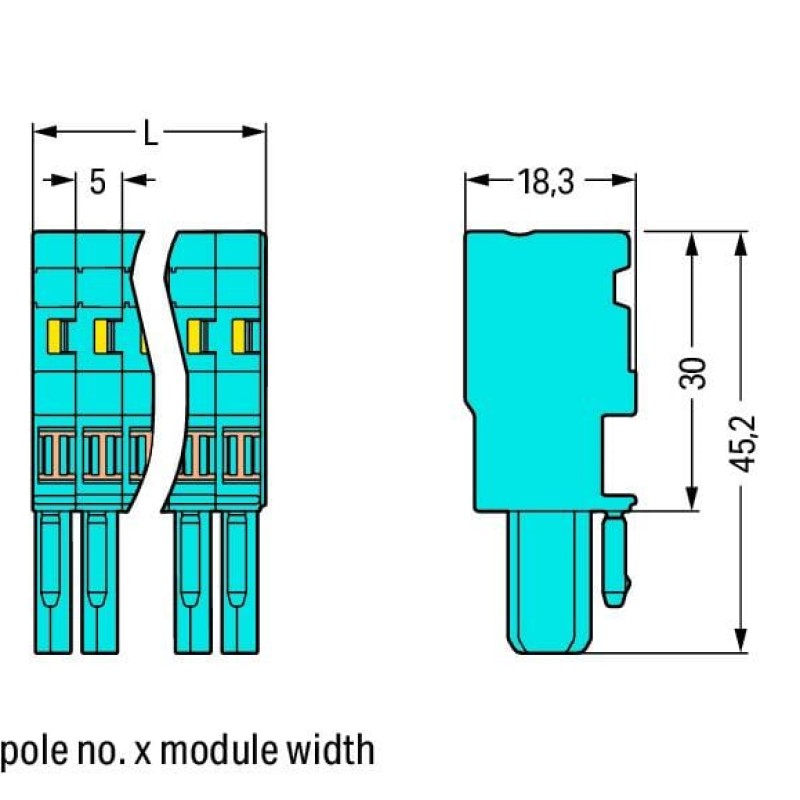

Our female connector (item number 769-106/000-006) is designed for seamless electrical installations. Conductors can only be connected to this female connector if their strip length is between 8 and 9 mm . Pluggable rail-mount terminal blocks are mainly used in switchgear units and control systems (e.g., in railroad technology). They are essentially a combination of rail-mount terminal blocks and pluggable connectors. You can also pre-assemble installations thanks to the variable wiring system. This saves both time and money during manufacture, installation, operation, and maintenance. This product features conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. The dimensions are (30 x 45.2 x 18.3) mm (width x height x depth). Depending on the type of conductor, this female connector is suitable for conductor cross sections ranging from 0.08 mm² to 4 mm².
This female connector/socket is operated with an operating tool.
Main attributes 769-106/000-006 1-conductor female connector;CAGE CLAMP®;4 mm²;blue
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 4 mm² / 28 … 12 AWG
Nominal cross-section
4 mm² / 12 AWG
Pole number
6
Solid conductor
0.08 … 4 mm² / 28 … 12 AWG
Strip length
8 … 9 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
6
Total number of potentials
6
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
blue
Fire load
0.411 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
19.6 g
Mechanical data
Anti-rotation protection
Yes
Direct ground contact to DIN-rail/drilled hole/housing
No
Marking level
Side marking
Variable coding
Yes
Physical data
Depth
18.3 mm
Height
45.2 mm
Module width
5 mm
Width
30 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Female connector/socket
Mismating protection
No
Plugging without loss of pin spacing
Yes
